VACBAG---"Final Prototype"__________Blog#8

sidastro

<<--Blog#7

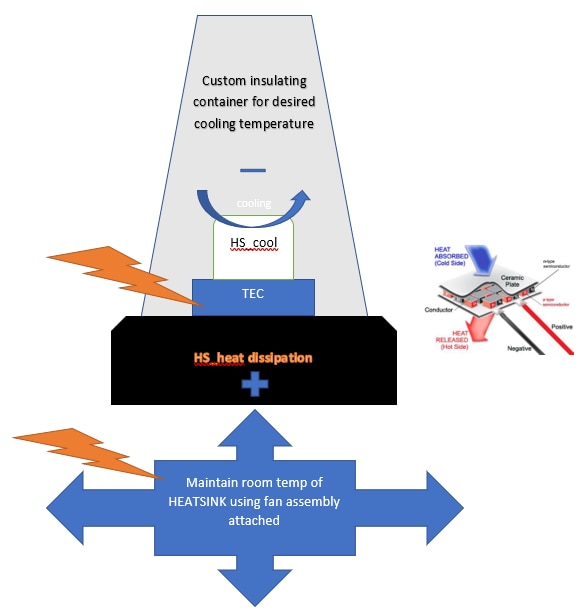

VACBAG   Portable Vaccine Box

(Application Of Thermoelectric Cooling)

--AS PRODUCT--





  • Embedded Hardware View with wiring


Vertically attached firmly to get Machine Learning models


  • Inside View

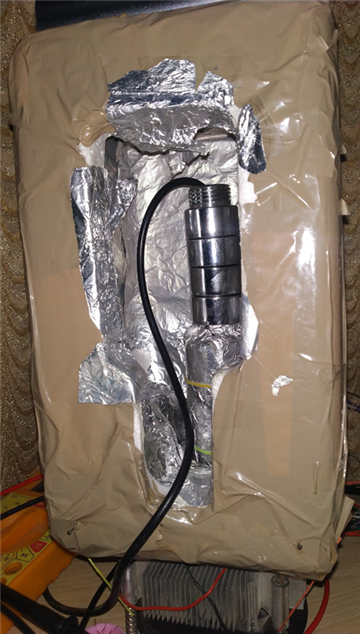

Digital Sensor inside water in glass tube covered aluminum foil with weight(above glass tube ) put on small-heatsink


  • Front view with door open

check this link for overview from top to bottom

VACBAG  Portable Vaccine Box (Application Of Thermoelectric Cooling) ----Blog#1 "Overview n Progress"


FABRICATION TABLE



Item

Dimension

TEC

3*3 side-wise

Container BOX

6*4*4 inch cube ,0.5inch thick

Heat sink (big-outer)

  1. 9.5*9.5*2.3 cm cube

Heat sink (small-inner)

  1. 3.7l*3.7b*2.7h(cm),42 fines

Fan

10cm diameter, 7fins







VACBAG   Portable Vaccine Box (Application Of Thermoelectric Cooling) ----Blog#1 "Overview n Progress"Blog#1
VACBAG "Overall Schematic"  Blog#2
VACBAG (IoT Dashboard Live Parameters) Blog#3
VACBAG-- SYSTEM CONTROL Blog#4
VACBAG 'CODE' Blog#5
VACBAG "Performance curves"Blog#6
VACBAG Machine Learning Model-Door_check || System ON || System OFF || System Anomaly Blog#7
VACBAG---"PRODUCT"Blog#8
