shabaz

I was browsing through an old issue of Wireless World (really old - 1978), and saw this advert:


It's not very clear how it works, although if you look at the diagram at the very bottom of the photo, to me it appears like the elastomer is like a thin rod poked through the hole, and perhaps the contacts are pushed around it...or maybe it is a sheet of elastomer with small holes in it, and it is glued onto the PCB, because it says 4mm on the diagram, and a PCB would usually be much thinner.

Anyway, it looked interesting!



Parents

  • Interesting discovery, thanks for sharing. I wish I had a speedwire board just as a collectors item Stuck out tonguehttps://en.wikipedia.org/wiki/Speedwire

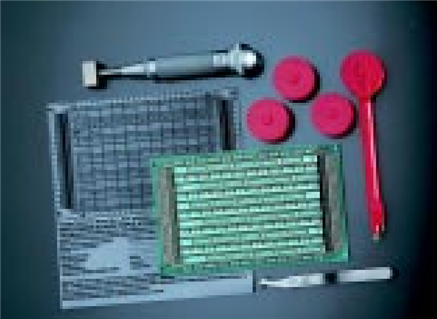

    This was the best photo I could find after a quick search


    https://docs.rs-online.com/e9b7/0900766b800270c2.pdf

  • in reply to scottiebabe

    Nice!
    It looks like IDC style pins like on the rear of phone jacks..

    If you could find a source for the metal contacts in IDC ribbon cable sockets, then those might work : )

    I really like Eurocard, I wish it was cheaper and more popular.
    A source for single-slot or double-slot+backplane enclosures would be nice too, but I can imagine those are not cheap.

    It's the perfect size for prototypes.. maybe even a half card or 2/3 option would be great.
    One thing I wanted to make (have not got around to it yet) is a Pi Pico board with just the Pico on it (and a few ancillary bits to make it easy to use, like power connector, space for voltage regulator etc, and a load of perfboard area, perhaps Eurocard size. It's fast become quite a popular microcontroller board for me, because it's in-stock : ) also easy to code with.

  • in reply to shabaz

    Yes exactly, and the pen just had a spool of 30 awg Kynar wire on top.


    Yes the eurocard was definitely large enough to contain an entire project on one card. I find the inexpensive 5cm x 7cm perfboards are often too small, but they are soo cheap lol.

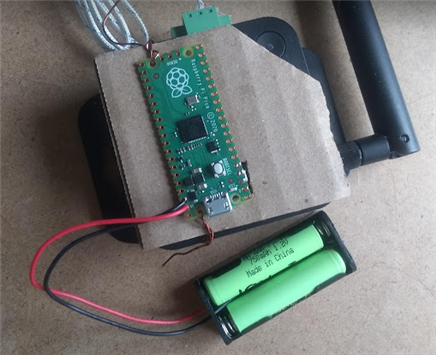

    I :heart the pico, it so easy to get a project started in micropython, and if you really do need performance you can always code in c if you want. For example I just wanted to blink an LED every 30 s, it was too easy to just grab a pi pico and write a few lines of python.


Reply
  • in reply to shabaz

    Yes exactly, and the pen just had a spool of 30 awg Kynar wire on top.


    Yes the eurocard was definitely large enough to contain an entire project on one card. I find the inexpensive 5cm x 7cm perfboards are often too small, but they are soo cheap lol.

    I :heart the pico, it so easy to get a project started in micropython, and if you really do need performance you can always code in c if you want. For example I just wanted to blink an LED every 30 s, it was too easy to just grab a pi pico and write a few lines of python.
