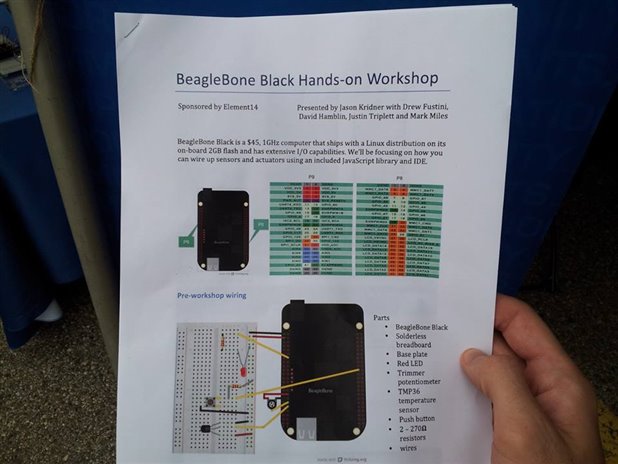

Attached to this blog post is the handout which was used in the element14 booth at Maker Faire Detroit 2013:
Sponsored by Element14
Presented by jkridner with fustini, element14Dave, Justin Triplett (i3 Detroit volunteer) and Mark Miles
(i3 Detroit volunteer)
BeagleBone Black is a $45, 1GHz computer that ships with a Linux distribution on its on-board 2GB flash and has extensive I/O capabilities. We’ll be focusing on how you can wire up sensors and actuators using an included JavaScript library and IDE.
It has four lessons which utilize Bonescript on the BeagleBone Black:
- Blink an LED
- Use button to set LED
- Use potentiometer to control LED brightness
- Read temperature using a TMP36 temperature sensor
Here's a quick video of what the workshop in our element14 booth looked like:
Photo gallery of our booth:
BeagleBone Black Workshop in element14 Booth at Maker Faire Detroit 2013
https://plus.google.com/photos/117542001281850354871/albums/5908664977334856401
Bill of Materials (BOM) for the workshop with Newark element14 SKUs:
SKU: 65W6016
Desc: BB-BBLK-000: DEV BOARD, AM3358/59 ARM MPU, BEAGLEBONE BLACK
Qty: 1
SKU: 53W6187
Desc: Adafruit 702: PROTO PLATE, BEAGLE BONE & BEAGLE BONE BLACK [does not come with breadboard]
Qty: 1
SKU: 53W6131
Desc: Adafruit 64: Half-size breadboard
Qty: 1
SKU: 38K0357
Desc: MULTICOMP - MCF 0.25W 270R - RESISTOR, CARBON FILM, 270 OHM, 250mW, 5%
Qty: 3 [should match qty for Red LED since this is the current limiting resistor]
SKU: 09J9321
Desc: Lumex LED, RED, T-1 3/4 (5MM), 250MCD, 660NM (it is diffused)
Qty: 3
SKU: 66W7458
Desc: Adafruit 1119 - Tactile Switch Buttons (12mm square, 6mm tall) x 10 pack
Qty: 1
SKU: 38K0327
Desc: MULTICOMP - MCF 0.25W 1K - RESISTOR, CARBON FILM, 1KOHM, 250mW, 5%
Qty: 10 [should match number of buttons since used as pull-up resistors for the buttons]
SKU: 19M9015
Desc: ANALOG DEVICES - TMP36GT9Z - IC, TEMPERATURE SENSOR, 3°C, TO-92-3
Qty: 2 [recommend 2 in case one is broken due to wiring it incorrectly and shorting it out
]
SKU: 53W5879
Desc: Adafruit 356: Breadboard trim potentiometer
Qty: 1
SKU: 53W6160
Desc: Adafruit 674: Beagle Bone - Sticker!
Qty: 1
Cheers,
Drew
UPDATE: Here's the page on beagleboard.org for the workshop with interactive bonescript demo and video tutorial:
http://beagleboard.org/makerfairedetroit2013
We'll be adding more video tutorials overtime that we shot (4 total).
