Trouble with Net Classes and the Schematic Editor

RE: Trouble with Net Classes and the Schematic Editor

csiemer — Thu, 22 Mar 2018 18:41:50 GMT

Thanks for the feedback.

I have added a section to the documentation to explain Net Class Directives and the ECO generation options.

RE: Trouble with Net Classes and the Schematic Editor

e14softwareuk — Wed, 21 Mar 2018 08:20:15 GMT

Hi Ryan, I've mentioned your idea for a documentation update to Altium.

RE: Trouble with Net Classes and the Schematic Editor

r.gibson — Wed, 21 Mar 2018 05:37:01 GMT

Works. Thanks Peter.

Would it be appropriate to update this help document to indicate that Net Classes should be added using your method?

Added Net Classes for PCB | Online Documentation for Altium Products

...This is what I was working off of, and had no idea about the Directives thing...

-R

RE: Trouble with Net Classes and the Schematic Editor

e14softwareuk — Mon, 19 Mar 2018 09:25:06 GMT

The net classes should be added on the schematic using a net class directive.

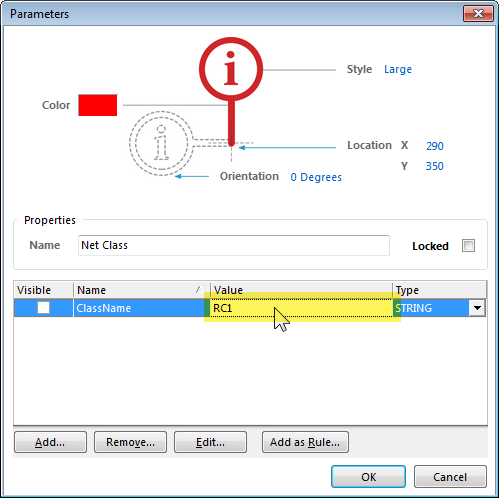

Once placed on a net you should edit the properties to give it a name.

You then update the PCB from the schematic document using Home | Project > Update PCB Document. Although net classes can be defined in the PCB editor they cannot be exported back to the schematic.
