Enroll to Review the Rohm Buck Converter Eval Kit BD9G500EFJ-EVK-001

Table of contents

Description

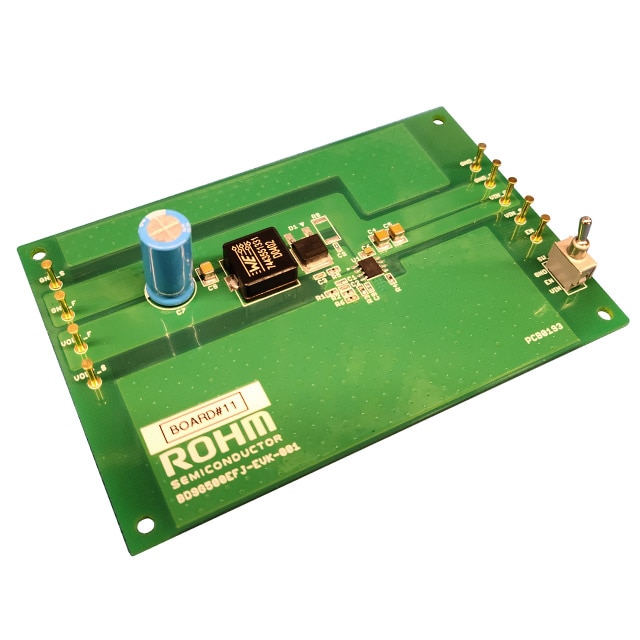

BD9G500EFJ-EVK-001 uses BD9G500EFJ-LA (Single Buck DC/DC Converter) to output 5V from a 48V input voltage. The input voltage of theBD9G500EFJ-LA is from 7V to 76V and the output voltage is configurable from 1V to 0.97 x VIN V with external resistors. The operating frequency is configurable between 100 kHz and 650 kHz with an external resistor connected to RT pin. This is a current mode control DC/DC converter that provides fast transient response performance and simple phase compensation setup. Built-in functions include variable soft start function which prevents inrush current at startup, UVLO (Under Voltage Lock Out), TSD (Thermal Shutdown Detection), OVP (Over Voltage Protection), OCP (Over Current Protection) and OVDIS (Over Voltage Discharge).

Applications

  • Industrial Equipment
  • Power Supply for FA
  • Communication Equipment
  • Battery Management System (BMS)


Note: The above schematic is from the user guide.


Documentation

Contents

Eval Board BD9G500EFJ

RoadTest Goals

Working with the documentation, open the box and test the out of the box experience. Show us what you discovered through text, images, videos, and/or any other media, so the reader understands what is involved in using the product.

Important Dates

Begin enrollment:  Sept 7, 2023
End enrollment:  Oct 12, 2023
Select roadtesters: Oct 14, 2023
Ship unit:  Oct 21 2023
Begin Roadtesting:  Oct 24 2023
Element14 follow up: Nov 24 2023
Post Reviews by: Dec 24 2023
