RoadTest: Seeking a Maker Engineer to Evaluate the Weller Micro Soldering Kit and Filtration Unit
Author: AngelSoto
Creation date:
Evaluation Type: Workshop Tools
Did you receive all parts the manufacturer stated would be included in the package?: True
What other parts do you consider comparable to this product?: JBC Solder, Yihua 982D solder station, Yihua 948D Q Fume Extractor
What were the biggest problems encountered?: No major issues were encountered. The system behaved consistently and reliably during testing. Any minor observations were part of normal usage and did not represent functional problems.
Detailed Review:
| Document Information | |
|---|---|
| Author | Ángel Soto Boullosa |
| Date | April 2026 |
| Revision | v1.0 |
A hands-on evaluation of a professional soldering and filtration system, including real-world testing, performance measurements, and comparison against a semi-professional baseline setup.
The Weller Micro Soldering Kit and ZeroSmog Guard filtration unit are designed to provide a professional-grade solution for precision soldering and effective fume extraction in electronics workbenches.
This RoadTest evaluates both systems as a combined workflow, focusing on real-world usability, soldering performance across different scenarios, and the effectiveness of fume extraction in a typical home lab environment.
The evaluation is not limited to isolated tests. Instead, the equipment is integrated into existing development workflows, including embedded systems prototyping, PCB assembly, and rework tasks.
From a baseline perspective, this review includes a direct comparison against a semi-professional setup currently in use. This allows identifying not only absolute performance, but also the practical differences an engineer or maker can expect when moving from a mid-range solution to a professional-grade system.
In addition to technical performance, particular attention is given to ergonomics, long-session usability, and air quality. This last aspect is especially relevant in this case, as the workspace is located in a home environment shared with family, where reducing exposure to soldering fumes becomes a priority rather than a secondary consideration.
The goal of this review is to determine whether the Weller solution represents a meaningful improvement in daily engineering workflows, and whether it justifies the transition from a hobbyist or semi-professional setup to a professional one.
The Weller Micro Soldering Kit and ZeroSmog Guard arrived in two well-protected packages, with all components properly secured to prevent damage during transport.
Figure 1 – Received packages and initial contents overview
The soldering kit includes the WT1M station, multiple handpieces (micro, pico and tweezers), dedicated holders, an automatic tip cleaner, a selection of tips covering different geometries, solder wire, and small handling tools for fine components.
The filtration unit package includes the ZeroSmog Guard system together with all required accessories for workstation integration, including flexible hose, nozzle, and mounting elements.

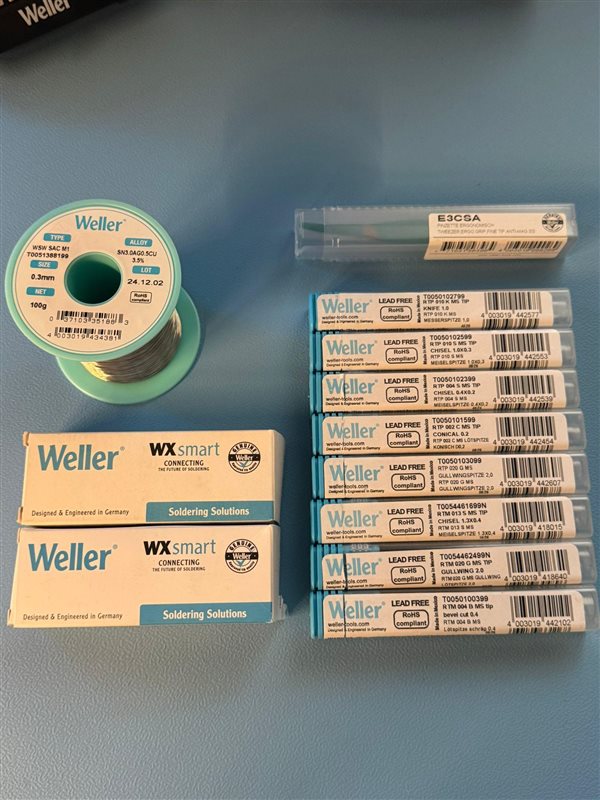

Figure 2 – Included consumables and tip selection
From the beginning, the kit clearly reflects a complete and ready-to-use professional setup, rather than a minimal or entry-level configuration.
This RoadTest is not only an isolated evaluation of the hardware, but also includes a direct comparison against a semi-professional setup currently used in my lab.
On a more personal note, one of the main motivations for this evaluation was to assess the impact of professional fume extraction on air quality, especially in a home environment shared with family.
From a system perspective, the evaluated setup can be divided into two main subsystems:
| Item | Description |
|---|---|
| WT1M station | Control and power unit |
| WTMP MS Micro handpiece | General precision soldering |
| WTPP MS Pico handpiece | Ultra-fine SMD work |
| WTMT Soldering tweezers | Rework and component removal |
| Tip cleaner | Automated cleaning system |
| Tips | Multiple geometries for different tasks |
| Item | Description |
|---|---|
| ZeroSmog Guard | Main filtration unit |
| Flexible hose | Airflow guidance |
| Nozzle | Localized fume capture |
| Mounting elements | Workbench integration |
| Item | Description |
|---|---|
| Solder wire | Sn96.5Ag3Cu0.5, 0.3 mm |
| Handling tools | Tweezers and small accessories |
The provided kit enables immediate operation without requiring additional purchases, reflecting a complete professional-grade solution rather than a minimal or entry-level configuration.
The first impression after unpacking both units is clearly positive. The packaging and presentation reflect attention to detail and a focus on delivering the equipment in perfect condition.
The soldering station requires virtually no setup beyond unpacking. The assembly of the safety rests is straightforward and intuitive. The provided manual is simple and easy to follow.
Once all components were unpacked, the full system was arranged on the workbench to evaluate footprint, layout, and ergonomics before powering on the units.

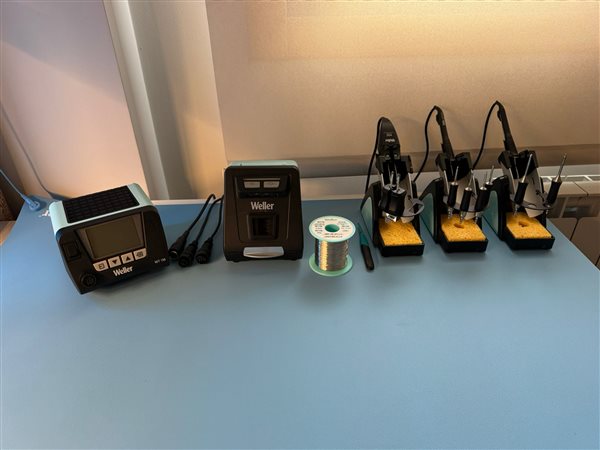

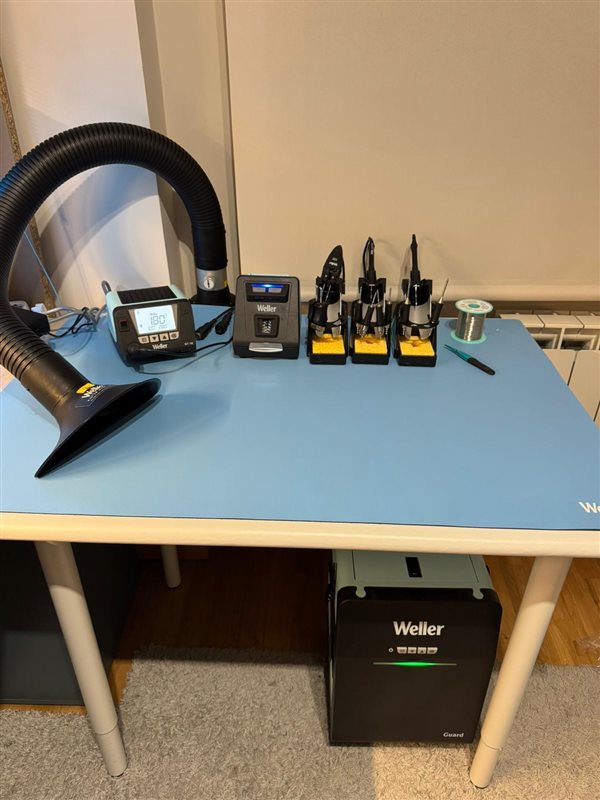

Figure 3 – Initial workbench setup before power-on
The WT station feels compact yet solid, with enough weight to remain stable during use.
The tip cleaning unit integrates naturally into the setup, providing a more stable and practical solution compared to simple sponge-based cleaning.
The handpiece holders are well balanced and provide good clearance, which is especially useful when working with multiple tools or frequently changing tips.
The ZeroSmog Guard unit presents a clean and robust industrial design.

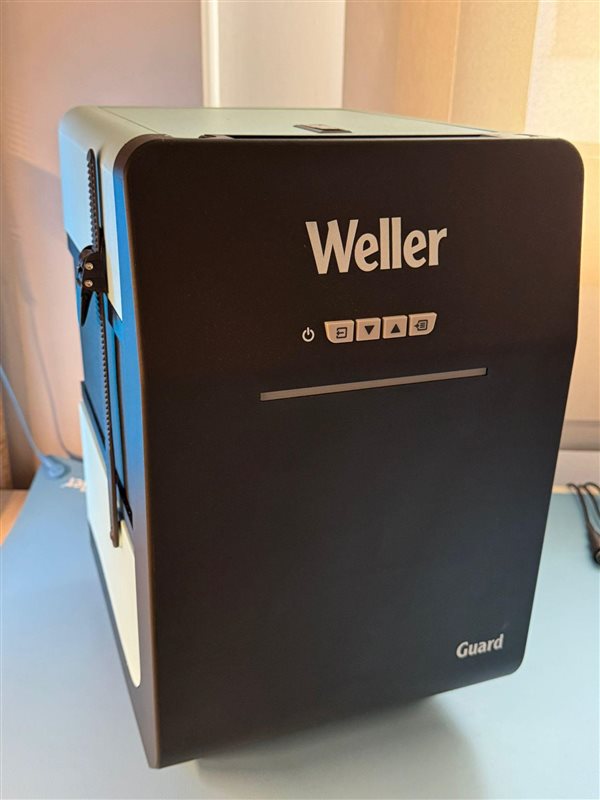

Figure 4 – ZeroSmog Guard front view
Figure 5 – ZeroSmog Guard rear view
The front panel is simple and functional, prioritizing ease of use. The rear panel provides access to power connections, flexible hose connector and technical specifications.
Overall build quality inspires confidence for continuous use in both professional and home lab environments.
Once the system was assembled, the initial power-up confirmed a smooth and straightforward startup process.
Figure 6 – Complete workbench setup with filtration system integrated
The station interface is clear and responsive, allowing quick adjustment of temperature and parameters without requiring prior familiarization.
From a workspace perspective, the arrangement feels natural and well balanced. The station, tip cleaner, and holders are positioned to minimize unnecessary hand movement.

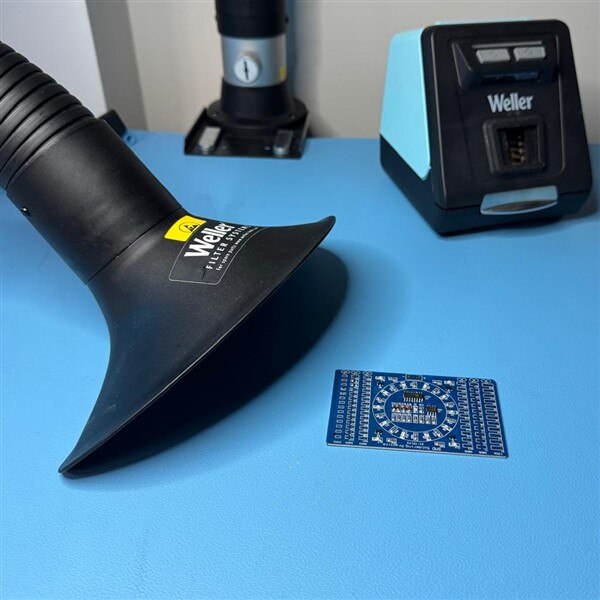

After integrating the ZeroSmog Guard, the filtration unit was placed under the bench, keeping the work surface clear.
Despite being out of direct view, the airflow is immediately noticeable, and the flexible hose allows precise positioning of the nozzle close to the soldering area.
In idle conditions, the unit produces a low and controlled noise level. It is audible but not intrusive, making it suitable for prolonged sessions.
At this stage, the system already demonstrates a well-thought-out ergonomic design.
The distribution of elements across the workbench feels balanced, with all critical tools within comfortable reach.
The integration of the filtration system without occupying valuable workspace area is particularly relevant, allowing a clean and efficient setup.
These initial observations suggest that the system is designed not only for performance, but also for sustained usability over long working sessions.
All tests were performed under typical home lab conditions using lead-free solder (Sn96.5Ag3Cu0.5, 0.3 mm diameter) on standard FR4 PCBs.
Heat-up time was measured using a stopwatch from power-on to reaching 350 °C. Observations on stability and recovery were based on practical soldering tasks, including both through-hole and SMD assembly.
All solder joints produced during this evaluation were inspected under a digital microscope and electrically verified using continuity measurements with a Promax PD-352 multimeter. No defects or inconsistencies were detected.

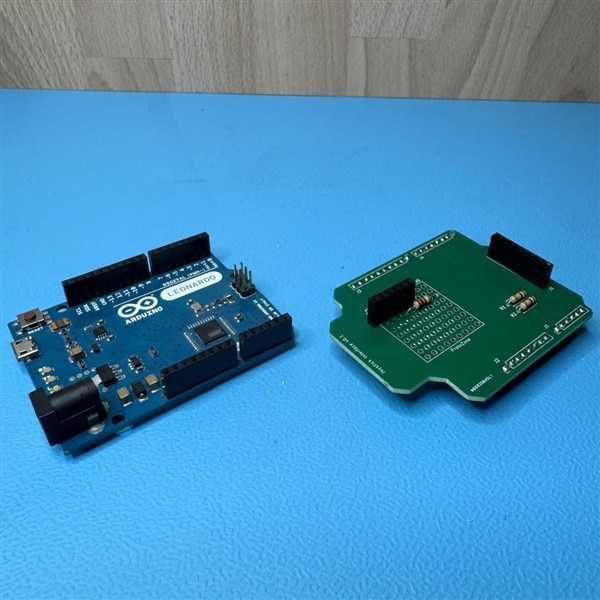

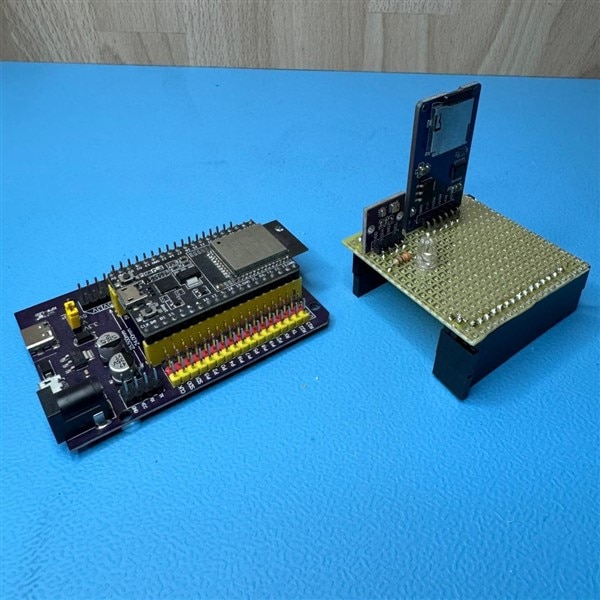

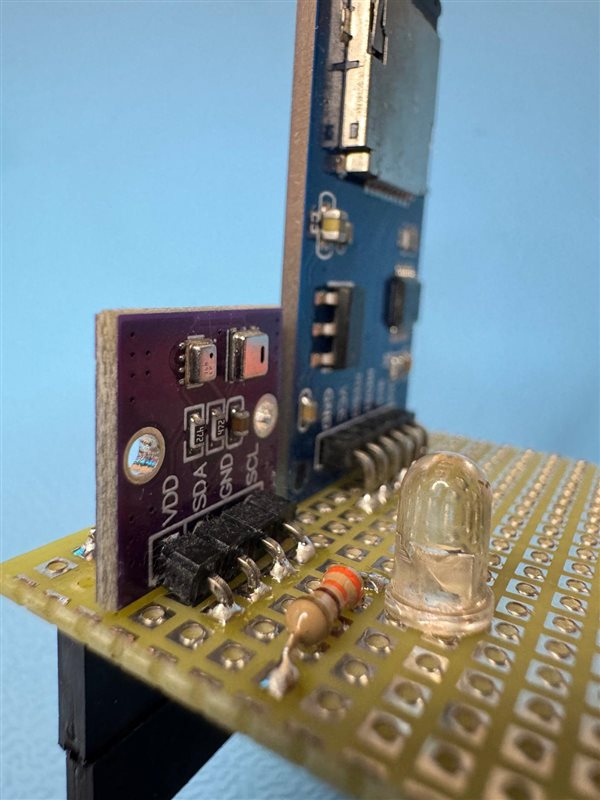

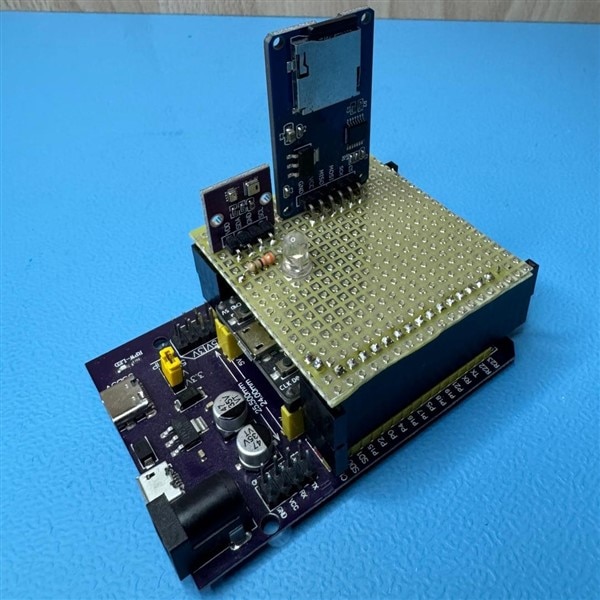

For practical validation, a custom PCB from the real project described in Section 6 was used for through-hole soldering tests, while a dedicated SMD training board was used for fine-pitch components (0603 / 0402) and tweezer-based rework operations.
For comparison purposes, results are contrasted against a semi-professional setup currently used in my lab, consisting of a Yihua 982D soldering station combined with a Yihua 948D-QI fume extractor.
Temperature measurements were performed using a PROMAX PD-352 multimeter with a standard K-type thermocouple. The thermocouple was placed in contact with molten solder on the tip to improve thermal coupling and measurement stability.

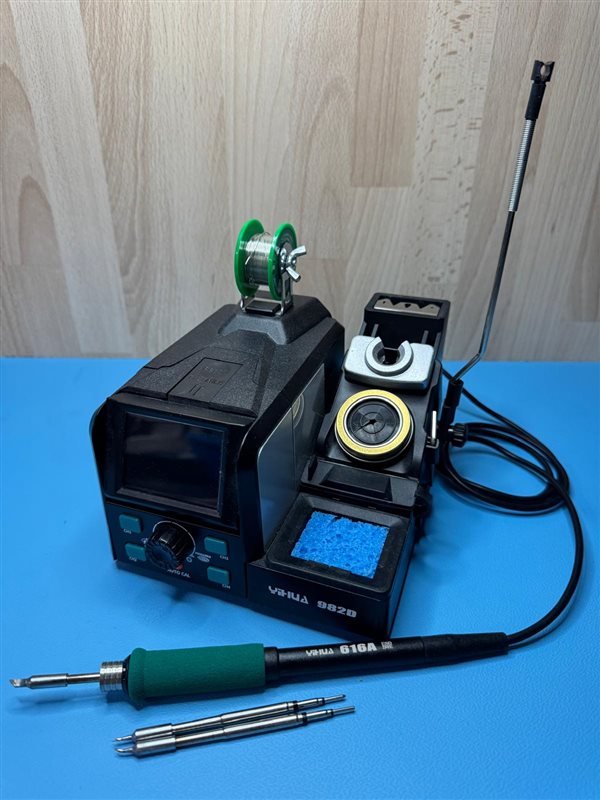

Figure 7 – Yihua 982D soldering station

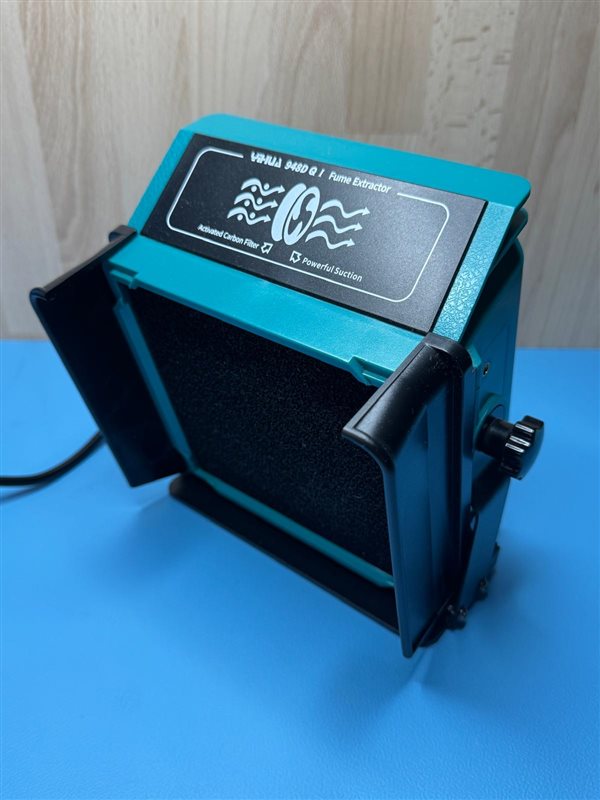

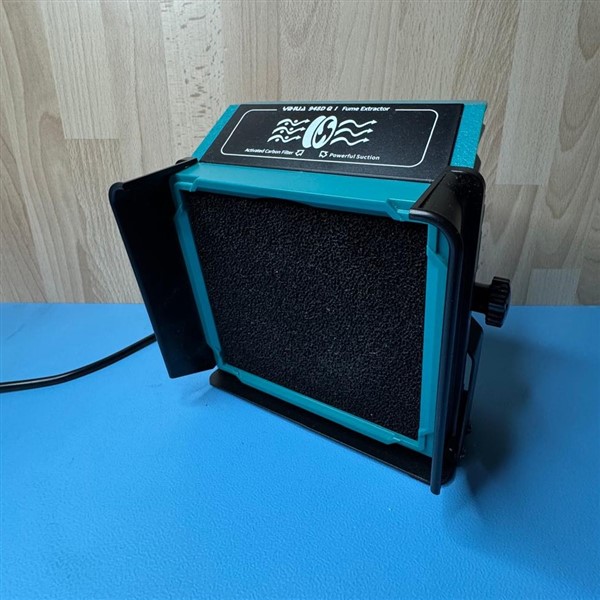

Figure 8 – Yihua 948D-QI fume extractor
This baseline setup represents a common mid-range solution typically used by hobbyists and makers, providing adequate performance for general tasks but with known limitations in thermal response and fume capture efficiency. This setup has been used regularly for embedded prototyping, PCB assembly, and rework tasks, providing a realistic baseline for comparison.
The heat-up performance was evaluated using the same procedure for both stations:
| Product | Heat-up Time (200 → 350 °C) |
|---|---|
| Yihua | 9.88-3.35 = ~6.5 s |
| Weller | 5.87-2.40 = ~3.5 s |
The Weller station reaches the target temperature significantly faster, resulting in reduced waiting time and a more fluid workflow.
Thermal stability was evaluated by maintaining the station at 350 °C for approximately 30 seconds after reaching the setpoint.
| Product | Stability (± °C) | Deviation from setpoint (± °C) |
|---|---|---|
| Yihua | ±5 °C | N/A |
| Weller | ±0 °C | -6 °C |

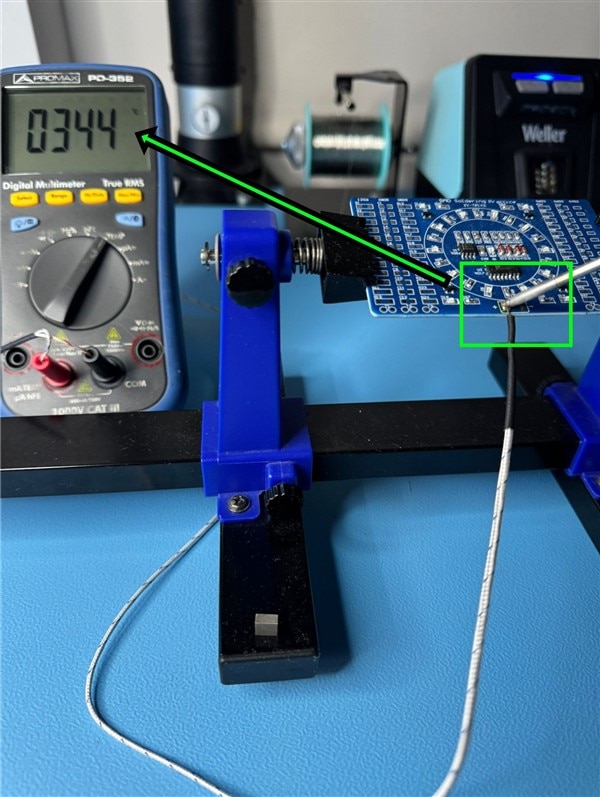

Figure 9 – Thermocouple measurement setup (Weller)
The Weller station maintains a very stable temperature profile with minimal observable deviation, indicating a well-tuned control loop.
Using the K-type thermocouple measurement, it can be observed that after a short stabilization period, the measured temperature converges closely to the value shown on the station display, within the deviation indicated in the table above.
The Weller station achieved a thermocouple measurement of approximately 344 °C while the setpoint was configured at 350 °C, resulting in a deviation of around −6 °C.
Regarding stability, and considering the resolution and limitations of the measuring instrument (PROMAX multimeter), the observed variation was effectively 0 °C, matching the stability indicated on the station display. This level of stability is notably high and suggests a very well-controlled thermal regulation loop.
It is important to highlight that the geometry of the soldering tip used during the test likely influenced the accuracy of the measurement. The Weller tip features an internal cavity that allows the thermocouple bead to be partially enclosed, improving thermal coupling and resulting in a measurement that is closer to the actual tip temperature.
In contrast, the baseline system shows more noticeable fluctuations, especially under thermal load. Measurements using the thermocouple indicate that, after stabilization, the actual tip temperature can deviate significantly from the value indicated on the device display.
The Yihua station presented measurements around 307 °C under similar conditions. However, this value is likely affected by measurement limitations rather than reflecting the true tip temperature. The chisel-shaped tip does not allow the thermocouple bead to be properly enclosed, leading to poorer thermal contact and therefore lower measured values.
Despite this limitation, once a maximum measurable temperature was reached, the Yihua station exhibited a variation of approximately ±5 °C based on thermocouple measurements, whereas the temperature indicated on the device display remained visually stable, showing no observable fluctuation.
Overall, these results reinforce that the Weller system implements a more refined temperature control loop, resulting not only in better stability but also in higher effective precision during real soldering operations.
Cool-down behavior was evaluated after stabilization at 350 °C by reducing the setpoint to 200 °C.
| Product | Cool-down Time (350 → 200 °C) |
|---|---|
| Yihua | ~58 s |
| Weller | ~25 s |
The Weller system shows a faster and more controlled temperature decrease, which is particularly useful when switching between high-temperature and sensitive operations.
From a workflow standpoint, these differences translate into:
Under real working conditions, the Weller station provides a significantly more responsive and stable thermal performance compared to the baseline setup.
Through-hole soldering was evaluated using a standard prototype PCB with connectors and passive components.
The Weller station provides a smooth and efficient soldering process. Heat transfer to pads and component leads is immediate, allowing proper wetting with minimal contact time.
Even on larger pads or ground-connected pins, the station maintains sufficient thermal power without noticeable delay.
Compared to the baseline setup: - Heat transfer is faster
- Required contact time is reduced
- Solder joints appear more uniform and controlled
This results in improved efficiency and reduced risk of overheating components due to prolonged contact.
Overall, for THD work, the station offers a clear improvement in both speed and control, even though this type of soldering is less demanding than fine-pitch SMD.

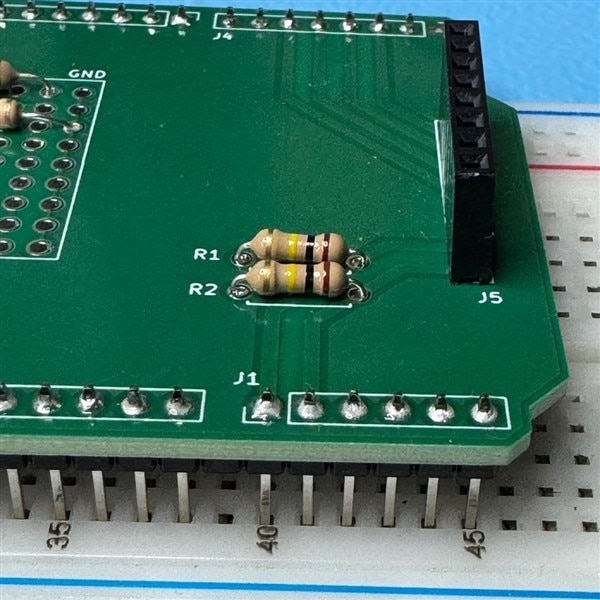

Figure 11 – THD soldering result

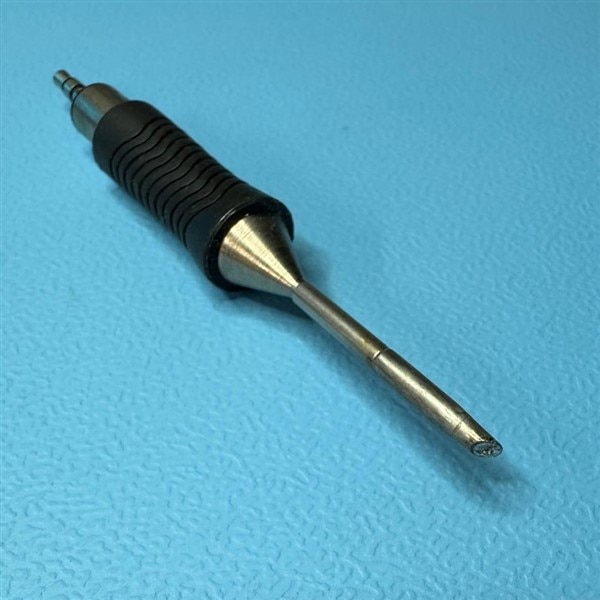

Figure 12 – Tip used
SMD soldering is where the advantages of the Weller system become most evident.
Tests were performed on components down to 0603 and 0402 packages using micro tips included in the kit.
The key observations are: - Excellent tip precision and control
- Very stable thermal behavior during contact
- Immediate response when applying solder
The reduced thermal mass and fast response of the system allow working on small pads without overheating adjacent components.
Compared to the baseline setup, the difference is significant: - Greater precision when positioning components
- Less risk of solder bridges
- More consistent results across repeated operations
In particular, when working with 0402 components, the system enables a high level of control and precision.
This is one of the areas where the transition to a professional-grade station clearly justifies itself.

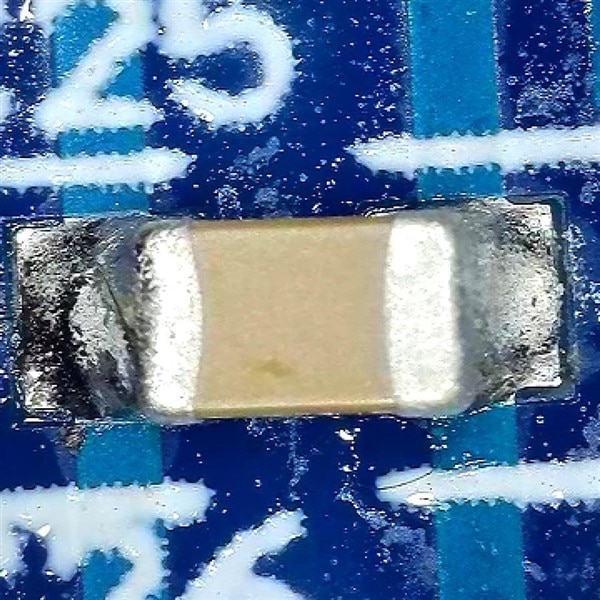

Figure 13 – SMD soldering (0603)

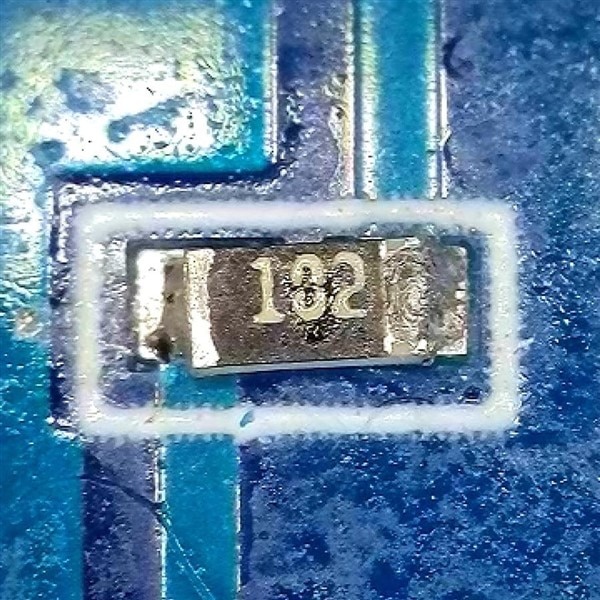

Figure 14 – SMD soldering (0402)

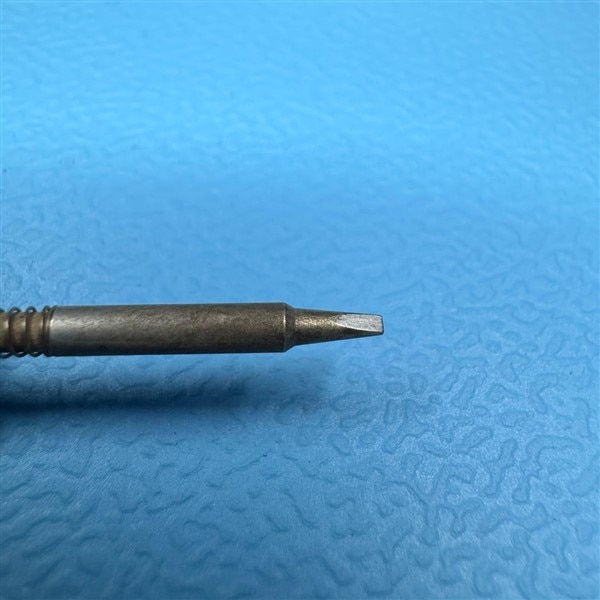

Figure 15 – Tip used for 0603 and 0402
The soldering tweezers were evaluated in rework scenarios using the same SMD training board employed for 0603 and 0402 soldering tests.
The tests focused on component removal, particularly on small passive components where simultaneous heating of both pads is required.
From an operational perspective, the tweezers provide a very controlled and efficient rework process: - Simultaneous heating of both pads enables clean component removal
- Minimal mechanical force is required, reducing the risk of pad damage
- The process is fast and repeatable
Compared to using a single soldering iron, the improvement is significant. Traditional rework requires alternating between pads or applying excessive heat, which increases the risk of overheating components or lifting pads.
With the tweezers, the component can be removed in a single controlled motion once both joints reach the appropriate temperature.

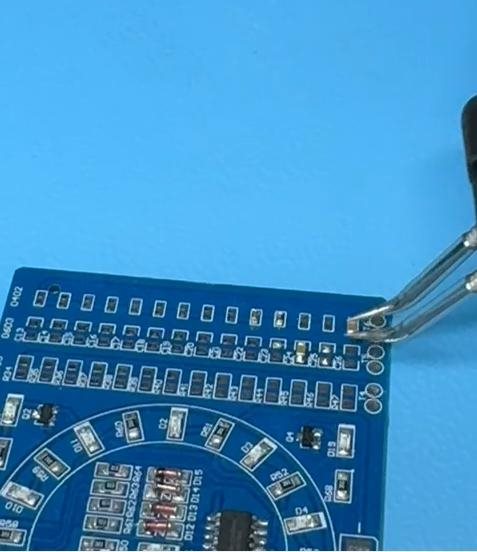

Figure 16 – Component removal using soldering tweezers
Thermal performance during use is consistent with the rest of the system: - Fast heat-up
- Stable temperature during contact
- Immediate response when load is applied
This ensures that both pads reach reflow temperature simultaneously, which is critical for clean removal.
From an ergonomic perspective, the tweezers are comfortable to use and well balanced. The grip allows precise positioning even on small components, and the operation feels natural after a short adaptation period.
Compared to the baseline setup, which lacks a dedicated rework tool, the difference is substantial: - Faster and cleaner component removal
- Reduced risk of PCB or component damage
- Improved repeatability in rework operations
In practical scenarios, this translates into: - More efficient debugging and rework workflows
- Safer handling of small SMD components
- Reduced stress during delicate operations
From a workflow standpoint, the soldering tweezers significantly enhance the system’s capability for SMD rework, complementing the precision and thermal performance observed in standard soldering tasks.
Continuous soldering tests were performed by assembling multiple components sequentially without pause.
Under these conditions, the Weller station shows excellent thermal recovery: - No noticeable drop in performance between joints
- Immediate return to set temperature after each contact
- Stable behavior even during repetitive operations
From an ergonomic perspective, this has a direct impact: - Reduced waiting time between joints
- More fluid workflow
- Lower fatigue during long sessions
The combination of fast recovery and stable temperature control makes the system particularly suitable for production-like tasks or extended prototyping sessions.
The Weller system is designed with a strong focus on usability and efficiency during daily operation, particularly when it comes to tip exchange and general maintenance.
Tip replacement is a critical aspect in precision soldering workflows, especially when switching between different tasks such as through-hole assembly and fine-pitch SMD work. In this regard, the system provides a fast and straightforward mechanism that minimizes downtime.

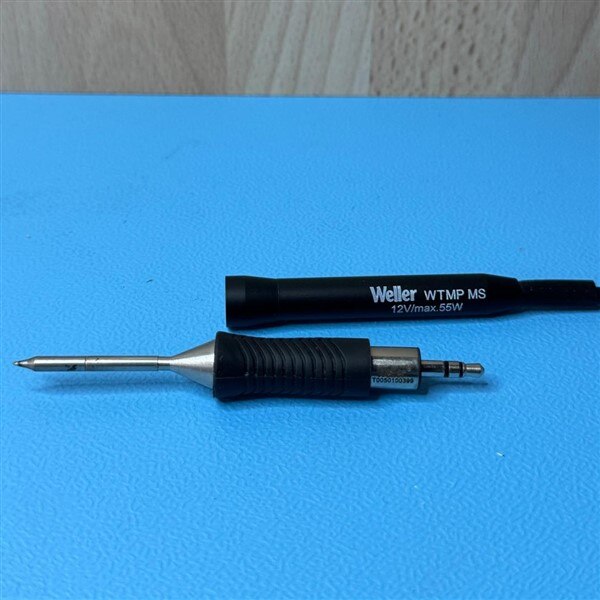

Figure 17 – Tip replacement on micro soldering iron
The process is intuitive and can be performed quickly without requiring complex tools. The mechanical design of the handpieces and holders allows safe handling even when the station is in regular use, reducing the need to interrupt the workflow.
A similar behavior is observed when changing tips on alternative handpieces, maintaining consistency across the system.

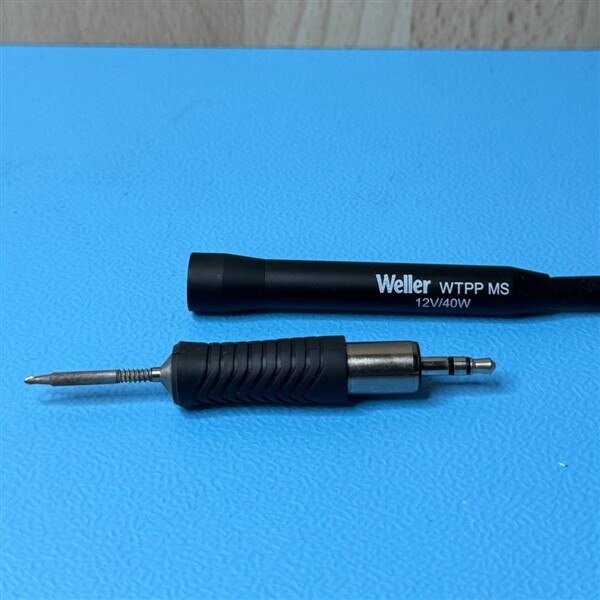

Figure 18 – Tip replacement on pico soldering iron
The tweezers tool, used for SMD work, follows the same philosophy, allowing efficient tip exchange while maintaining good mechanical stability.

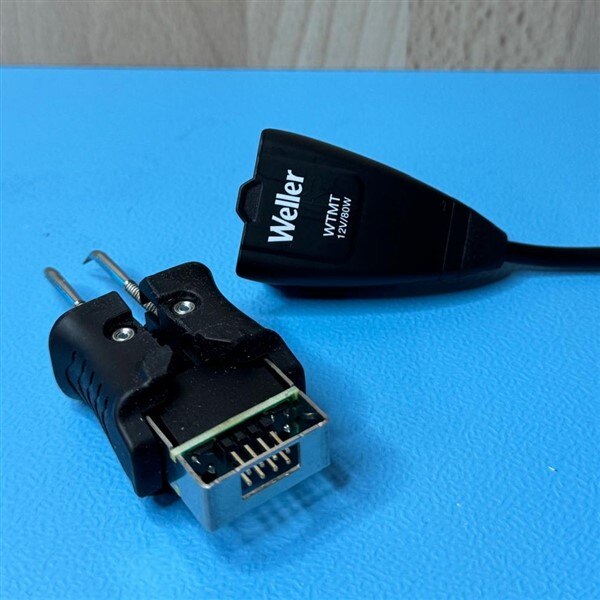

Figure 19 – Tip replacement on soldering tweezers
From a usability standpoint, this results in: - Reduced interruption time when switching between tasks
- Increased flexibility when working with mixed THD and SMD assemblies
- Improved overall efficiency during iterative prototyping
Compared to the baseline setup, the tip replacement approach differs significantly.
On the Yihua station, the tip uses a bayonet-style mechanism (similar to JBC systems), allowing very fast one-handed replacement. This makes the process particularly convenient during frequent tip changes.

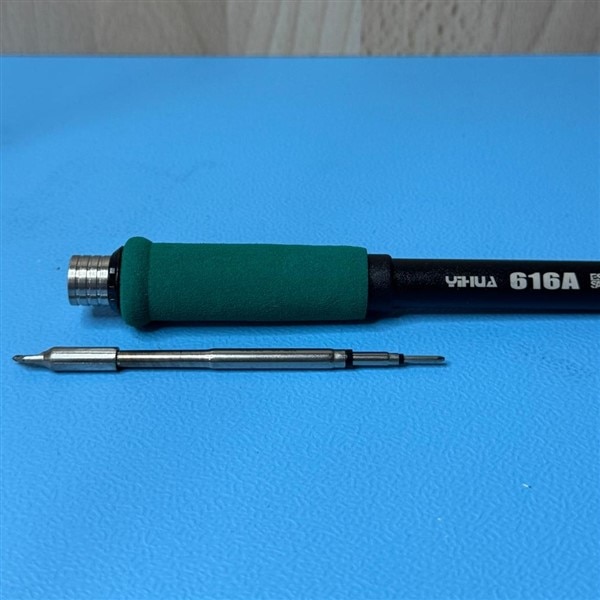

Figure 20 – Tip replacement on baseline soldering
In contrast, the Weller system requires the use of both hands for tip replacement. While the process remains safe and controlled, it is noticeably slower and less ergonomic than bayonet-based systems, especially in workflows requiring frequent tip changes.
Additionally, when handling hot tips, the thermal insulation is effective in avoiding direct burns by contact. However, the fingers remain relatively close to the tip area, which can feel less comfortable when the tip is at high temperatures (e.g., around 300 °C).
In real usage, this is not a limitation for occasional use, but becomes a clear drawback in intensive workflows where speed and one-handed operation are expected.
In terms of general maintenance, the system benefits from a well-designed set of holders and cleaning tools. The automatic tip cleaner contributes to maintaining consistent tip condition without requiring additional manual steps, helping preserve soldering quality over time.
From a system perspective, the tooling and maintenance aspects of the Weller system align with a professional workflow, although the tip replacement mechanism prioritizes safety and control, but at the cost of speed and fluidity, which may not meet the expectations of users accustomed to high-end quick-change systems.
The automatic tip cleaner is fully integrated into the workstation and designed to operate seamlessly within the soldering workflow.
Its operation is straightforward: the user inserts the soldering tip into the cleaning chamber, where the system automatically removes excess solder and residues using a motorized mechanism. The process is quick and requires minimal user interaction, allowing cleaning to be performed without interrupting the working rhythm.

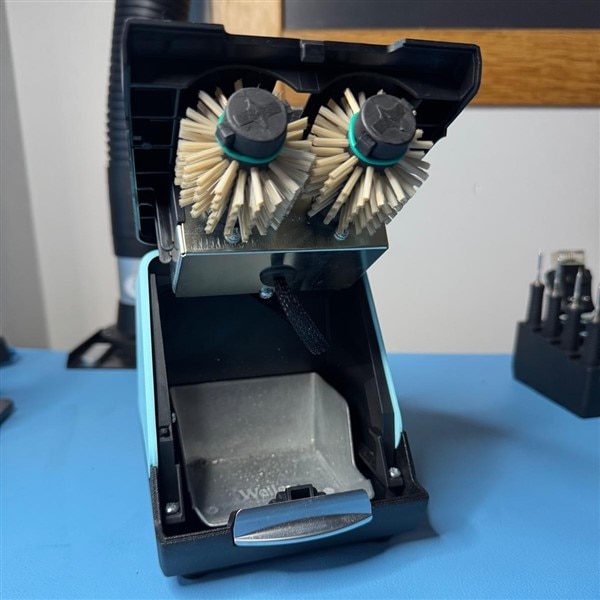

Figure 21 – Automatic tip cleaner integrated in the workstation
The system can operate in different modes, including automatic activation based on tip insertion detection and continuous operation mode.
The automatic mode activates the cleaner only when the tip is inserted, reducing unnecessary operation and noise. The continuous mode can be useful during intensive sessions where frequent cleaning is required.
Both modes are easy to use and adapt well to different working styles without adding complexity.
Compared to traditional cleaning methods, this approach eliminates the need for manual wiping or repeated contact with cleaning materials. The cleaning action is consistent and repeatable, helping maintain a stable tip condition throughout the session.
The performance of the automatic tip cleaner was evaluated during continuous soldering tasks, focusing on its impact on workflow efficiency.
The cleaning process is extremely fast, allowing the tip to be cleaned in a fraction of a second and enabling immediate continuation of soldering operations.
Unlike conventional methods using sponge or brass wool, there is no need to: - Pause and manually wipe the tip
- Reposition the hand to reach a cleaning element
- Perform multiple passes to achieve a clean surface
Instead, cleaning becomes a natural part of the soldering sequence.
Observed during testing, this results in: - Faster transitions between solder joints
- More consistent tip condition during long sessions
- Reduced accumulation of residues over time
This complements the thermal stability and responsiveness described in Section 3, ensuring that tip cleanliness does not become a limiting factor.
From a workflow standpoint, the system improves productivity by optimizing a repetitive but critical operation in the soldering process.
From an ergonomic perspective, the automatic tip cleaner is well integrated into the workstation layout, allowing easy and natural access during soldering tasks.
Its position enables cleaning with minimal hand movement, which is particularly beneficial during continuous work. The motion required feels intuitive and can be performed with a single hand while holding the soldering iron.
Compared to traditional methods such as sponge or brass wool, the automatic cleaner reduces repeated hand movements and repositioning, contributing to a more stable posture during extended sessions.
Another key aspect is interaction consistency: the cleaning process does not depend on pressure, angle, or user technique, reducing variability and making the experience more predictable.
In real usage, this translates into: - Reduced hand movement
- More natural workflow integration
- Improved comfort during long sessions
Maintenance of the automatic tip cleaner is straightforward and well aligned with regular usage.
Access to the internal components is simple, allowing quick inspection and cleaning. During operation, residues from solder and flux accumulate inside the chamber, which is expected.
Figure 22 – Automatic tip cleaner opened for maintenance
The system tolerates this accumulation without immediate performance degradation, but periodic maintenance is required to ensure consistent operation.
The replacement of cleaning elements is intuitive and does not require specialized tools. Additionally, general cleaning of the unit is simple, as the internal chamber is easily accessible for residue removal.
From a maintenance standpoint: - Maintenance operations are quick
- Access to internal components is easy
- Cleaning intervals are predictable
In practice, maintenance is minimal and well structured, making it easy to integrate into routine use.
The automatic tip cleaner represents a clear evolution compared to traditional cleaning methods used in mid-range setups.
In the baseline configuration, cleaning is performed using sponge and brass wool, both of which are effective but rely on manual interaction.
With a sponge: - Cleaning requires manual wiping
- Moisture can introduce thermal shock
- Effectiveness depends on user technique
With brass wool: - Faster and avoids thermal shock
- Still requires manual insertion and movement
- Cleaning consistency varies
In contrast, the automatic system provides: - Consistent and repeatable cleaning
- No dependency on user-applied force or motion
- Immediate cleaning integrated into workflow
Traditional methods introduce small but frequent interruptions that accumulate over time. With the automatic system, cleaning becomes part of the natural soldering flow.
From a workflow standpoint: - Cleaning is faster and more consistent
- Tip condition is more uniform
- Workflow interruptions are minimized
That said, traditional methods remain simple, low-cost, and effective for occasional use. The automatic cleaner introduces additional mechanical complexity and requires periodic maintenance.
From a system perspective, the automatic tip cleaner provides a clear improvement in efficiency and consistency, particularly in workflows involving continuous soldering or frequent tip cleaning.
The ZeroSmog Guard unit integrates naturally into the workspace, particularly when installed under the workbench. This placement helps maintain a clean and uncluttered working area while still providing effective fume extraction at the point of soldering.
Figure 23 – ZeroSmog Guard installation under the workbench
The flexible hose and nozzle system allows precise positioning of the airflow directly at the soldering point. This represents a clear improvement over basic extraction solutions, which typically rely on general airflow rather than localized capture.
From an operational standpoint, correct positioning of the nozzle is essential to achieve optimal performance, as capture efficiency depends strongly on distance and alignment with the fume source.
A particularly useful feature is the ability to connect the extraction unit directly to the soldering station via the RJ interface, enabling automatic activation during operation. This integration ensures that fume extraction is consistently active without requiring manual intervention.
Although this functionality is documented, it is not immediately evident during initial setup. Given its relevance in daily use, it would benefit from being more prominently highlighted in the documentation.
From an operational standpoint, correct positioning of the nozzle is essential, and the system integrates well into a typical electronics workstation, both physically and functionally.
Noise levels were evaluated using a smartphone sound meter application (NIOSH SLM) under comparable conditions for both the Weller unit and the baseline extractor. While absolute accuracy is limited, the measurements provide a consistent relative comparison between systems.
For reference, the ambient noise level in the test environment was approximately 29–30 dBA in a quiet room, increasing to around 34 dBA with a desktop PC running.
| State | Weller | Baseline |
|---|---|---|
| Ambient (no PC) | ~27.5 dBA | ~27.5 dBA |
| Idle | ~27.5 dBA | ~27.5 dBA |
| Active (Weller low power) | ~60 dBA | ~73.5 dBA |
| Active (Weller high power) | ~77.4 dBA | ~73.5 dBA |

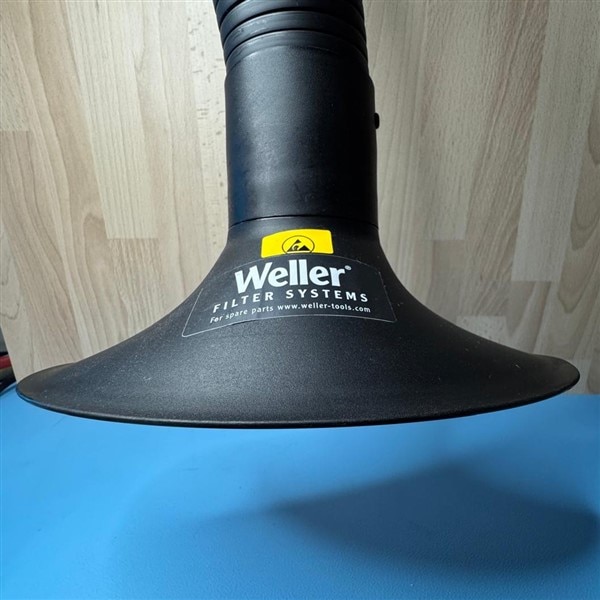

Figure 24 – Setup for noise measurement during operation (Weller)
In practice, both systems produce no audible noise when not actively extracting, behaving similarly to powered-off devices. The measured values in idle conditions are therefore effectively equivalent to ambient noise.
When active, the increase in noise level becomes clearly noticeable. The Weller system operates at a lower and more controlled noise level, particularly in low power mode, making it suitable for prolonged working sessions. The acoustic profile remains stable and non-intrusive, blending reasonably well with typical background noise in a home lab environment.
Figure 25 – Setup for noise measurement during operation (baseline)
In contrast, the baseline extractor becomes significantly more noticeable during operation. The higher noise level, combined with a less controlled acoustic profile, results in a more intrusive and fatiguing experience over time.
From a usability standpoint, this difference has a direct impact on user experience. The lower noise profile of the Weller system allows maintaining concentration during long sessions and reduces overall fatigue.
Additionally, the more controlled acoustic behavior makes the system better suited for home or shared environments, where continuous background noise can become a limiting factor.
Fume capture efficiency was evaluated during real soldering tasks by observing the behavior of smoke generated at the soldering point under different positioning conditions.

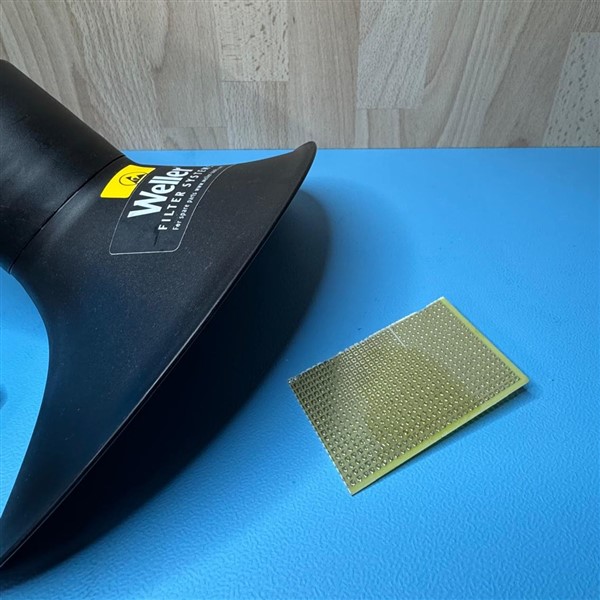

Figure 26 – Fume capture test during active soldering (Weller)
When the nozzle is positioned close to the soldering point (typically within a few centimeters), the system captures fumes effectively and removes them before they can disperse into the surrounding environment.
The directional airflow provided by the hose and nozzle enables localized extraction directly at the source, which represents a significant improvement over systems that rely on general air circulation.
Figure 27 – Fume capture test during active soldering (baseline)
In the baseline setup, fumes tend to rise and disperse more freely, while in the Weller system the airflow creates a more confined and directional extraction path.
In contrast, the baseline extractor lacks a focused capture mechanism. As a result, fumes tend to rise and disperse freely into the workspace before being partially removed, leading to visible smoke spread and reduced effectiveness at the source.
Observed during testing, the Weller system provides: - Immediate removal of visible fumes at the point of generation
- Minimal dispersion of smoke across the workspace
- Improved visibility during soldering operations
A key observation is that capture efficiency is strongly dependent on nozzle positioning. Small variations in distance and alignment can significantly affect capture efficiency.
When the nozzle is correctly positioned: - Fumes are captured almost instantly
- Air remains visually clean around the working area
When positioned further away: - Capture efficiency decreases
- Smoke begins to disperse before extraction
This behavior highlights the importance of proper setup and positioning as part of the workflow.
At a system level, the solution demonstrates a clear advantage over general-purpose extractors, providing effective source-level fume capture that significantly improves working conditions.
While the system is primarily evaluated through visual observation, these simple measurements provide a practical quantification of the observed differences between both systems.
In order to complement the qualitative observations, a set of simple quantitative tests were performed to evaluate fume capture behavior under controlled conditions.
The following aspects were considered:
Distance vs Capture Efficiency
When the nozzle is positioned at approximately 2–3 cm from the source, fumes are captured almost immediately, with minimal visible lateral dispersion.
At distances greater than 8–10 cm, capture efficiency decreases significantly, and smoke begins to disperse before being extracted.
Smoke Dispersion Time
Without extraction, visible smoke typically remains in the workspace for approximately 2–3 seconds before dissipating.
With the Weller system properly positioned, smoke is removed in less than 1 second, with minimal lateral dispersion under typical working conditions.
Visual Airflow Behavior
A simple visual test using solder smoke shows that the Weller system creates a clearly defined airflow path, guiding fumes directly toward the nozzle.
In contrast, the baseline extractor allows smoke to rise and spread before partial capture occurs, resulting in a wider dispersion area.
These observations, while not obtained using laboratory-grade instrumentation, provide a consistent and practical comparison between both systems under real working conditions.
From an ergonomic perspective, the flexible hose system provides a high degree of positioning freedom, allowing adaptation to different soldering scenarios and workbench layouts.
The ability to place the nozzle precisely near the soldering point reduces the need for body repositioning and helps maintain a stable and comfortable working posture during extended sessions.
Figure 28 – Nozzle positioning during soldering at table level
Figure 29 – Nozzle positioning during soldering at PCB level
The system allows quick adjustments of the nozzle position, making it easy to adapt to different PCB sizes, component densities, and working angles. This flexibility contributes to a more natural integration into the workflow.
However, as observed during testing, the hose is noticeably too flexible, which directly affects positional stability during operation. This makes it difficult to maintain a stable nozzle position without frequent readjustments, especially during precise soldering tasks.
Experimentally, slightly compressing and twisting the hose increases its stiffness and improves positional stability. While this workaround is effective, a stiffer hose design would significantly improve usability, particularly in low-noise operation modes where airflow is reduced.
Despite this, the system provides a clear ergonomic improvement over baseline extractors, which typically lack any directional control and require the user to adapt their posture or working position to compensate for limited extraction effectiveness.
One of the most relevant aspects of this evaluation is the impact of fume extraction on air quality, especially in a home lab environment shared with family.
During testing, the use of the Weller filtration system resulted in a noticeable reduction in the presence of soldering fumes in the workspace. Unlike the baseline setup, where fumes tend to disperse before being captured, the ZeroSmog Guard removes them directly at the source.
Although no formal air quality measurements were performed, the qualitative difference is clearly observable under test conditions: - Reduced visible smoke accumulation
- Improved breathing comfort during and after soldering
- Lower perceived exposure to fumes in the surrounding environment
- Reduced persistence of soldering odor after each session
This improvement is particularly relevant in enclosed or shared environments, where uncontrolled fume dispersion can quickly affect overall air quality.
From a usage perspective, effective source-level extraction not only improves comfort during operation, but also may contribute to reducing operator exposure to soldering fumes, although no quantitative air quality measurements were performed in this evaluation.
From a system perspective, the filtration system represents a significant upgrade over typical hobbyist solutions, particularly in scenarios where air quality is a priority rather than a secondary concern.
Maintenance of the filtration system is centered around periodic inspection and replacement of the internal filter elements.
Figure 30 – Internal filter compartment
Figure 31 – Internal filter
Access to the filter compartment is straightforward, allowing quick replacement without requiring specialized tools. The procedure is simple and can be completed in a short time, making it easy to integrate into regular maintenance routines.
During operation, the filters progressively accumulate soldering residues and airborne particles, which is expected. Over time, this leads to a gradual reduction in filtration efficiency, making periodic replacement necessary to maintain optimal performance.
From a maintenance standpoint: - Filter replacement is quick and accessible
- No complex disassembly is required
- Maintenance can be performed without interrupting the workflow for extended periods
Compared to basic extraction systems, where maintenance is often limited or less structured, the ZeroSmog Guard provides a more defined and predictable maintenance model.
Although this introduces a recurring consumable element, it is consistent with professional-grade filtration systems, where maintaining air quality depends on proper filter condition.
In practice, the maintenance process is simple, predictable, and aligned with regular use, ensuring long-term performance without adding significant operational overhead.
To evaluate the system in a realistic development scenario, an ESP32-based project was used as a test platform.
The project consists of an indoor environmental monitoring node, where an ESP32 serves as the main processing unit. The current implementation is based on a breadboard setup, with several modules already validated and others planned for integration.
The objective of this phase is to transition from a breadboard prototype to a more stable and maintainable solution using a custom shield built on a perforated prototyping board.
The planned board integrates multiple functional elements: - Header pins for interconnection with the ESP32 breadboard setup
- Environmental sensors (AHT20 and BMP280) for temperature, humidity, and pressure measurements (already integrated)
- A status LED with a current-limiting resistor for alarm indication (already integrated)
- An SD card module for data logging (already integrated)
This setup represents a typical embedded prototyping workflow, combining validated modules with new functional blocks under integration.
Figure 32 – ESP32 prototyping setup and custom board (assembled)
Figure 33 – ESP32 prototyping setup and custom board (dissembled)
During assembly, the Weller system provided precise control when working on the perforated board, where pad definition and spacing require careful handling.
From a process perspective: - Connections are clean and well-defined, even in densely wired areas
- Fine control allows accurate placement of headers and discrete components
- Minimal rework was required during assembly
The improved thermal stability also reduces the time required to complete each joint, which is particularly beneficial when working with mixed components and repeated connections.
Additionally, when soldering modules such as the SD card interface, which involve multiple pins and signal integrity considerations, the ability to work quickly and precisely helps avoid potential issues related to overheating or poor joint quality.
Figure 34 – Detail of soldered connections
From a development workflow standpoint, this results in: - Faster transition from prototype to semi-permanent hardware
- Improved reliability of connections compared to breadboard wiring
- Reduced need for iterative rework during integration
In real usage, the system proves particularly useful in prototyping stages where multiple components must be integrated progressively, requiring both precision and repeatability.
To further evaluate the system under realistic conditions, a custom PCB was assembled as part of an embedded robotics project.
The board is a custom-designed shield for an Arduino Leonardo, integrating multiple functional blocks: - An input connector for an analog joystick, including four push buttons and two potentiometers
- Analog signal conditioning using pull-down resistors connected to the microcontroller inputs
- Standard shield connections to interface directly with the Arduino
- A prototyping area used to integrate a Bluetooth module via UART (TX/RX), without dedicated routing in the PCB
This setup represents a typical mixed-use board, combining analog inputs, digital signals, and manual prototyping elements, making it a good candidate to evaluate soldering performance across different scenarios.
Figure 35 – Custom Arduino Leonardo shield (overview) (assembled)
Figure 36 – Custom Arduino Leonardo shield (overview) (dissembled)
During assembly and rework tasks, the Weller system demonstrated a high level of precision and thermal control.
From a process perspective: - Joints are clean, well-defined, and consistent
- Fine control allows accurate work on closely spaced pins
- No excessive solder spread or bridging was observed
One of the most relevant observations is the thermal behavior when working on ground-connected pins and larger copper areas. In these cases, no lack of power was observed, and the station maintained stable performance without requiring extended contact time.
At the same time, the short dwell time on pads reduces the risk of overheating components, particularly in sensitive areas such as analog inputs or closely packed connectors.
Figure 37 – Detail of solder joints
Figure 38 – Tip used for assembly
From a development standpoint, this translates into: - More precise and repeatable soldering results
- Reduced need for rework
- Lower fatigue during extended assembly sessions
In real usage, the system provides a noticeable improvement when working on custom embedded hardware, particularly in mixed-signal boards where both precision and thermal control are required.
The following table summarizes the main differences observed between the baseline setup and the Weller system during real usage.
| Aspect | Previous Setup | Weller |
|---|---|---|
| Precision | Medium | High |
| Comfort | Medium | High |
| Fatigue | High | Low |
| Air Quality | Low | High |
In real usage, the differences are clearly noticeable across all aspects of the workflow.
The improvement in precision and thermal stability directly impacts soldering quality, while the integration of the automatic tip cleaner reduces interruptions during operation.
Additionally, the filtration system significantly improves air quality and overall comfort, particularly during extended sessions.
From a system perspective, the Weller system enables a more fluid, controlled, and sustainable working experience compared to the baseline setup.
From an engineering perspective, the Weller system provides a clear improvement in both workflow quality and operational consistency.
For professional users, the advantages are immediately noticeable. The combination of fast thermal response, stable temperature control, integrated tip cleaning, and effective fume extraction enables a more controlled and predictable working environment. This directly translates into higher quality solder joints, reduced rework, and improved efficiency during both prototyping and small-scale production tasks.
For makers and hobbyists, the system represents a significant step forward compared to typical mid-range setups. While basic soldering tasks can be performed with simpler equipment, the benefits of improved ergonomics, reduced fatigue, and better air quality become increasingly relevant during longer sessions or more complex projects.
One particularly relevant aspect is the reduction of friction in the workflow. Features such as the automatic tip cleaner and the integrated fume extraction do not introduce new capabilities, but they optimize repetitive operations that are present in every soldering task. Over time, this has a measurable impact on productivity and user comfort.
From a learning perspective, the system also enables more precise work on small components and dense PCBs, which can be challenging with less stable equipment. This can be especially valuable for users transitioning from hobbyist-level projects to more advanced embedded or hardware development.
From a system perspective, it aligns well with both professional and advanced hobbyist workflows, providing tangible improvements without introducing unnecessary complexity.
In summary, the system not only improves soldering performance, but also enhances the overall development experience by reducing friction in everyday tasks.
While detailed analysis is provided in the previous sections, this summary highlights the practical differences observed during testing.
The following table summarizes the key differences observed between the Weller system and the baseline setup across the main evaluation criteria.
| Metric | Weller | Baseline |
|---|---|---|
| Heat-up time | ~3.5 s | ~6.5 s |
| Cool-down time | ~25 s | ~58 s |
| Thermal stability | High (low deviation) | Moderate (visible fluctuation) |
| Temperature accuracy | Close to setpoint | ~20 °C deviation observed |
| SMD precision | High (0402 capable) | Limited control |
| THD performance | Fast and controlled | Adequate |
| Rework capability | Excellent (tweezers) | Limited |
| Tip cleaning | Automatic, consistent | Manual (sponge/brass) |
| Noise (active) | Moderate / controlled | High / intrusive |
| Fume capture | Localized, immediate | Dispersed, delayed |
| Ergonomics | High | Medium |
| Workflow efficiency | High | Moderate |
| Ease of tip change | Moderate (two hands) | High (one-hand) |
| Maintenance | Structured, predictable | Basic |
The Weller Micro Soldering Kit combined with the ZeroSmog Guard filtration unit represents a clear step up from typical mid-range soldering setups.
The improvement is not limited to isolated performance metrics, but extends to the overall working experience. Faster thermal response, improved stability, integrated tip cleaning, and effective fume extraction work together to create a more fluid and controlled workflow.
In practical terms, this results in higher quality soldering, reduced rework, and improved comfort during extended sessions. The impact of proper fume extraction is particularly relevant in home or shared environments, where air quality becomes an important factor.
While some aspects such as hose stiffness and tip replacement ergonomics could be improved, these do not significantly affect the overall performance of the system.
For users working regularly on electronics projects—especially those involving fine-pitch components, iterative prototyping, or long sessions—the benefits are immediately noticeable.
Overall, the system justifies its positioning as a professional-grade solution, providing meaningful improvements in both performance and usability compared to standard hobbyist or semi-professional setups.
From an engineering standpoint, the improvement is not incremental, but systemic.
