Smart car chamber Submission-- Smart Car Ambient Lighting Control System Project

12 Nov 2025

1. Project Overview

1.1 Project Background

This project designs and implements an Arduino-based intelligent car ambient lighting control system that integrates multiple lighting scene modes, brightness adjustment, proximity sensing control, and other functions, providing an intelligent and personalized lighting solution for automotive interior spaces.

1.2 System Features

Multiple Lighting Scenes: 5 switchable lighting effects
Intelligent Gesture Control: Hand gesture switching via ultrasonic sensor
Adjustable Brightness: 5-level brightness adjustment for different environments
Energy Efficient: Automatic on/off and low-power design

2. System Components

2.1 Hardware Components List

Component	Specification	Quantity	Purpose
Arduino Zero		1	Main Controller
WL-ICLED Strips	WL-ICLED LEDs	3 strips × 5 LEDs	Ambient Light Source
WS2816 Single LED	Individual control	1	Auxiliary Indicator
HC-SR04 Ultrasonic Module	Detection range 2-400cm	1	Proximity Detection
Buttons	6×6mm momentary	2	Brightness/Power Control

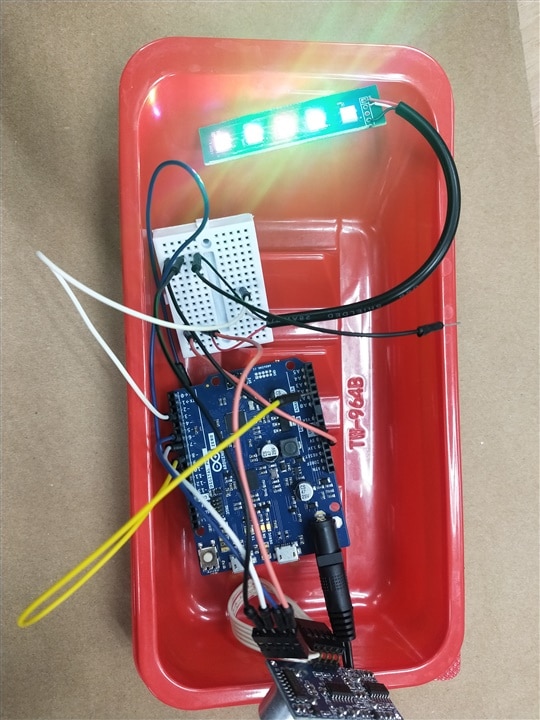

Demo Frame- Car Chamber

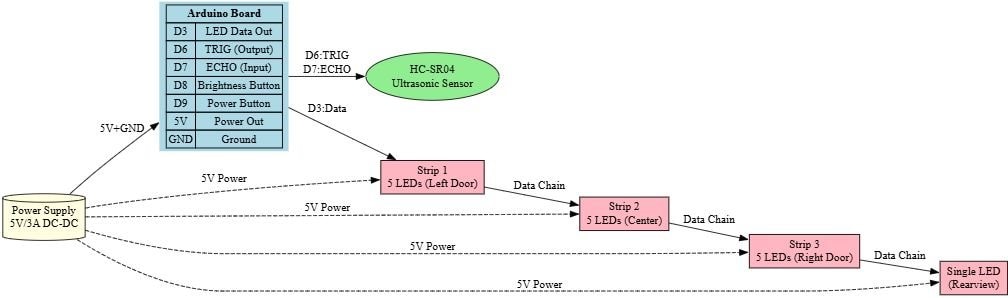

2.2 Hardware Connection

3. System Architecture Design

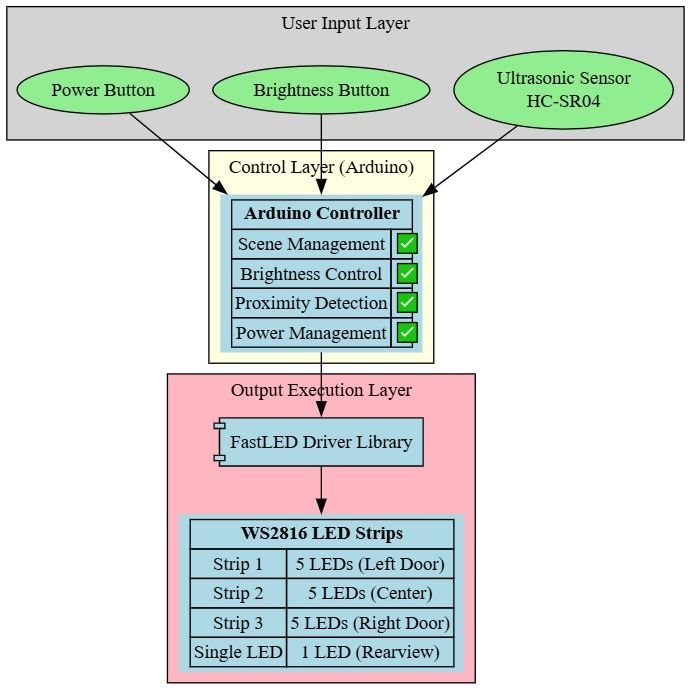

3.1 System Block Diagram

4. Functional Implementation Details

4.1 Lighting Scene Modes

Scene 1: Static Warm White

void scene1Static() {
    // Three strips show warm white, single LED shows white
    for (int i = 0; i < 5; i++) leds[i] = CRGB::White;
    // ... Other LED configurations
}

Scene 2: Breathing Effect

Blue gradient breathing effect
Smooth brightness transition (30ms intervals)

Scene 3: Rainbow Flow

Full color spectrum cycling flow
7-color gradient, dynamic changes

Scene 4: Music Rhythm Simulation

Random color changes simulating music rhythm
Three different flashing patterns

Scene 5: Color Cycling

5 preset colors cycle automatically
1-second interval auto-switching

4.2 Proximity Detection Algorithm

void checkProximitySceneChange() {
    float distance = afstandssensor.distanceCM();

    // Detect gestures in 10-20cm range
    if (distance >= 10 && distance <= 20) {
        if (proximityHandled) {
            changeSceneByProximity();  // Switch scene
            proximityHandled = false;
        }
    } else {
        proximityHandled = true;
    }
}

4.3 Brightness Control Logic

void adjustBrightness() {
    currentBrightness += 51;  // 51 = 255/5
    if (currentBrightness > 255)
        currentBrightness = 25;  // Minimum 10% brightness
    FastLED.setBrightness(currentBrightness);
}

Smart Car Ambient Lighting Control System Project Report

1. Project Overview

1.1 Project Background

1.2 System Features

Multiple Lighting Scenes: 5 switchable lighting effects
Intelligent Gesture Control: Hand gesture switching via ultrasonic sensor
Adjustable Brightness: 5-level brightness adjustment for different environments
Energy Efficient: Automatic on/off and low-power design

2. System Components

2.1 Hardware Components List

Component	Specification	Quantity	Purpose
Arduino Nano/Uno	ATmega328P	1	Main Controller
WS2816 LED Strips	WL-ICLED LEDs	3 strips × 5 LEDs	Ambient Light Source
WS2816 Single LED	Individual control	1	Auxiliary Indicator
HC-SR04 Ultrasonic Module	Detection range 2-400cm	1	Proximity Detection
Tactile Buttons	6×6mm momentary	2	Brightness/Power Control
Resistors	220Ω, 10kΩ	Several	Signal Conditioning
Connecting Wires	Dupont wires	Several	Circuit Connections
Power Module	5V/3A DC-DC	1	System Power Supply

3. System Architecture Design

3.1 System Block Diagram

3.2 Software Architecture

4. Functional Implementation Details

4.1 Lighting Scene Modes

Scene 1: Static Warm White

void scene1Static() {
    // Three strips show warm white, single LED shows white
    for (int i = 0; i < 5; i++) leds[i] = CRGB::White;
    // ... Other LED configurations
}

Scene 2: Breathing Effect

Blue gradient breathing effect
Smooth brightness transition (30ms intervals)

Scene 3: Rainbow Flow

Full color spectrum cycling flow
7-color gradient, dynamic changes

Scene 4: Music Rhythm Simulation

Random color changes simulating music rhythm
Three different flashing patterns

Scene 5: Color Cycling

5 preset colors cycle automatically
1-second interval auto-switching

4.2 Proximity Detection Algorithm

void checkProximitySceneChange() {
    float distance = afstandssensor.distanceCM();

    // Detect gestures in 10-20cm range
    if (distance >= 10 && distance <= 20) {
        if (proximityHandled) {
            changeSceneByProximity();  // Switch scene
            proximityHandled = false;
        }
    } else {
        proximityHandled = true;
    }
}

4.3 Brightness Control Logic

void adjustBrightness() {
    currentBrightness += 51;  // 51 = 255/5
    if (currentBrightness > 255)
        currentBrightness = 25;  // Minimum 10% brightness
    FastLED.setBrightness(currentBrightness);
}

5. Actual Effect Demonstration

5.1 Installation Effect Diagram

5.2 Scene Effect Description

Scene	Visual Effect	Application Scenario
Scene 1	Soft warm white static light	Night driving, reduce glare
Scene 2	Blue breathing gradient	Highway cruising, relaxation
Scene 3	Rainbow flowing effect	Entertainment, atmosphere enhancement
Scene 4	Random rhythm flashing	Music appreciation, party mode
Scene 5	Color cycle switching	Personalized customization

5.3 Control Experience

Gesture Control: Wave hand 10-20cm from sensor to switch scenes
Visual Feedback: LED flashing indicates current scene number
Brightness Memory: System remembers last brightness setting
Energy Saving: Automatic low-power mode when inactive

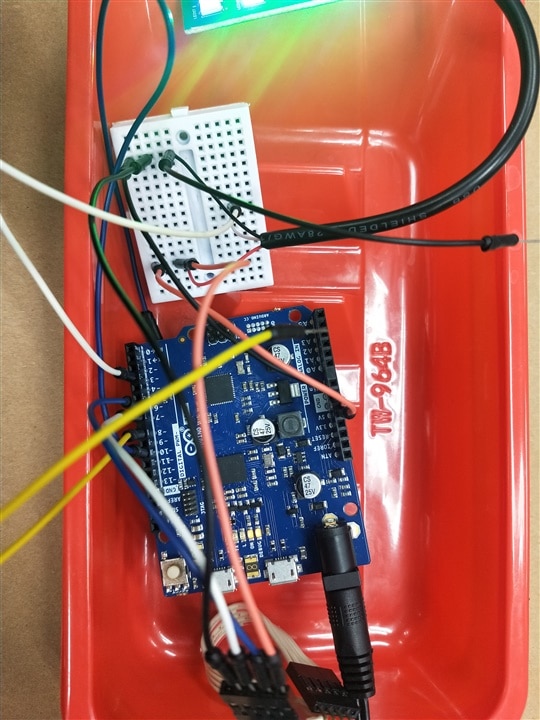

6. Project Photos and Final Effects

7. Codes

#include <FastLED.h>
#include <afstandssensor.h>

#define NUM_LEDS 16
#define DATA_PIN 3
#define TRIGGER_PIN 6
#define ECHO_PIN 7
#define BUTTON_BRIGHTNESS_PIN 8
#define BUTTON_POWER_PIN 9
#define MAX_DISTANCE 50

CRGB leds[NUM_LEDS];
AfstandsSensor afstandssensor(TRIGGER_PIN, ECHO_PIN);

bool powerOn = true;
uint8_t currentScene = 0;
uint8_t currentBrightness = 128;
uint8_t maxBrightness = 255;
unsigned long lastDistanceCheck = 0;
unsigned long lastProximityTime = 0;
bool proximityHandled = true;

const unsigned long PROXIMITY_DEBOUNCE = 1000;

const uint8_t NUM_SCENES = 5;

CRGB scene1Colors[3] = { CRGB::White, CRGB::White, CRGB::White };

CRGB scene2BaseColor = CRGB::Blue;

uint8_t scene3Hue = 0;

CRGB scene4Colors[3] = { CRGB::Red, CRGB::Green, CRGB::Blue };

CRGB scene5Colors[5] = { CRGB::Red, CRGB::Orange, CRGB::Yellow, CRGB::Green, CRGB::Blue };
uint8_t scene5Index = 0;

void setup() {
  Serial.begin(9600);

  FastLED.addLeds<WS2816, DATA_PIN, GRB>(leds, NUM_LEDS);
  FastLED.setBrightness(currentBrightness);

  pinMode(BUTTON_BRIGHTNESS_PIN, INPUT_PULLUP);
  pinMode(BUTTON_POWER_PIN, INPUT_PULLUP);

  allOff();
  FastLED.show();


}

void loop() {
  checkButtons();
  checkProximitySceneChange();

  if (powerOn) {
    switch (currentScene) {
      case 0: scene1Static(); break;
      case 1: scene2Breathing(); break;
      case 2: scene3Rainbow(); break;
      case 3: scene4Music(); break;
      case 4: scene5ColorCycle(); break;
    }
  } else {
    allOff();
    FastLED.show();
    delay(100);
  }
}


void checkButtons() {
  static unsigned long lastDebounceTime = 0;
  static bool lastBrightnessState = HIGH;
  static bool lastPowerState = HIGH;

  bool brightnessState = digitalRead(BUTTON_BRIGHTNESS_PIN);
  bool powerState = digitalRead(BUTTON_POWER_PIN);


  if (brightnessState == LOW && lastBrightnessState == HIGH && millis() - lastDebounceTime > 200) {
    currentBrightness += 51;
    if (currentBrightness > 255) currentBrightness = 25;
    FastLED.setBrightness(currentBrightness);

    Serial.println(currentBrightness);
    lastDebounceTime = millis();
  }
  lastBrightnessState = brightnessState;


  if (powerState == LOW && lastPowerState == HIGH && millis() - lastDebounceTime > 200) {
    powerOn = !powerOn;
    lastDebounceTime = millis();
  }
  lastPowerState = powerState;
}


void checkProximitySceneChange() {
  if (millis() - lastDistanceCheck > 300) {
    float distance = afstandssensor.afstandCM();


    Serial.print(distance);
    Serial.println(" cm");


    if (distance >= 10 && distance <= 20) {
      if (proximityHandled && millis() - lastProximityTime > PROXIMITY_DEBOUNCE) {
        changeSceneByProximity();
        proximityHandled = false;
        lastProximityTime = millis();
      }
    } else {
      proximityHandled = true;
    }

    lastDistanceCheck = millis();
  }
}


void changeSceneByProximity() {
  currentScene = (currentScene + 1) % NUM_SCENES;
  Serial.println(currentScene + 1);
  proximityFeedback();
}


void proximityFeedback() {

  CRGB feedbackColor = getSceneColor(currentScene);

  for (int i = 0; i < 2; i++) {
    fill_solid(leds, NUM_LEDS, feedbackColor);
    FastLED.show();
    delay(150);
    allOff();
    FastLED.show();
    delay(100);
  }


  showSceneNumber(currentScene + 1);
}


void showSceneNumber(uint8_t sceneNum) {
  allOff();

  for (int i = 0; i < sceneNum && i < 5; i++) {
    leds[i] = CRGB::Green;
  }

  FastLED.show();
  delay(800);
  allOff();
  FastLED.show();
}


CRGB getSceneColor(uint8_t scene) {
  switch (scene) {
    case 0: return CRGB::White;      // 场景1：白色
    case 1: return CRGB::Blue;       // 场景2：蓝色
    case 2: return CRGB::Purple;     // 场景3：紫色
    case 3: return CRGB::Yellow;     // 场景4：黄色
    case 4: return CRGB::Cyan;       // 场景5：青色
    default: return CRGB::White;
  }
}


void scene1Static() {
  for (int i = 0; i < 5; i++) leds[i] = scene1Colors[0];     // 第一串
  for (int i = 5; i < 10; i++) leds[i] = scene1Colors[1];    // 第二串
  for (int i = 10; i < 15; i++) leds[i] = scene1Colors[2];   // 第三串
  leds[15] = CRGB::White; // 单独的WS2816

  FastLED.show();
  delay(100);
}


void scene2Breathing() {
  static uint8_t breathValue = 0;
  static bool breathingUp = true;

  CRGB color = scene2BaseColor;
  color.fadeToBlackBy(255 - breathValue);

  fill_solid(leds, NUM_LEDS, color);
  FastLED.show();

  if (breathingUp) {
    breathValue += 2;
    if (breathValue >= 200) breathingUp = false;
  } else {
    breathValue -= 2;
    if (breathValue <= 30) breathingUp = true;
  }

  delay(30);
}


void scene3Rainbow() {
  fill_rainbow(leds, NUM_LEDS, scene3Hue, 7);
  FastLED.show();

  scene3Hue += 1;
  delay(50);
}


void scene4Music() {
  static unsigned long lastChange = 0;
  static uint8_t pattern = 0;

  if (millis() - lastChange > random(100, 300)) {
    pattern = random(3);
    lastChange = millis();
  }

  switch (pattern) {
    case 0:
      fill_solid(leds, 5, scene4Colors[0]);
      fill_solid(leds + 5, 5, scene4Colors[1]);
      fill_solid(leds + 10, 5, scene4Colors[2]);
      break;
    case 1:
      fill_solid(leds, NUM_LEDS, scene4Colors[random(3)]);
      break;
    case 2:
      fill_gradient_RGB(leds, NUM_LEDS,
                       scene4Colors[0], scene4Colors[1], scene4Colors[2]);
      break;
  }

  leds[15] = scene4Colors[random(3)];
  FastLED.show();
  delay(80);
}


void scene5ColorCycle() {
  static unsigned long lastChange = 0;

  if (millis() - lastChange > 1000) {
    CRGB color = scene5Colors[scene5Index];
    fill_solid(leds, NUM_LEDS, color);
    FastLED.show();

    scene5Index = (scene5Index + 1) % 5;
    lastChange = millis();
  }
}


void allOff() {
  fill_solid(leds, NUM_LEDS, CRGB::Black);
}


void setStrip(uint8_t stripNum, CRGB color) {
  uint8_t start = stripNum * 5;
  uint8_t end = start + 5;
  if (stripNum == 3) {
    leds[15] = color;
  } else {
    for (int i = start; i < end && i < NUM_LEDS; i++) {
      leds[i] = color;
    }
  }
}
