Ratsnest vanished

Question

Hi All,

I've encountered a strange problem where the ratsnest (i.e. lines showing unrouted tracks) has disappeared. A DRC lists the unrouted nets and shows them up when I zoom in. I'm not aware of doing anything to cause this.

I've tried clearing and re-importing the netlist, but that didn't help.

Any suggestions?

Thanks,

Frog

e14softwareuk · Accepted Answer

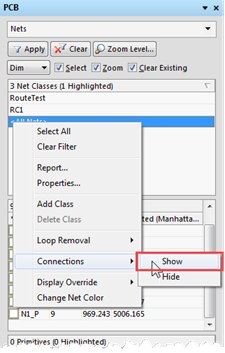

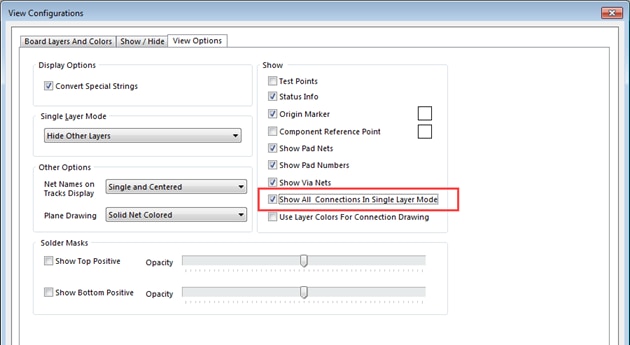

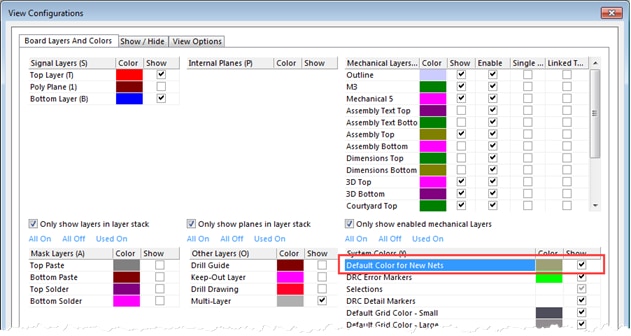

Hi Frog. One possibility is that you have turned off displaying the ratsnets. Check your layer colour/drawing configuration dialog. The connections may have been hidden at the net level. Use View | PCB > Nets, right click on all nets and show connections. Much less likely but if using single layer mode there is the option to hide ratsnets not associated with that layer.
