1. The Kit

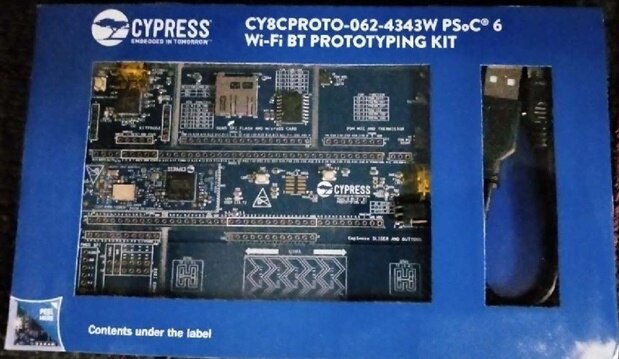

Just got the dev kit in one simple CardBoard Package. From my point of view, that is good.
The Prototyping Kit is designed in size of breakboard, fairly good for prototype design, keep what is needed and save the rest for later use.
2. Break part
Breaking parts includes,

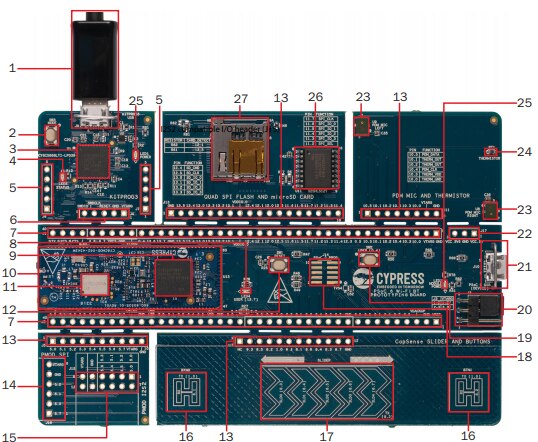

1. KitProg3 USB connector (J8) 2. KitProg3 programming mode selection button (SW3) 3. KitProg3 (PSoC 5LP) programmer and debugger (CY8C5868LTI-LP039, U1) 4. KitProg3 status LED (LED2) 5. KitProg3 I/O headers (J6, J7) 6. KitProg3 5-pin programming header (J4) 7. PSoC 6 MCU I/O headers (J1, J2) 8. PSoC 6 MCU user LED (LED4) 9. PSoC 6 MCU (CY8C624ABZI-D44) 10. Cypress PSoC 6 WiFi-BT Module (CY8CMOD-062-4343W, U15) 11. CYW4343W based Murata Type 1DX Module (LBEE5KL1DX) 12. Reset button (SW1) 13. On-board peripheral headers (J5, J11, J12 and J13)I2S2 compatible I/O header (J15) 14. Digilent® Pmod™ SPI compatible I/O header (J16) 15. Digilent® Pmod™ I2S2 compatible I/O header (J15) 16. CapSense buttons 17. CapSense slider 18. PSoC 6 MCU program and debug header (J14) 19. PSoC 6 MCU user button (SW2) 20. Power selection jumper (J3) 21. PSoC 6 USB device Connector (J10) 22. External power supply connector (J17) 23. PDM microphones (U8, U9) 24. Thermistor (RT1) 25. Power LEDs (LED1, LED3) 26. Cypress 512-Mbit serial NOR flash memory (S25HL512T, U11) 27. microSD Card holder (J9)

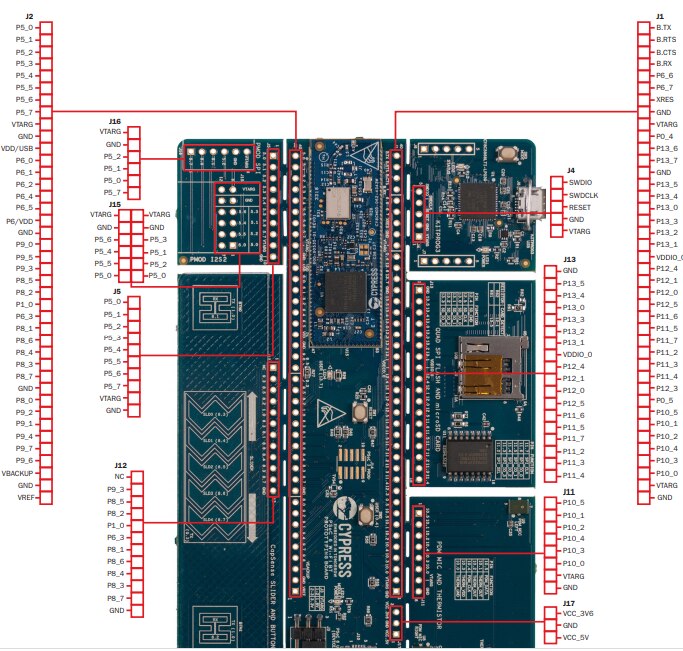

With the pinout

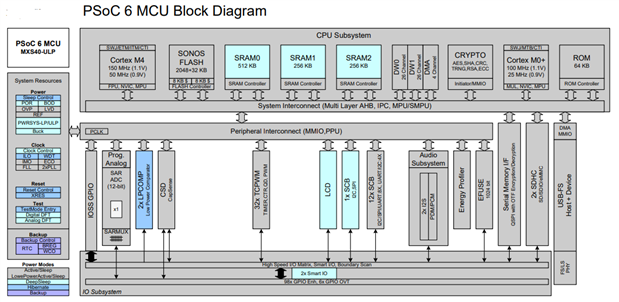

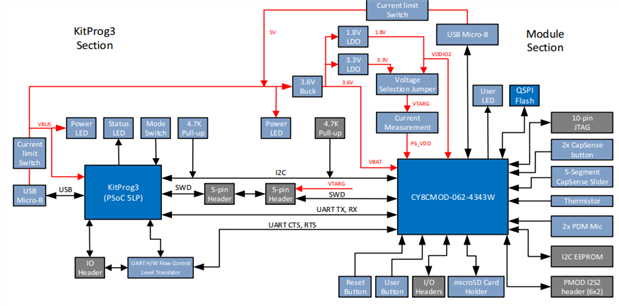

And the MCU block and Board block show how the pins go with the blocks.
3. Next
Next, to install softwares and SDKs for the prototype. Here is choices to make for late development.
PSoC 6 Wi-Fi BT Prototyping Kit,https://os.mbed.com/platforms/CY8CPROTO-062-4343W/
or, ModusToolbox
Software Environment https://www.cypress.com/products/modustoolbox-software-environment
Both shall be with https://aws.amazon.com/cn/iot/ , for AWS IoT hub.
