Just Remarkable

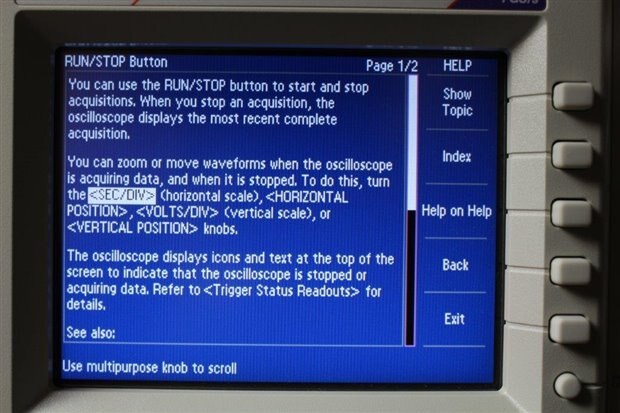

Here are two photos showing the incredible clarity and resolution of the Tektronix TBS1052B-EDU LCD.

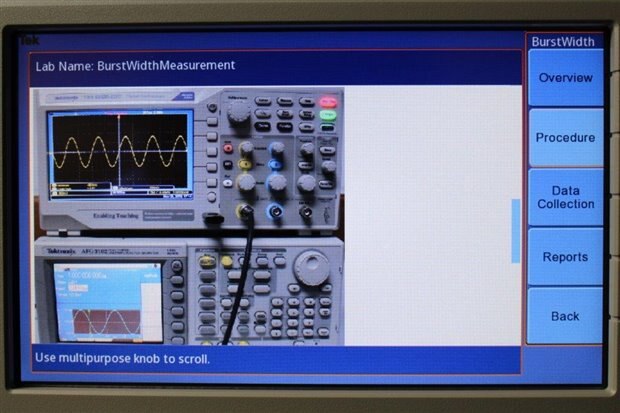

The first is a picture of a TBS1052B connected to an AFG3022C from the Procedure panel of the Burst Width Measurement Laboratory exercise.
(Is there any chance of Road testing a AFG3022C to enact this laboratory exercise?)

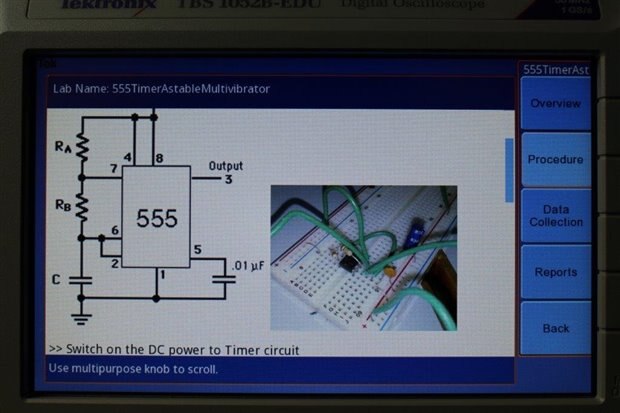

And here's another that contains a schematic diagram and photo of a breadboard.
What can I say?
Maybe;
T= ((RA + RB * 2) * C) / 1.44
TL= 0.693 * RB * C
TH= 0.693 * (RA + RB) * C
And that the TBS 1062 display is very sharp but physically smaller and has a much smaller colour palette.
