Technical Support Thread | On the Line Design Challenge

JoRatcliffe

With the challengers announced and kits soon to be arriving, I thought it would be a good time to create somewhere for any questions on the kit that I can forward to suppliers or for discussing challenges and solutions relating to the kit.

This is potentially just a starting point, anyone is very welcome to share additional links or resources that you think everybody would benefit from.

Links & Documentation

Product URL for Reference Manufacturer Part Number Documentation

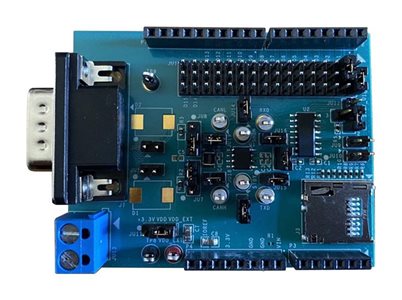

https://uk.farnell.com/analog-devices/max33041eshld/shileld-eval-kit-can-transceiver/dp/3807530
MAX33041ESHLD# 		Technical Data Sheet
https://uk.farnell.com/omega/5srtc-tt-k-24-72/thermocouple-type-k-2m-260deg/dp/3795213
5SRTC-TT-K-24-72 		Technical Data Sheet
https://uk.farnell.com/omega/hx94c/humidity-sensor-current-30v-w/dp/3463003
HX94C. 		Technical Data Sheet
https://uk.farnell.com/molex/218112-0202/cable-assy-rcpt-free-end-225mm/dp/3783585
218112-0202

Technical Data Sheet

Drawing

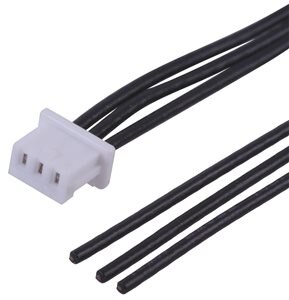

https://uk.farnell.com/molex/218112-0300/cable-assy-rcpt-free-end-75mm/dp/3783588
218112-0300

Technical Data Sheet

Drawing
https://uk.farnell.com/molex/218112-0500/cable-assy-5pos-rcpt-free-end/dp/3776605
218112-0500

Datasheet

Drawing

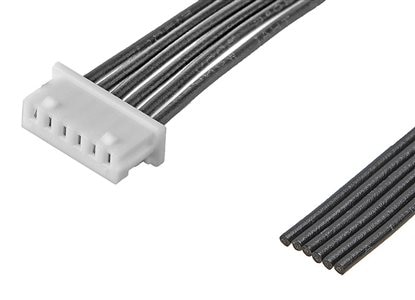

https://uk.farnell.com/molex/218112-0602/cable-assy-6pos-rcpt-free-end/dp/3776614
218112-0602

Technical Data Sheet

Drawing

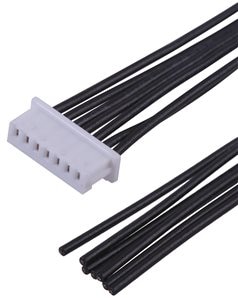

https://uk.farnell.com/molex/218112-0703/cable-assy-rcpt-free-end-300mm/dp/3783614
218112-0703

Technical Data Sheet

Drawing

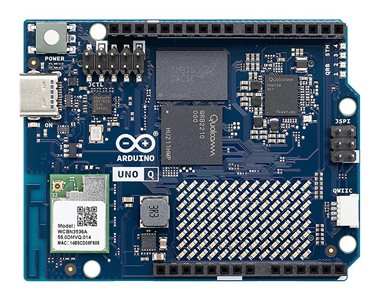

https://uk.farnell.com/arduino/abx00162/uno-q-sbc-2gb-arm-cortex-a53-m33f/dp/4808383
ABX00162
Technical Data Sheet

Files and documents shared here are correct as of 29th April 2026 and is intended as a 'snapshot in time'.

  • Hi

    Thank you so much for putting this technical support thread together! Having a centralized "snapshot" of the kit components, complete with direct links to the data sheets and manufacturer part numbers, is an incredible reference for all of us participating.

    I usually kick off my design process by building a personal outline and conducting deep-dive research into each part of the sponsor kit. Having all these resources organized in one place right at the start is a huge time-saver and a great foundation for the research phase.

    Looking forward to getting started with the kit!

    Best, Stephen (skruglewicz)
