[Pi IoT] Smart Competition Home #12: System recap

clazarom

Last day (+ 1) of Pi IoT competition, and a Smart Competition Home is ready to run image

In this post, I wanted to show how the system looks like: both in paper and in the house itself. So here comes the pictures:

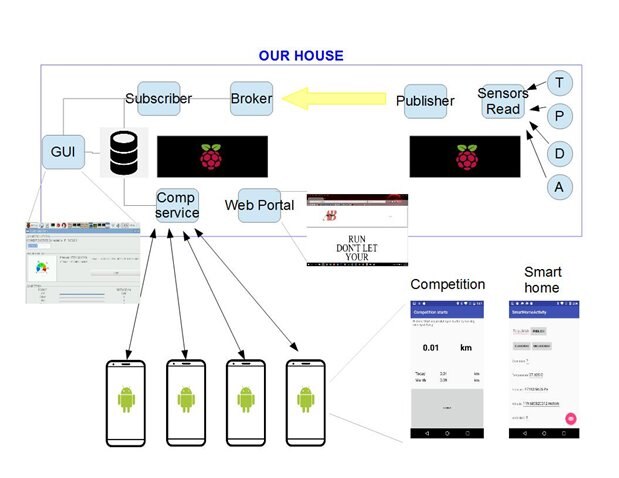

System Description












ELEMENTS/NODES:

  • 1 Central Node - Raspberry Pi 3
  • 1 Sensors Node - Raspberry Pi
  • 4 User's Nodes - Smartphones



PUBLIC DOMAIN

http://competitionvault.wow64.net/





















System "Installation"

I want to show where each node is being working in real life. Installation is a very kind work to use in this case, as each node has been location in a best-effort basis (but it works!)

Sensors Node

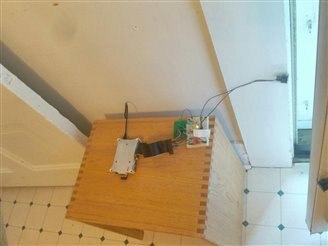

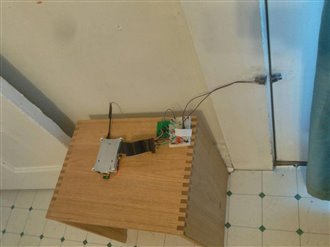

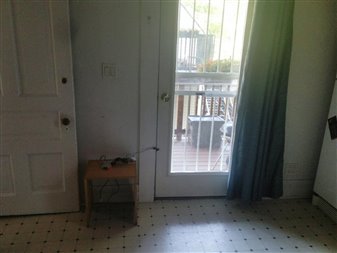

Attached to the back door in the Kitchen




Central Node

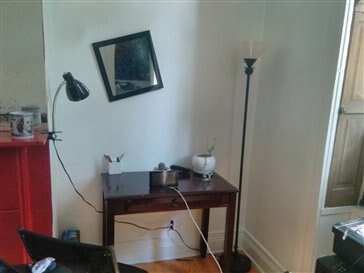

In the corner of the living room. Accessible and not in the way.




User's Node

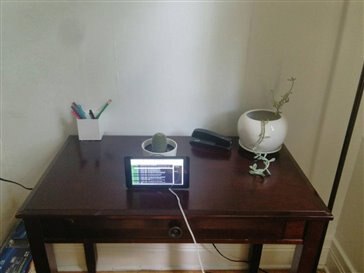

The User's Node is intended to be each of our smartphones



However, I also had an old Tablet which was only used to control Netflix in a the home Chromecast. Well... it is now a general User's Node to read the smart house information.
