Can anyone help me in setting up thermocouple with mkr wif 1010

Can anyone help me in setting up thermocouple with mkr wif 1010. I wan't to know how to connect thermocouple with mkr wifi 1010 board.

Top Replies

Jan Cumps 8 days ago +3

Thermocouples need a front end - it's not simple to measure them, and the MKR ADC will not do. Here are examples using Analog ICs: https://www.analog.com/en/resources/analog-dialogue/articles/measuring…
kmikemoo 8 days ago +2

When I needed a thermocouple, I bought one of the boards off of Amazon. If the application doesn't require a thermocouple, you could also consider a thermistor. It might be cheaper to buy the thermistor…
rsc 8 days ago +1

Analog Devices has a temperature measurement development system with a board they call Linduino https://www.analog.com/media/en/technical-documentation/product-selector-card/2983d.pdf You may be able…

Jan Cumps 8 days ago

Thermocouples need a front end - it's not simple to measure them, and the MKR ADC will not do.

Here are examples using Analog ICs: https://www.analog.com/en/resources/analog-dialogue/articles/measuring-temp-using-thermocouples.html

I have a Renesas RX23a here, a microcontroller that has the analogue circuitry on board for thermocouple exercises. Maybe use a controller like that?
Cancel
Vote Up +3 Vote Down

Sign in to reply

Cancel
rsc 8 days ago

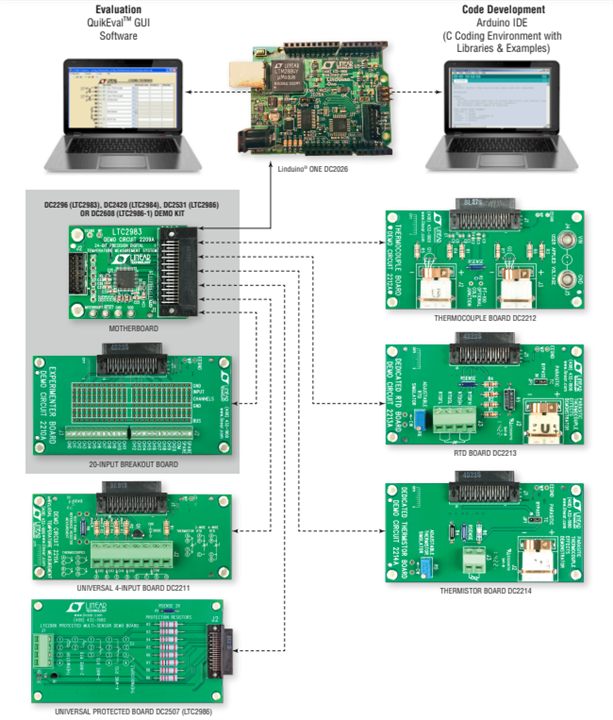

Analog Devices has a temperature measurement development system with a board they call Linduino

https://www.analog.com/media/en/technical-documentation/product-selector-card/2983d.pdf

You may be able to interface their thermocouple board to a MKR WiFi 1010
Cancel
Vote Up +1 Vote Down

Sign in to reply

Cancel
dougw 8 days ago

The Maxim chip and Arduino circuit I used is shown in this video:

https://youtu.be/h5LdzecisTw

It was part of this project:

(+) Taming The Wild Stirling Engine - element14 Community

Thermocouple output is proportional to the different between the 2 ends of the thermocouple wire, so you need to know the temperature at the MCU end in order to calculate the temperature at the other end. I used a Max 31855 chip to simplify the job of signal conditioning and adding a reference temperature.
Cancel
Vote Up +1 Vote Down

Sign in to reply

Cancel
beacon_dave 8 days ago in reply to dougw

Arduino use the MAX31855 on their MKR THERM shield:

https://docs.arduino.cc/hardware/mkr-therm-shield/
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
kmikemoo 8 days ago

When I needed a thermocouple, I bought one of the boards off of Amazon. If the application doesn't require a thermocouple, you could also consider a thermistor. It might be cheaper to buy the thermistor than a thermocouple interface board. Then you just do the voltage divider thing and plot your temperature curve. When we did the Experimenting with Thermistors Challenge, I bought the "kit". I think it set me back $16 for all 10 thermistors AND a plastic box.
Cancel
Vote Up +2 Vote Down

Sign in to reply

Cancel
rsc 7 days ago

Here's another option

https://diyprojectslabs.com/humidity-temperature-sensor-with-arduino/
Cancel
Vote Up 0 Vote Down

Sign in to reply
