Here are the simplified BRD Pictures of the Receiver Evaluation Board bq51013AEVM-765. I took most of the layers away so we can just see the traces and pads easier.
I plan on making this board or the receiver board a lot smaller than the current version with components on both sides.
Top Layer:

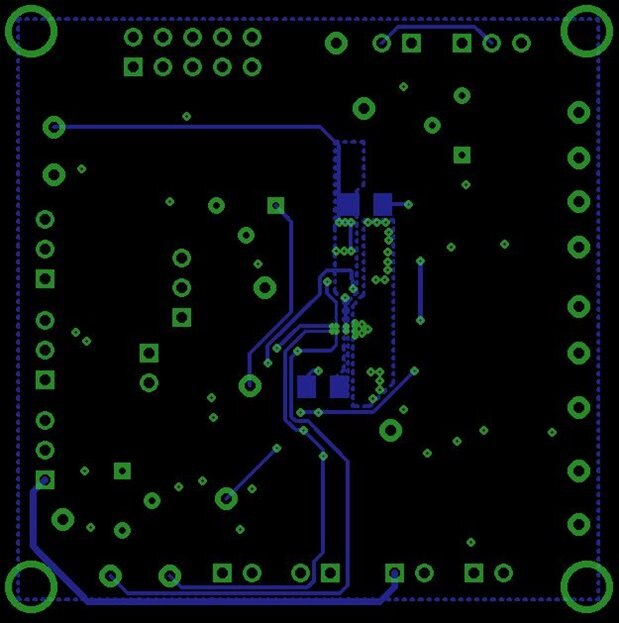

Bottom Layer:
Top and Bottom Layer with Silkscreen:
Receiver BRD File:
http://www.cadsoftusa.com/downloads/file/bq51013aevm-764_pcb_eagle_converted.brd
