Design Files: TI's bqTESLA Transmitter Manager - bq500210EVM-689

Design files for TI's bqTESLA Qi compliant

Wireless power reference design transmitter manager kit bq500210EVM-689

Description

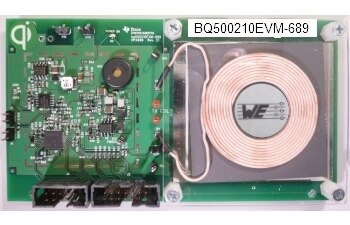

The bq500210EVM-689bq500210EVM-689 evaluation module (EVM) is a high-performance, easy-to-use development tool for the design of wireless power solutions. The EVM is a bqTESLA single-channel transmitter that will power the bq51013AEVM-765bq51013AEVM-765 Integrated Receiver or any other Wireless Power Consortium certified receiver. Together, the bq500210EVM-689 Transmitter and bq51013AEVM-765 Receiver enables designers to speed the development of their end-applications.

Features

Intelligent Control of the Power Transfer between Base Station and Mobile Device
Conforms to the Wireless Power Consortium (WPC) Wireless Power Transfer 1.0 Specifications
Demodulates and Decodes WPC Complaint Message Packets from the Power Receiving Device
Implements closed-loop Power Transfer PID Control by varying frequency of the Voltage on the Transmitting Coil
Parasitic Metal Object Detection (PMOD)
Operating Modes Status Indicator
Powers the bq51013AEVM-765 Integrated Receiver or any other WPC certified receiver

Order Now TI's bq500210EVM-689bq500210EVM-689

and Würth Elektronik Charging-Coil transmitter 24µH part # 760308101760308101

Included for download:

EAGLE PCB FILES - download bq500210evm-689_pcb_eagle_converted_v2.brd

IC Samples BQ500210RGZTBQ500210RGZT

Schematic PDF - download

User Guide - download

Gerber Files - download

Datasheet - download

Application Note - Building a Wireless Power Transmitter - download

EAGLE Libraries: - download

Attachments:

	Users Guide Transmitter Manager bq500210EVM-689.pdf
bq500210EVM-689_SCH.pdf	bq500210EVM-689_SCH.pdf
