Design Files: TI's bqTESLA Receiver Kit - bq51013AEVM

Design files for TI's bqTESLA Qi compliant

Wireless power reference design receiver kit bq51013AEVM-765

Description

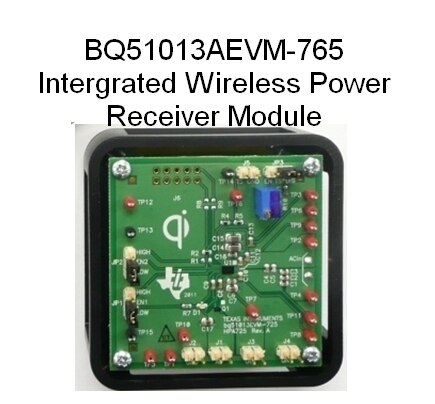

The bq51013AEVM-765bq51013AEVM-765 wireless power receiver evaluation kit from Texas Instruments is a highperformance, easy-to-use development kit for the design of wireless power solutions. Consisting of a 5-V power supply receiver and associated magnetics, the kit enables designers to speed the development of their end-applications

Features

Integrated Wireless Power Receiver Solution with a 5V Regulated Supply
Dynamic Rectifier Control for Improved Load Transient Response
Supports 20-V Maximum Input
Low-power Dissipative Rectifier Overvoltage Clamp (VOVP = 15V)
Thermal Shutdown
Multifunction NTC and Control Pin for Temperature Monitoring, Done Charging and Fault Host Control
Stand-alone Digital Controller
Programmable Termination Pin for Charge Status 100% (CS100) Support

Order Now TI's BQ51013AEVM-765BQ51013AEVM-765

and Würth Elektronik Charging-Coil receiver 10µH part # 760308201 760308201

Included for download:

EAGLE PCB Files - download bq51013aevm-764_pcb_eagle_converted.brd

IC SAMPLES BQ51013ARHLTBQ51013ARHLT

Schematic PDF - download

User Guide - download

Datasheet - download

Gerber Files - download

Application Note - Designing a Qi-compliant receiver coil for wireless power systems - download

EAGLE Libraries: - download

Attachments:

	Receiver Evaluation Kit bq51013AEVM-765.pdf
	bq51013AEVM-764_SCH.pdf
