When the world gets tough, Molex connectors get tougher - Rugged and Reliable Connectors Built for Extreme Environments

Introduction: The rising demand for extreme environment solutions

Rugged connectors are the unsung heroes of the modern world. They are present everywhere, from autonomous vehicles that navigate dusty, bumpy roads to smart factory floors where robots work in harsh, industrial environments. In such environments, even a small connection failure can halt a machine or disrupt a critical network. Yet, amid the chaos, rugged connectors quietly keep everything running, ensuring the reliable flow of power and data. Whether it's the vibration of an IC engine, the heat of a powertrain, or the moisture inside a dishwasher, connectors are the critical components ensuring reliable performance.

This article explores how next-generation rugged connectors from Molex are engineered to survive and thrive in the world's most challenging applications.

Defining high reliability and ruggedness for connectors and their importance

Connectors should be rugged to perform flawlessly under mechanical stress, environmental hazards, and extreme temperatures. When engineers tackle waterproof connector challenges, they explore the boundaries of what connectivity can achieve in harsh environments. Picture a connector in a military drone, enduring 50G shocks during evasive maneuvers, or one in a submarine, sealed against corrosive saltwater while maintaining flawless signal flow. In terms of performance, the connector must thrive under vibration (up to 20G in vehicles), extreme temperatures swinging from -40°C to +150°C, and ingress protection that shrugs off dust storms or high-pressure washes.

High-reliability means using features and systems to avoid failure in demanding applications. In space, aviation, and defense markets, high-reliability is essential in mission-critical equipment where human lives are at risk. Connectors for these markets meet specific standards for each application. They are robust, can withstand extreme environments, and are thoroughly tested and inspected. Although costly, these connectors make a safer choice.

Now, what makes a connector "rugged"? It isn't just thicker plastic or tighter latches. True ruggedness is multi-dimensional:

Performance under pressure: True ruggedness means maintaining consistent electrical performance and signal integrity across extreme conditions, ranging from Arctic installations where metals contract and become brittle to desert environments where thermal expansion of every joint and seal is the norm. Rugged connectors must withstand thermal shock, resist relentless vibration that would shake ordinary components apart, and maintain perfect seals against dust and high-pressure water jets (IP67 and beyond). Long-term signal fidelity through hundreds of thermal cycles and fluctuating currents separates rugged connectors from commodity designs, ensuring no surprises when the product meets real-world challenges.

Materials innovation: Materials in harsh environments are relentlessly attacked through heat, salt spray, oils, and particulate matter. Rugged connectors employ advanced polymer science and engineering plastics that resist UV degradation, chemicals, and impact while maintaining flexibility at -40°C and resisting degradation at +150°C. Metal contacts undergo specialized treatments and use gold, silver, or tin plating to resist oxidation, fretting corrosion, and environmental contaminants. Specialized elastomers for seals and gaskets retain compliance after UV, oil, or coolant exposure, providing watertight barriers that maintain connection integrity over time.

Construction and design: Reliability emerges from a distinct design philosophy that assumes failure modes rather than hoping to avoid them. This includes redundant sealing systems, robust locking mechanisms with audible clicks for secure mating confirmation, terminal position assurance (TPA) to prevent backing out under vibration, and strain relief to reduce mechanical stress. Error-proofing features such as color-coding, unique keying to prevent mis-mating, shrouded headers for pin protection, and generous lead-ins make good terminations routine and bad ones obvious. These features are critical for high-mix assembly and field service where precision engineering meets real-world conditions.

Applications of Rugged and Reliable Connectors

Molex presents a series of products for different applications:

DuraClik: Conquering the fields of smart agriculture

When a drone flies over farmland, it sprays nutrients while battling gusty winds and humidity. Molex DuraClik Connectors inside the drone keep the soil sensors and control units connected despite constant vibration and harsh outdoor conditions. DuraClik works perfectly here because it handles high-vibration environments like crop-monitoring drones, where an audible "click" and secure lock create a reliable connection.

DuraClik is a 2.00 mm pitch, 3.0A rated wire-to-board system designed for modules exposed to high vibration. Terminal retention forces range from 9.8 N (standard) up to 100 N (robust variant), depending on configuration, giving engineers options based on application severity. Operating temperature spans -40 °C to +105/+125/+130 °C depending on the variant.

Product advantages and features

The compact design of DuraClik Connectors enables secure mating while saving space. The integrated positive lock gives an audible ‘click’ for mating confirmation. Its automotive-grade robustness can withstand harsh conditions with an operating range of -40 °C to +130 °C, satisfying LV214 (S2 vibration), ES91500-03, and SAE/USCAR-21 standards. The many variants of DuraClik can support pull forces up to 100 N with strong connector-to-PCB retention. The design is also flexible, supporting 2 to 15 circuits in vertical and horizontal configurations.

Markets and applications

• Automotive systems: battery management, DC-DC converters, onboard chargers, vehicle connectivity, lighting, infotainment, and seat adjusters
• Industrial and energy: cranes, industrial machinery, energy storage systems, inverters, and power distribution units
• Consumer and appliances: white goods, induction cookers, vending/gaming machines

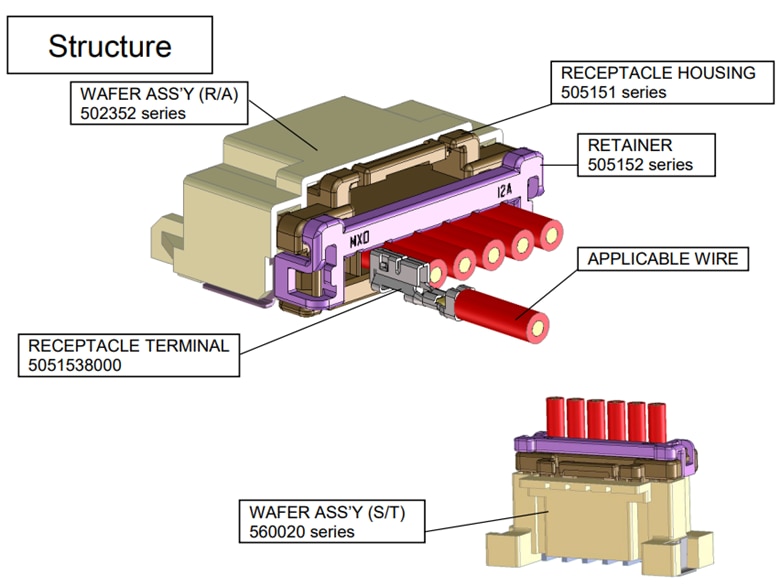

Figure 1: Structure of DuraClik 2.00mm Wire-to-Board Connector System

MX150: Automotive excellence in miniature form

The modern car is a demanding environment for electrical connections. Take automotive sensor networks, for example: these components must handle extreme temperatures from -40°C to +150°C, resist water from high-pressure car washes, and keep working reliably through millions of vibration cycles over the car's lifetime.

MX150 is a 3.50 mm pitch sealed connector system using mat-seal technology that reduces the need for individual wire seals. It is validated to USCAR-2 and GMW3191 vibration profiles: random vibration ~118.7 m/s² RMS and mechanical shock pulses of 343 m/s² (≈35 g). The current rating supports up to 22.0 A with silver-plated terminals and a voltage up to 60 V mid-voltage. Operating range: -40 °C to +125 °C (tin plating) and up to +150 °C (silver).

Product advantages and features:

The MX150 has a sealed connector design with mat seal (1.50 mm terminals) that reduces the need for individual wire seals. There is an option for two-ring seal/pass-through sealing for oil-resistant applications. The compact one-piece 3.50 mm pitch housing reduces assembly cost. The Connector Position Assurance (CPA) and Terminal Position Assurance (TPA) locking prevent mis-mating or loose terminals. The MX150 meets stringent automotive standards (USCAR-2, USCAR-21, GMW3191) for vibration, temperature, and sealing. It has a broad operating range (-40 °C to +125 °C, up to +150 °C for silver-plated) and exceptional mechanical retention (strong connector latch retention force, strong contact retention forces). The connector also supports a variety of circuit sizes (2 to 20 circuits), male/female, panel mount, headers, and twist-head sealed bulkheads.

Markets and applications:

• Automotive: ICE and electric vehicles, lighting, braking system modules, battery controllers, power distribution boxes
• Commercial vehicles and off-highway: industrial vehicles, agricultural equipment, recreational vehicles, marine
• Electrical and Power systems: solar energy storage, home generators, industrial motors
• Industrial automation and robotics: machines, motors, machinery control systems

Figure 2: Structure of DuraClik 2.00mm Wire-to-Board Connector System

Mini50: Compact infotainment specialist

In connector design, size and capability often have an inverse relationship. As vehicles add more advanced driver-assistance systems (ADAS), such as radar, LiDAR, and surround-view cameras, the real estate on sensor modules and within tight door panels becomes precious. Step into the cockpit of a self-driving car, where screens glow and sensors whisper directions. The Mini50 connectors in this environment weave a web of connections in the tight confines of infotainment hubs, cameras, and HVAC controls.

Mini50 is the industry's only USCAR-050 approved unsealed interface. Using 0.50 mm terminals achieves up to 50% smaller frontal area compared to traditional 0.64 mm USCAR systems. Operating temperature is -40 °C to +100 °C, with housings capable of +260 °C reflow for soldering.

Product advantages and features

The Mini50 has a 50% smaller frontal area than the 0.64 mm USCAR unsealed connectors. It is the industry’s only USCAR 050-rated unsealed interface. The Independent Secondary Lock (ISL) molded in the housing ensures terminal retention with fewer parts, with the optional CPA (Connector Position Assurance) preventing accidental unmating. The Mini50 has multiple polarization options (mechanical/visual/color) which help prevent mis-mating. The housings made of high-temperature thermoplastic are compatible with IR/wave solder reflow up to +260 °C (per ES-40000-5013). Its orientation and board retention features, molded into the headers, assist alignment and help retain the header during soldering. The terminal compatibility ((0.13–0.35 mm²) of the CTX50 enables lighter wire gauges while retaining strength.

Markets and applications

• In-vehicle electronics (interior modules): HVAC controls, instrument clusters, infotainment, lighting, switches
• Door/seat modules, mirror systems, sensor/actuator interfaces
• Modules in passenger compartments, glove boxes, and overhead consoles
• Any modules in dry interior zones where space is at a premium and connectors are unsealed

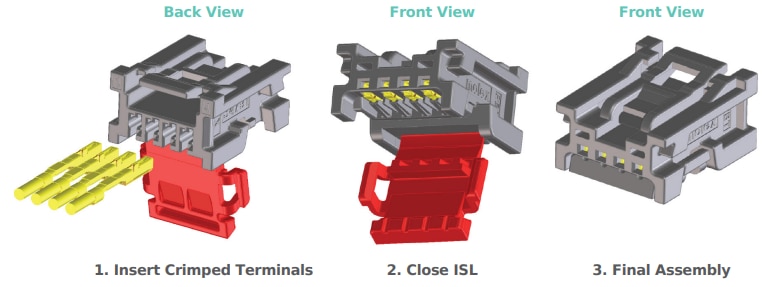

Figure 3: Exploded view of Mini50 Unsealed Connector System

MXP120: Safeguarding lives in critical moments

When a car crashes, MXP120 connectors instantly trigger airbags with perfect accuracy, their bright yellow housings showing how critical they are for saving lives. Built for automotive safety systems like seatbelt pretensioners and side airbags, these compact sealed connectors work well in body electronics, keeping out water and dust even when mounted on the car's frame.

MXP120 is a 4.00 mm pitch, 1.20 mm terminal sealed connector system delivering up to 13.0 A in compact safety and body-electronics applications. It employs Single Wire Seal (SWS) perimeter sealing rated to IPX8 (IPX9K under evaluation), with ISL and PLR features for secure terminal retention. Operating temperature is -40 °C to +125 °C.

Product advantages and features:

The MXP120 compact 4.00 mm pitch/1.20 mm terminals save space compared to 1.50 mm systems. It supports medium-power sealed applications up to 13 A, and strong terminal retention is provided by the ISL and Primary Lock Reinforcement (PLR). The available scoop-proof shrouds and audible locks deliver secure, reliable mating and prevent accidental unmating. The MXP120 is designed to meet AK and USCAR standards for global automotive compatibility.

Markets and applications:

• Automotive: safety systems (airbags, seatbelt pretensioners, SRS, SIR), body electronics and exterior modules (door-lock mechanisms, lighting, turn signals), powertrain and engine zones (ignition coils, emission controls, fuel injection)
• Commercial vehicles: safety restraint and body electronics in harsher environments
• Industrial/consumer: medium-power sealed connectivity applications (up to 13 A)

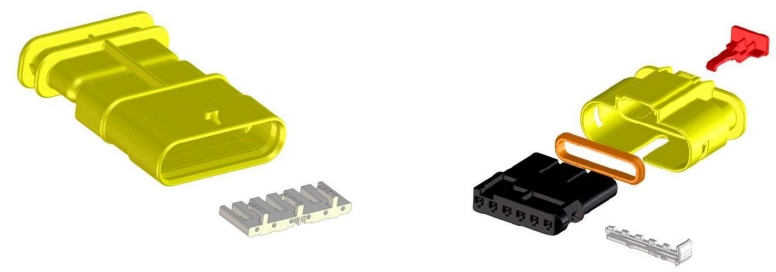

Figure 4: Exploded view of MXP120 Sealed Connector System

Conclusion:

As technology progresses, the choice of a connector is a fundamental engineering decision that dictates the system's reliability, safety, and longevity. By offering a portfolio of specialized solutions like the user-friendly DuraClik, the industrial-strength MX150, the miniaturized yet mighty Mini50, and the high-power MXP120, Molex provides the critical connective tissue that allows innovation to flourish anywhere on Earth. The future is being built, and it’s being built to last on a foundation of rugged and reliable connectivity.
