Member's Forum What is happening in the EveryCircuit simulation?
  • Blog
  • Forum
  • Documents
  • Quiz
  • Events
  • Leaderboard
  • Polls
  • Files
  • Members
  • Mentions
  • Sub-Groups
  • Tags
  • More
  • Cancel
  • New
Join Community Hub to participate - click to join for free!
Actions
  • Share
  • More
  • Cancel
Forum Thread Details
  • State Not Answered
  • Replies 7 replies
  • Subscribers 532 subscribers
  • Views 1125 views
  • Users 0 members are here
  • community
  • help
  • electronics
Related

What is happening in the EveryCircuit simulation?

AntonioArts
AntonioArts over 1 year ago

Hello everyone!

I've started to discover an exciting world of electronics and ICs

But there is one thing that bothers me after I've created it  Sweat smile

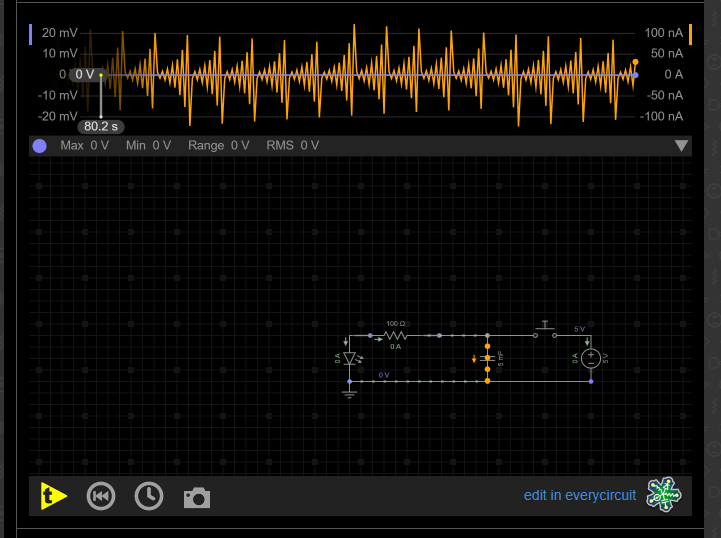

Here is a link to the circuit https://everycircuit.com/circuit/5216254553751552/capacitor-with-led

1. I can't get why there is some phantom behavior before I apply current to the scheme it appears around 10 seconds after starting the simulation
2. Why is the current continues to flow after the capacitor is discharged

Thank you!

  • Sign in to reply
  • Cancel

Top Replies

  • shabaz
    shabaz over 1 year ago +4
    It's likely because the simulator is trying to model everything as a perfect component, and it's breaking the simulation somehow (it could be anything, even a divide by zero!). I can't drive that everycircuit…
  • scottiebabe
    scottiebabe over 1 year ago +2
    Good question. I have no answer.
  • robogary
    robogary over 1 year ago in reply to robogary +2
    oi kinda looks like a slow AC frequency is riding on top too.
Parents
  • robogary
    0 robogary over 1 year ago

    Its a supercapactive diode with high inductance. Its ringing like a bell.

    • Cancel
    • Vote Up -1 Vote Down
    • Sign in to reply
    • Verify Answer
    • Cancel
Reply
  • robogary
    0 robogary over 1 year ago

    Its a supercapactive diode with high inductance. Its ringing like a bell.

    • Cancel
    • Vote Up -1 Vote Down
    • Sign in to reply
    • Verify Answer
    • Cancel
Children
  • robogary
    0 robogary over 1 year ago in reply to robogary

    oi kinda looks like a slow AC frequency is riding on top too.

    • Cancel
    • Vote Up +2 Vote Down
    • Sign in to reply
    • Verify Answer
    • Cancel
  • AntonioArts
    0 AntonioArts over 1 year ago in reply to robogary

    Removing the LED does not change the behavior after the button release

    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Verify Answer
