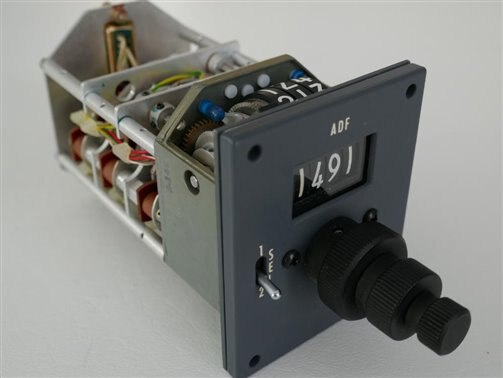

NexGen: Component Documentation: King Radio: ADF Panel
KFS585B
| DB-37M | ||||||
|---|---|---|---|---|---|---|
|
1. 1 kHz (wht/brn) |
2. 2 kHz (wht/Orn) | 3. 4kHz (wht/grn)n | 4. 8 kHz (wht/blu) | 5. 10 kHz (yel/brn) | 6. 20 kHz (yel/grn) | 7. 40 kHz (yel/blu) |
| 8. 80 kHz (Yel/wht) | 9. 100 kHz (Grn/Blu) | 10. 200 kHz (grn/yel) | 11. 400 kHz (grn/blk) | 12. 800 kHz (grn/wht) | 13. 1 MHz | 14. Freq Common White |
| 15. SPARE | 16. SPARE | 17. SPARE | 18. Selector #1 | 19. SPARE | 20 | 21. SPARE |
| 22 | 23. SPARE | 24. SPARE | 25 | 26 | 27 | 28 |
| 29 | 30. Power Common Black | 31. Lamps 27vdc | 32. Lamps 13vdc | 33 | 34 | 35. SPARE |
| 36. SPARE | 37. SPARE | |||||
 |
 |
| DB25F to DB35 Interface Cable | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1:1 | 2:2 | 3:3 | 4:4 | 5:5 | 6:6 | 7:7 | 8:8 | 9:9 | 10:10 | 11:11 | |
| 12:12 | 14:14 | 15:18 | 17:31 | 18-25 Ground | |||||||
Some of the information came from this .
