| Kit Overview

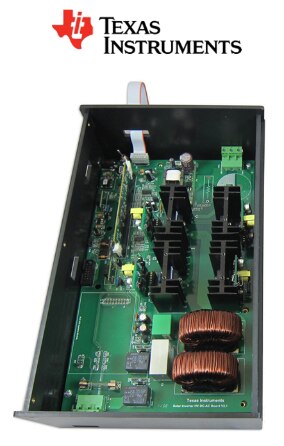

The C2000 High Voltage inverter developers kit is intended to show users how to quickly implement a digitally controlled, four switch DC/AC inverter, supporting both solar and renewable energy types of applications as well as standalone SINE inverter designs.
This is a HIGH VOLTAGE kit intented to support common worldwide grid-voltage levels, and gives designers the opportunity to experiment with different control methods. This kit is an excellent companion to the TMSHVMPPTKIT providing a complete evaluation platform for solar applications. The EVM also features on board JTAG emulation, eliminating the need for external emulators.
Based on the controlCARD platform, this kit allows designers to experiment with multiple C2000 MCU's and includes both Piccolo F28035 and Concerto F28M35 controlCARDs. Also included with this kit is a quick start GUI, ControlSUITE, and a limited version of Code Composer Studio. Full hardware and software documentation is also included.
The F2803x Piccolo
Key Applications: Solar Power Inverters, LED Lighting, Hybrid Electric Vehicles, Appliances, Digital Power, Motor Drive and Control, Renewable Energy, Power Line, Communications. | |||||||||||
| ||||||||||||
Development Tools
Software Development Tools:
| Tool Type | Supplier | MPN | Supported Family | Description |
|---|---|---|---|---|
| IDE | Texas Instruments | Code Composer Studio (CCStudio) | ALL TI MCUs | CCStudio is an integrated development environment (IDE) for TI embedded processor families. CCStudio comprises a suite of tools used to develop and debug embedded applications. It includes compilers for each of TI's device families, source code editor, project build environment, debugger, profiler, simulators, real-time operating system and many other features. Learn More |
Hardware Development Tools:
| Tool Type | Supplier | MPN | Supported Family | Description |
|---|---|---|---|---|
| Emulator | Spectrum Digital | XDS510 USB Plus JTAG EmulatorXDS510 USB Plus JTAG Emulator | C2000 MCUs | USB Plus JTAG Emulator |
Technical Documents
Learning Center
| Type | Description |
|---|---|
| User Guide | TI: TMS320C28x DSP CPU and Instruction Set Reference Guide |
| User Guide | TI: TMS320C28x Floating Point Unit and Instruction Set Reference Guide |
| User Guide | TI: TMS320C2000 Motor Control Primer |
| Product Brief | TI: C2000 Solar Inverter Development Kits |
| Selection Guide | TI: Power Management Solutions for 32-Bit C2000 Real-Time MCUs |
| Selection Guide | TI: C2000 Microcontrollers Brochure |
| Selection Guide | TI: C2000 Concerto Microcontrollers |
| Whitepaper | TI: Performance without Compromise: Implementing Real-time Control and Communication |
| Training Video | TI: Solar Development with C2000 32-bit Real-time MCUs |
| Training Video | TI: Digital Power Overview |
| Training Video | TI: Concerto MCUs: Connectivity without compromise |
Design Elements
| Type | Description |
|---|---|
Video
Kit Features
- Piccolo or Concerto based control 400VDC Input
- High Efficiency >96%
- 110/220VAC Selectable output
- Grid-Tie with Enable / Disable
- Quick start graphical user interface (USB and Ethernet)
- Ethernet remote control and monitoring with Concerto MCU
- On-board USB JTAG Emulation
- Fully documented open source hardware and software
Kit Contents
- Base Inverter Board
- PiccoloF28035F28035 Control Card
- Concerto F28M35 Control Card
- USB Cables
- Startup software and user guide
