| Kit Overview

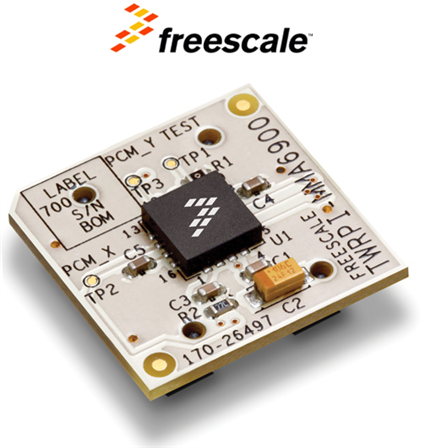

The Freescale's TWRPI-MMA6900TWRPI-MMA6900 is a Tower System plug-in board that contains the Xtrinsic MMA6900Q inertial sensor that can be used in automotive and industrial applications. The board is designed to interface to the Freescale Tower System, a modular development platform which aids in rapid prototyping and tool-reuse. An integrated Open-Source BDM, software tools, and examples provided with the development board make application development and debug quick and easy.

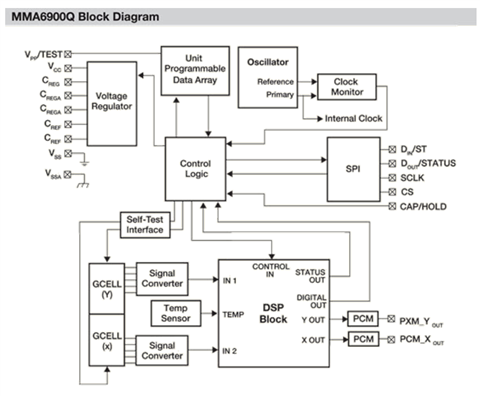

The MMA6900Q are dual axis, low g, xy sensors based on Freescale’s HARMEMS technology with an embedded DSP ASIC allowing for additional processing of digital or analog signals. The MMA6900Q has a ±3.5g full-scale range per axis. Xtrinsic MMA6900Q sensors are SafeAssure functional safety solutions.
Take your design to the next level with the Freescale Tower System. Freescale's modular development platform saves you months of development time now and in the future through rapid prototyping and tool re–use.
Interchangeable and reusable modules along with open source design files make it easy to customize your design and reduce low level design giving you more time to focus on differentiated solutions.
Key Applications: Automotive and Industrial Applications | |||||||||||
| ||||||||||||
Technical Documents
Learning Center
| Type | Description |
|---|---|
| User Guide | Freescale: Quick Start Guide for TWRPI-MMA6900 Tower System |
| Product Brief | Freescale: Product Brief for Freescale Tower System |
| Datasheet | Freescale: Datasheet for High Accuracy Low g Inertial Sensor |
| Selection Guide | Freescale Semiconductor: Selection Guide for FREESCALE Tower System Development Tools |
| Solution Guide | Freescale: Solutions For Tower System |
Design Elements
| Type | Description |
|---|---|
| Schematics | |
| Application Library | Freescale: Application Library for TWRPI-MMA6900 Firmware |
| Application Library | Freescale: Application Library for FreeMASTER Serial Communication driver V1.6 |
Video
Kit Features
- MMA6900Q: ±3.5 g (11-bit data sensitivity = 3.43 mg/digit typical at 25 degrees C)
- Low detection threshold of 8.6 mg (acceleration) or >= 0.5 degrees (angle)
- Offset tolerance value at 25 degrees C (+/- 30 mg) and over temperature (+/-50 mg)
- Embedded signal processing including fault and overload diagnostic flagging
- 11-bits SPI-compatible digital data output
- Wide operating temperature range from -40 degrees C to +105 degrees C
- Over-damped transducer
- Robust 6 x 6 mm QFN package with greater than 100 kHz package resonance frequency
- Sensitivity in X and Y axes
- ±3.5 or ±5.0g full-scale range per axis
- AEC-Q100 qualified, Rev. G, grade 2 (-40 < TA < 105 °C)
- 50 Hz second order low-pass filter
- SPI-compatible serial interface
- Capture/hold input for system-wide synchronization support
- 3.3 or 5.0V single supply operation
- On-chip temperature sensor and voltage regulator
- Bi-directional internal self-test
- Minimal external component requirements
- Pb-free 16-pin QFN package
- Pulse-code modulated output available for device evaluation
Kit Contents
The Freescale's TWRPI-MMA6900TWRPI-MMA6900 is supplied with below contents:
- Plug-in Board
