 | Kit Overview
The Analog Devices ADF702X Development Kit (EVAL-ADF70XXMBZ2EVAL-ADF70XXMBZ2) provides the hardware and software to both evaluate and develop a low power, low data rate, wireless network using any of the ADF702XADF702X ISM band transceivers with the ADIismLink proprietary protocol. The kit provides the ADIismLink communication protocol intended for use in the license-free ISM bands and adheres to the regulations specified by ETSI (433MHz & 868MHz) and the frequency hopping requirements of FCC 15.247 (902-928MHz).
The platform allows straightforward yet comprehensive configuration of the PHY and MAC layers of the ADIismLink protocol using the provided application software. This allows the user to investigate the trade-offs in protocol performance and also modify the protocol to suit their application. A restricted set of the ADIismLink source code is also provided allowing a developer to build their own application specific network.The kit provides several demonstration networks, like a remote temperature sensor network, which allows the user to get a working wireless system up and running very quickly.

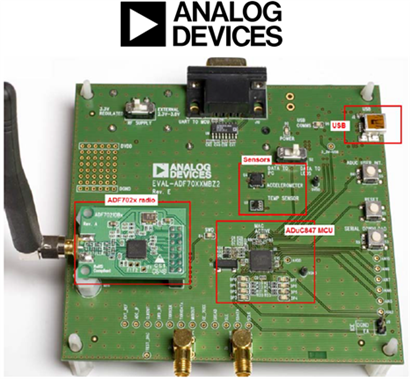

EVAL-ADF70XXMBZ2EVAL-ADF70XXMBZ2 mother board consists of a Cypress USB controller, an ADuC847 microconverter, power management, various interfaces and sensors. The ADIismLINK protocol runs on the ADuC847 microconverter. The EVAL-ADF70XXMBZ2EVAL-ADF70XXMBZ2 mother board will come with the protocol pre-programmed on to the ADuC847. The RF module (ADF702x evaluation board) connects to this controller board and is available separately. The board can be powered from either the USB, a 3.6V battery or a 9V supply.
The RF module, which is plugged into the mother board, consists of the ADF702XADF702X device, output matching circuit optimized for operation in a certain frequency band, harmonic filter, PLL loop filter, de-coupling and xtal. This RF module provides a low-cost, optimally matched RF reference design which you can use as a starting point for your design. A low-cost BOM is achieved by using a 2-layer PCB, a low-cost xtal, and a simple combined output matching circuit which eliminates the need for an external antenna switch.
Key Applications: wireless sensor, telemetry and alarm applications. | |||||||||||
| ||||||||||||
Software Tools

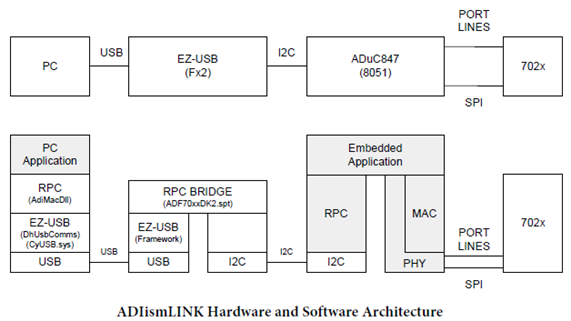

ADIsimLINK
The platform provides an "air-interface" communication protocol that can be used in either licensed or license free ISM bands and can adhere to the regulations specified by ETSI EN300-220-1 and ERC-REC 70-03 (433MHz & 868MHz) and FCC 15.247 (902-928MHz). This includes support for both ETSI and FCC compliant frequency hopping.
The platform allows straightforward yet comprehensive configuration of the ADF702XADF702X transceiver, the Physical Layer (PHY) and the Media Access Control (MAC) layer of the ADIismLINK protocol using the application software provided. This allows the user to investigate the various trade-offs in protocol performance and also tailor the protocol parameters to suit their application.
ADF70xxHost.exe (Target Application Software)
This application, written in Visual C++, is used to configure the ADF702XADF702X transceiver and ADIismLINK protocol via the USB connection. ADIismLINK configurations are stored as ASCII .ini files and a number of pre-set configurations are provided with the development kit. These support various members of the ADF702XADF702X series configured at a range of BAUD rates and modulation modes.
The various demonstrations integrated into the ADIismLINK target software (e.g. dummy data, accelerometer sensor, temperature sensor, range testing etc.) can be configured from within the ADF70xxHost application.
Technical Documents
Learning Center
Design Elements
| Type | Description |
|---|---|
| Application Library | ADI: Software Code for ADF7020 using an 8052 based microcontroller |
| Application Library | ADI: Software Code for configuration of the ADF7020 using the ADSP-BF53X, Blackfin DSP processor |
| Application Library | ADI: Software Code for ADF7021 transceiver |
Video
Kit Features
Key Features for EVAL-ADF70XXMBZ2EVAL-ADF70XXMBZ2 Development Platforms:
- ETSI 868/433MHz duty cycled protocol and FCC 902-928MHz Frequency Hopping protocol.
- Management of Tx duty-cycle for operation in ETSI 868/433MHz ISM bands.
- On-air data rates of up to 38.4kbps.
- Uplink (EP to BS) initiated data transfer allows for maximum power saving in the EP. (Ideal for wireless sensor, telemetry and alarm applications.)
- Star Network Topology, 1 Base Unit & up to 255 remote End Points.
- PHY and MAC layers of ADIismLink highly configurable in application software.
- ADIismLink restricted source code provided to allow user specific applications to be developed.
- Several demonstration networks provided including a temperature sensor network.
- Allows out of the box range testing.
- Application software provided to allow easy evaluation and development.
- Detailed documentation explaining the hardware, software and protocol.
Kit Contents
The ADF702X Development Kit ( EVAL-ADF70XXMBZ2EVAL-ADF70XXMBZ2) includes the following:
- 1 x mother board (EVAL-ADF70XXMBZ2EVAL-ADF70XXMBZ2) with the ADIismLINK firmware pre coded into the ADuC847 micrcontroller
- 3.6V Lithium battery
- USB cable
- Serial Port Cable
- Demo/Evaluation Software (ADF70xxHost)
- Application Development Code (binary library with C header files)
- Comprehensive Documentation
- And register configuration software that is independent of ADIismLINK and is used for in depth RF testing/evaluation of the ADF70XX device
The following is also necessary for a working network and is available separately:
- 1 x ADF702X RF Daughter Board
| Board Number | RF Band | Rx Data Rate | Tx Data Rate | Loop Bandwidth |
|---|---|---|---|---|
| EVAL-ADF7020DBZ1 | 902 MHz to 928 MHz | Up to 200 kbps | Up to 50 kbps | 50 kHz |
| EVAL-ADF7020DBZ2 | 862 MHz to 870 MHz | Up to 200 kbps | Up to 50 kbps | 50 kHz |
| EVAL-ADF7020DBZ3 | 433 MHz to 445 MHz | Up to 200 kbps | Up to 50 kbps | 50 kHz |
| EVAL-ADF7020-1DBZ4EVAL-ADF7020-1DBZ4 | 405 MHz to 435 MHz | Up to 200 kbps | Up to 50 kbps | 50 kHz |
| EVAL-ADF7020-1DBZ6 | 470 MHz to 510 MHz | Up to 200 kbps | Up to 50 kbps | 50 kHz |
| EVAL-ADF7020-1DBZ7 | 310 MHz to 340 MHz | Up to 200 kbps | Up to 50 kbps | 50 kHz |
| EVAL-ADF7020-1DBZ8 | 128 MHz to 142 MHz | Up to 200 kbps | Up to 50 kbps | 50 kHz |
| EVAL-ADF7020-1DBZ5EVAL-ADF7020-1DBZ5 | RF Match/Loop filter not inserted | -- | -- | -- |
| EVAL-ADF7021DBZ2 | 862 MHz to 870 MHz | Up to 25 kbps | Up to 25 kbps | 90 kHz |
| EVAL-ADF7021DBZ3EVAL-ADF7021DBZ3 | 431 MHz to 470 MHz | Up to 25 kbps | Up to 25 kbps | 90 kHz |
| EVAL-ADF7021DBJZ | 426 MHz to 429 MHz | Up to 25 kbps | Up to 25 kbps | 90 kHz |
| EVAL-ADF7021DBZ6 | 608 MHz - 614 MHz | Up to 25 kbps | Up to 25 kbps | 90 kHz |
| EVAL-ADF7025DBZ1 | 902 MHz to 928 MHz | Up to 384 kbps | Up to 384 kbps | 270 kHz |
For a full working network with 1 Base Unit and 2 End Points the following is required:
- 3 x ADF70XXMBZ2 Mother Boards
- 3 x ADF702x RF daughter card
