Analog Devices: EVAL-ADuM4160EBZ iCoupler Evaluation Board

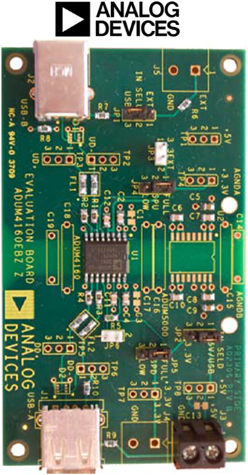

Kit Overview   The Analog Devices has introduced the ADuM4160ADuM4160 and ADuM3160ADuM3160 USB isolators to address the difficult task of isolating the bus. The EVAL-ADuM4160EBZEVAL-ADuM4160EBZ USB isolator evaluation board was constructed to allow an easy interface to existing applications by standard cabling or discrete wiring.   The USB evaluation board comes populated with an ADuM4160; however, because the ADuM4160ADuM4160 and ADuM3160ADuM3160 are electrically identical and pin compatible, any evaluation done with this board and component applies directly to the ADuM3160. If for some reason the user wants to substitute theADuM3160 on the PCB, no other changes are required.   The design goals of this evaluation platform are to Connect to systems through standard USB Type A and Type B connectors. Draw power from the USB host or from an external 5.0 V or 3.3 V power supply. Support isolated power for the downstream interface through an ADuM5000ADuM5000 isoPower dc-to-dc converter. Support external downstream power from a 5 V or 3.3 V power supply. Provide test points for all power and signal paths. Support low and full speed communications. Support enumeration control. Support external ESD protection. Support common-mode chokes in the xD+/xD− lines. Support ferrite inductors in the VBUSx and GNDx lines.   Key Applications: USB peripheral isolation, Isolated USB hub, Medical applications

More Development Kits and Tools Development Kits Development Tools Development Platforms & Kits element14 Knode

Technical Documents

Learning Center

Design Elements

Back to top

Video

Video 1

Video 2

You don't have permission to edit metadata of this video. Edit media Dimensions x Small Medium Large Custom Subject (required) Brief Description Tags (separated by comma) Video visibility in search results Visible Hidden Parent content Analog Devices: CN0158 Reference Design for Universal Serial Bus Hub Isolator Circuit Analog Devices: CN0159 Reference Design for Universal Serial Bus Cable Isolator Circuit Analog Devices: EVAL-ADUM4160EBZ USB Isolator Board for the ADuM3160 and ADuM4160 Analog Devices: CN0160 Reference Design for Universal Serial Bus Peripheral Isolator Circuit Analog Devices: EVAL-ADuM4160EBZ iCoupler Evaluation Board Poster Upload Preview Ok Cancel

You don't have permission to edit metadata of this video. Edit media Dimensions x Small Medium Large Custom Subject (required) Brief Description Tags (separated by comma) Video visibility in search results Visible Hidden Parent content Analog Devices: EVAL-ADUMQSEBZ Evaluation Board for iCoupler®︎ Digital Isolators Analog Devices: EVAL-ADuM4160EBZ iCoupler Evaluation Board Poster Upload Preview Ok Cancel

Back to top

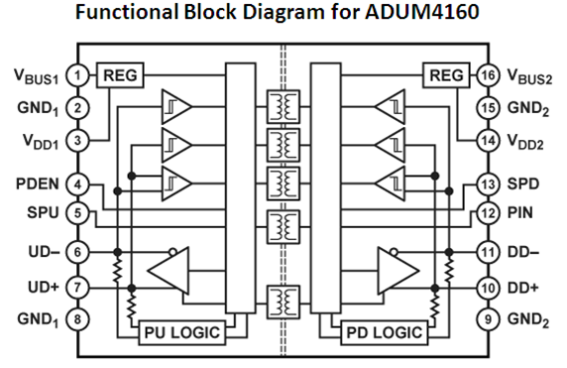

Kit Features

Key Features of the isolator include the following:

• The ADuM4160ADuM4160 and ADuM3160ADuM3160 provide support for full speed and low speed data communications by interfacing directly with the USB xD+ and xD− lines. The parts are designed to be transparent to USB data traffic other than adding about as much delay as a hub and cable.
• Built-in voltage regulators allow the ADuM4160 and ADuM3160 to draw power from either 5 V or 3.3 V sources.
• Application of the upstream pull-up resistor is under the control of a downstream pin, PIN (Pin 12).
• The operating speed of the isolator is set by pins on the upstream and downstream sides of the part, SPU and SPD (Pin 5 and Pin 13, respectively).
• The upstream side of the isolator includes Pin 1 through Pin 8, is connected to the left side of the evaluation board, and interfaces through a Type B connector.
• The downstream facing side includes Pin 9 through Pin 16, is connected to the right side of the evaluation board, and interfaces through a Type A connector.
• The evaluation board allows configuration of all of the features of the ADuM4160/ADuM3160 chip and provides support for a variety of possible power schemes.
• The board also allows common-mode voltages; however, it is not recommended for performing safety related testing, such as high voltage withstand testing. Perform this type of testing on the component level or on a production board.

Features for ADuM4160ADuM4160 Full/Low Speed 5 kV USB Digital Isolator:

• USB 2.0 compatible
• Low and full speed data rate: 1.5 Mbps and 12 Mbps
• Bidirectional communication
• 4.5 V to 5.5 V VBUS operation
  • 7 mA maximum upstream supply current @ 1.5 Mbps
  • 8 mA maximum upstream supply current @ 12 Mbps
  • 2.3 mA maximum upstream idle current
• Upstream short-circuit protection
• Class 3A contact ESD performance per ANSI/ESD STM5.1-2007
• High temperature operation: 105°C
• High common-mode transient immunity: >25 kV/μs

Back to top

Kit Contents

The Analog Devices EVAL-ADuM4160EBZEVAL-ADuM4160EBZ iCoupler Evaluation Board is supplied with below contents:

• Evaluation Board
