Analog Devices: AD9910/PCBZ Evaluation Board for AD9910 1 GSPS DDS with 14-Bit DAC

BUY NOWBUY NOWTechnical DocumentsVideoFeaturesKit Contents


Kit Overview

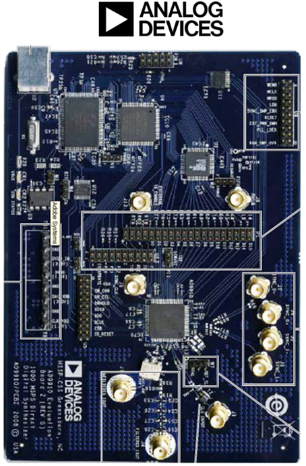

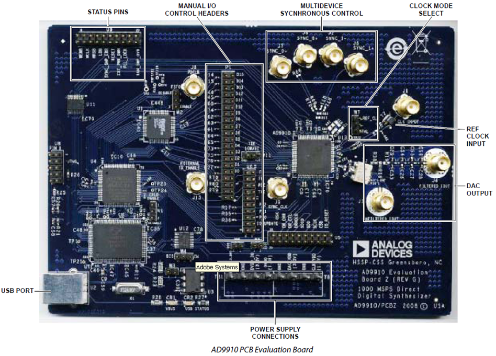

The Analog Devices AD9910/PCBZAD9910/PCBZ Evaluation Board uses AD9910AD9910 which is a 1 GSPS DDS with a 14-bit DAC. The evaluation board software provides a graphical user interface (GUI) for easy communication with the device along with many user-friendly features such as the mouse-over effect.



TheAD9910AD9910 1 GSPS, 14-Bit, 3.3 V CMOS Direct Digital Synthesizer:


  • The AD9910 is a direct digital synthesizer (DDS) featuring an integrated 14-bit DAC and supporting sample rates up to 1 GSPS.
  • The AD9910 employs an advanced, proprietary DDS technology that provides a significant reduction in power con-sumption without sacrificing performance. The DDS/DAC combination forms a digitally programmable, high frequency, analog output synthesizer capable of generating a frequency agile sinusoidal waveform at frequencies up to 400 MHz.
  • The user has access to the three signal control parameters that control the DDS: frequency, phase, and amplitude. The DDS provides fast frequency hopping and frequency tuning resolu-tion with its 32-bit accumulator. With a 1 GSPS sample rate, the tuning resolution is ~0.23 Hz. The DDS also enables fast phase and amplitude switching capability.
  • The AD9910 is controlled by programming its internal control registers via a serial I/O port.
  • The AD9910 includes an integrated static RAM to support various combinations of frequency, phase, and/or amplitude modulation.
  • The AD9910 also supports a user defined, digitally controlled, digital ramp mode of operation. In this mode, the frequency, phase, or amplitude can be varied linearly over time. For more advanced modulation functions, a high speed parallel data input port is included to enable direct frequency, phase, amplitude, or polar modulation.
  • The AD9910 is specified to operate over the extended industrial temperature range



Key Applications: Agile local oscillator (LO) frequency synthesis, Programmable clock generators, FM chirp source for radar and scanning systems, Test and measurement equipment, Acousto-optic device drivers, Polar modulators, Fast frequency hopping

More Development Kits and Tools
imageMore Analog Devices Analog Development KitsimageAnalog Devices MCU based Development Kits
imageDevelopment Platforms & Kitsimageelement14 Knode



Technical Documents

Learning Center
TypeDescription
User GuideADI: User Guide for AD9910/PCBZ Evaluation Board
DatasheetADI: Datasheet for AD9910 - 1 GSPS, 14-Bit, 3.3 V CMOS Direct Digital Synthesizer
Design TechniquesADI: Circuit Note (CN-0121) for Synchronizing Multiple AD9910 1 GSPS Direct Digital Synthesizers
Application NoteADI: AN-953 - Application Note for Direct Digital Synthesis (DDS) with a Programmable Modulus



Design Elements
TypeDescription
LayoutADI: Layout File for AD9910
SchematicsADI: Schematics file for AD9910
BOMADI: BOM File for AD9910
Simulation ModelADI: AD9910 IBIS Model
Application LibraryADI: Software Code for AD9910
