Kit Overview
The Analog Devices ADIS16209/PCBZADIS16209/PCBZ is a "breakout boad that provides
The ADIS16209CCCZADIS16209CCCZ is a fully-calibrated, digital MEMS inclinometer, which provides a serial peripheral interface (SPI) for all digital communications. It is in a 16-lead, LGA package that minimizes board space but does not support typical prototype soldering processes.

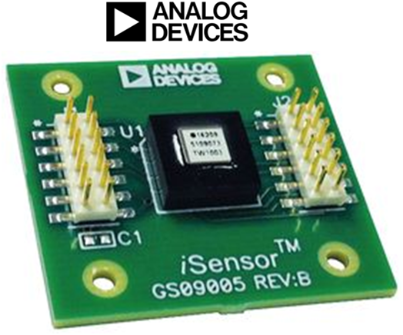

The interface PCB provides access to the ADIS16209CCCZADIS16209CCCZ, using dual-row, 12-pin connectors, which supports standard ribbon cable systems and hand-soldering connection techniques.
The ADIS16209/PCBZADIS16209/PCBZs are simple evaluation boards that provide convenient access to the ADIS16209 High Accuracy, Dual-Axis Digital Inclinometer and Accelerometer, using a standard 2 mm, 2 × 6, connector interface. These connectors can be accessed using a variety of cable options, including standard 1 mm ribbon cables.
The ADIS16209/PCBZADIS16209/PCBZ is designed to be evaluated in an existing digital platform (such as MCU, DSP, FPGA, PLD) or as part of the ADISEVAL system. Four mounting holes (sized for 2-56 or 2 mm screws) have been provided to secure the board during evaluation.
Key Applications: Platform control, stabilization, and alignment, Tilt sensing, inclinometers, leveling, Motion/position measurement, Monitor/alarm devices (security, medical, safety), Navigation | ||||||||||||
|
Technical Documents
Learning Center
Design Elements
Type | Description |
---|---|
Application Library | ADI: Evaluation Software for ADIS16209/PCBZ Breakout Board |
CAD Model | ADI: CAD Model for ADIS16209CCCZ |
Video
Kit Features

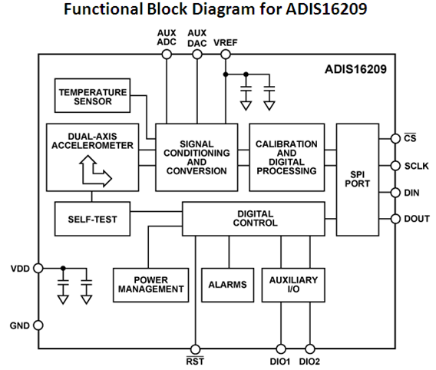

Key Features for ADIS16209ADIS16209 High Accuracy, Dual-Axis Digital Inclinometer and Accelerometer:
- Dual-mode inclinometer system
- Dual-axis, horizontal operation, ±90°
- Single-axis, vertical operation, ±180°
- High accuracy, 0.1°
- Digital inclination data, 0.025° resolution
- Digital acceleration data, 0.244 mg resolution
- ±1.7 g accelerometer measurement range
- Digital temperature sensor output
- Digitally controlled bias calibration
- Digitally controlled sample rate
- Digitally controlled frequency response
- Dual alarm settings with rate/threshold limits
- Auxiliary digital I/O
- Digitally activated self-test
- Digitally activated low power mode
- SPI-compatible serial interface
- Auxiliary 12-bit ADC input and DAC output
- Single-supply operation: 3.0 V to 3.6 V
- 3500 g powered shock survivability
Kit Contents
The Analog Devices ADIS16209/PCBZADIS16209/PCBZ Breakout Board is supplied with below contents:
- Evaluation Board
