Microchip: MPLAB X Integrated Development Environment (IDE)

Ordering InformaionKey FeaturesLicensing & System Req.Language ToolsDebuggers and ProgrammersVideoTechnical Documents






Other Resources
imageMicrochip Development Kits
imageMicrochip Overview
imageelement14 Knode
Overview



The MPLAB X IDE is the new graphical, integrated debugging tool set for all of Microchip’s more than 800 8-bit, 16-bit and 32-bit MCUs and digital signal controllers, and memory devices. It includes a feature-rich editor, source-level debugger, project manager, software simulator, and supports Microchip’s popular hardware tools, such as the MPLAB ICD 3 in-circuit debugger, PICkitTm 3, and MPLAB PM3 programmer. Based on the open-source NetBeans platform, MPLAB X runs on WindowsRegistered OS, MACRegistered OS and Linux, supports many third-party tools, and is compatible with many NetBeans plug-ins.



MPLABRegistered X IDE is a software program that runs on a PC (WindowsRegistered, Mac OSRegistered, LinuxRegistered) to develop applications for Microchip microcontrollers and digital signal controllers. It is called an Integrated Development Environment (IDE), because it provides a single integrated “environment” to develop code for embedded microcontrollers.



MPLABRegistered X Integrated Development Environment brings many changes to the PICRegistered microcontroller development tool chain. Unlike previous versions of MPLABRegistered which were developed completely in-house, MPLABRegistered X is based on the open source NetBeans IDE from Oracle. Taking this path has allowed us to add many frequently requested features very quickly and easily while also providing us with a much more extensible architecture to bring you even more new features in the future.

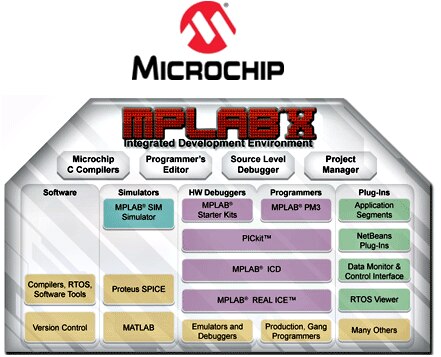

COMPONENTS OF MPLABX IDE



MPLAB X IDE includes:

  • a full-featured programmer’s text editor that also serves as a window into the debugger.
  • a project manager (visible as the Project window) that provides integration and communication between the IDE and the language tools.
  • a number of assembler/linker suites for the development of firmware for your project’s device.
  • a debugger engine that provides breakpoints, single stepping, Watch windows and all the features of a modern debugger. The debugger works in conjunction with debug tools, both software and hardware.
  • a software simulator for all PIC MCU and dsPIC DSC devices. The simulator is actually composed of several device-specific simulator executables. MPLAB X IDE decides which one to use based on your project’s device.



Optional components can be acquired or purchased to work with the MPLAB X IDE:



Compiler Language Tools

MPLAB C compilers from Microchip provide fully integrated, optimized code for PIC MCUs and dsPIC DSCs. Along with compilers from microEngineering Labs, CCS and SDCC, they are invoked by the MPLAB X IDE project manager to compile code that is automatically loaded into the target debugger for instant testing and verification.



Programmers

MPLAB PM3 programmer, PICkitTm 2, PICkit 3 and MPLAB ICD 3 in-circuit debuggers; and MPLAB REAL ICETm in-circuit emulator can program code into target devices. MPLAB X IDE offers full control over programming both code and data, as well as the Configuration bits to set the various operating modes of the target microcontrollers or digital signal controllers.



In-Circuit Debuggers and Emulators

PICkitTm 2, PICkit 3 and MPLAB ICD 3 in-circuit debuggers, and MPLAB REAL ICETm in-circuit emulator can be used to debug application code on target devices. By using some of the on-chip resources, they can download code into a target microcontroller inserted in the application, set breakpoints, single step and monitor registers and variables. The emulator includes additional debug features, such as trace.



Plug-In Tools

Several plug-ins are available to add to the capabilities for MPLAB X IDE. For example, the Data Monitor and Control Interface (DMCI) provides a mechanism to view and control variables in code and change their values real-time. It also allows you to view output data in a graphical format.

Key Features


MPLAB X Features:

  • Provides a new Call Graph for navigating complex code
  • Supports Multiple Configurations within your projects
  • Supports Multiple Versions of the same compiler
  • Support for multiple Debug Tools of the same type
  • Supports Live Parsing
  • Import existing MPLABRegistered 8 projects and use either IDE for the same source
  • Supports hyperlinks for fast navigation to declarations and includes
  • Supports Live Code Templates
  • Supports the ability to enter File Code Templates with license headers or template code
  • MPLABRegistered X can Track Changes within your own system using local history
  • Within MPLABRegistered X, a user can configure their own Code Format Style



Back to Top

Licensing & System Req.


No licensing is required for MPLABX IDE as it's a free integrated toolset available for the development of embedded applications on Microchip's PIC MCUs and dsPIC DSCs.



Suported Platforms: Windows, Mac OS and Linux.




Back to Top

Language Tools


Choose MPLABRegistered X C Compilers, the highly optimized compilers for the PIC18 series microcontrollers, high performance PIC24 MCUs, dsPIC digital signal controllers and PIC32MX MCUs. Or, use one of the many products from third party language tools vendors. Most integrate into MPLABRegistered X IDE to function transparently from the MPLAB project manager, editor and debugger. Microchip’s MPLAB C compilers are full-featured, ANSI compliant high-performance tools tightly integrated with MPLABRegistered X IDE. Source level debugging allows single stepping through C source code and inspecting variables and structures at critical points in the code.image


Microchip MPLABRegistered C Compliers

  • MPLABRegistered C Compiler for PIC18 MCUs (C compiler for PIC18)
  • MPLABRegistered C Compiler for PIC24 MCUs (C compiler for PIC24)
  • MPLABRegistered C Compiler for dsPIC DSCs (C compiler for dsPIC)
  • MPLABRegistered C for PIC32 MCUs (C compiler for  PIC32)


Third Party Compilers

  • HI-TECH
  • IAR
  • CCS
  • Micrium



Flowcode

Flowcode 5 is one of the worlds most advanced graphical programming languages for microcontrollers. The great advantage of Flowcode is that it allows those with little to no programming experience to create complex electronic systems in minutes. Flowcode supports code generation for the PIC (Flowcode for PIC12, PIC16, and PIC18 seriesFlowcode for PIC12, PIC16, and PIC18 series), PIC24 and dsPIC series of microcontrollers. The professional edition includes drivers for a wide range of subsystems like LCDs, keypads, 7-segment displays, ADC, and PWM, as well as communication protocols including I2C, SPI, RS-232, Zigbee, TCP/IP, etc. Flowcode is compatible with Microchips PICkit programmer as well as third party programmers, and is also compatible with the HI-TECH C compiler.




Back to Top

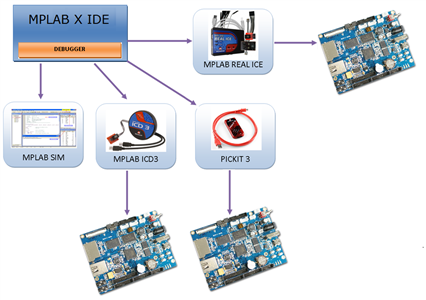

Debuggers and Programmers





MPLABRegistered X IDE offers full control over programming both code and data, as well as the Configuration bits to set the various operating modes of the target microcontrollers or digital signal controllers.



MPLABRegistered SIM: High-speed software simulator features  peripheral simulation, complex stimulus injection and  register logging. MPLABRegistered SIM executes your code and can be  exercised with stimulus signals from fi les, from mouse clicks  and from easily set up waveforms. The contents of variables  and special function registers can be logged to a file for analysis.



PICKit 3 ICD: The PICkit 3 Debug Express allows debugging  and programming of PIC Flash microcontrollers  and dsPIC DSCs using the powerful graphical  user interface of the MPLABRegistered X Integrated  Development Environment (IDE).



MPLABRegistered ICD 3: MPLAB ICD 3 In-Circuit Debugger System is  Microchip's most cost effective high-speed hardware debugger/programmer for  Microchip Flash Digital Signal Controller  (DSC) and microcontroller (MCU) devices.  It debugs and programs PIC Flash microcontrollers and  dsPIC DSCs with the powerful, yet easy-to-use graphical user  interface of MPLABRegistered X Integrated Development Environment (IDE).  The MPLABRegistered ICD 3 In-Circuit Debugger probe is connected  to the design engineer's PC using a high-speed USB 2.0  interface and is connected to the target with a connector  compatible with the MPLABRegistered REAL ICE systems (RJ-11). It provides an economic alternative to an emulator. By using some of the on-chip resources, MPLABRegistered ICD 3 can download code into a target microcontroller inserted in the application, set breakpoints, single step and monitor registers and variables.



MPLABRegistered REAL ICE: MPLAB REAL ICE In-Circuit Emulator  System is Microchip’s next generation high  speed emulator for Microchip Flash DSC  and MCU devices. It debugs and programs  PIC and dsPIC Flash microcontrollers with  the easy-to-use but powerful graphical user interface of the  MPLAB Integrated Development Environment (IDE), included  with each kit.



The MPLABRegistered REAL ICE probe is connected  to the design engineer's PC using a high-speed USB 2.0  interface and is connected to the target with either a connector compatible with the popular MPLABRegistered ICD 3 system  (RJ11) or with the high speed, noise tolerant, low voltage  differential signal (LVDS) interconnection (CAT5). MPLABRegistered REAL ICE is field upgradeable through future  firmware downloads in MPLABRegistered X IDE.



Back to top

Video


Video 1Video 2Video 3
You don't have permission to edit metadata of this video.
Edit media
x
Upload Preview
You don't have permission to edit metadata of this video.
Edit media
x
Upload Preview
You don't have permission to edit metadata of this video.
Edit media
x
Upload Preview



Back to top

Technical Documents


Learning Center

TypeDescription
Quick Start GuideMicrochip: Getting Started with MPLAB C18 v3 C Compiler
Product BriefMicrochip: Product Overview of MPLAB REAL ICE
Product BriefMicrochip: How to Set the MPLAB PM3
Design Elements



TypeDescription
Application LibraryMicrochip: Sample Code for A/D Converter Demonstration for the 18CXXX
Application LibraryMicrochip: Sample Code for PIC32 MEB Graphics (QVGA) Lib
Application LibraryMicrochip: CE117 - Using the DMA with DCI peripheral for I2S driver ( Audio & Speech - Playback )
Application LibraryMicrochip: CE034 - Sample Code for Network System CAN Loopback
Application LibraryMicrochip: CE031 - Sample Code for dsPIC for SMPS ADC Triggered by PWM
