Linear Technology: DC1459B for LTC3588 Piezoelectric Energy Harvesting Power Supply

BUY NOWBUY NOWTechnical DocumentsVideoFeaturesKit Contents


Kit Overview

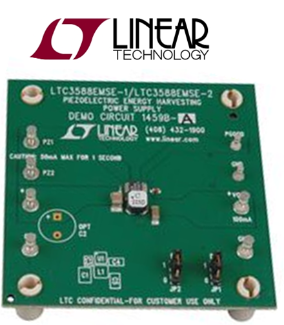

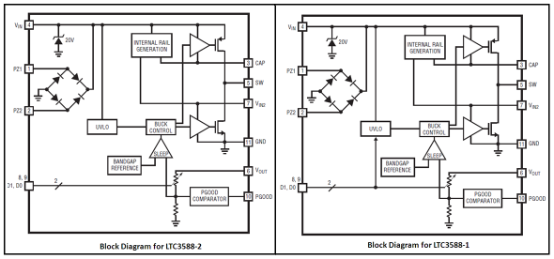

Demonstration Circuit 1459B (DC1459BDC1459B) is an energy harvesting power supply featuring the LTC3588-1LTC3588-1/LTC3588-2LTC3588-2. The LTC3588 integrates a low-loss full-wave bridge with a high efficiency buck converter to form a complete energy harvesting solution optimized for high output impedance energy sources such as piezoelectric transducers.



An ultralow quiescent current undervoltage lockout mode with a wide hysteresis window allows charge to accumulate on an input capacitor until the buck converter can efficiently transfer a portion of the stored charge to the output. Four output voltages are pin selectable with up to 100mA of continuous output current. A power good comparator produces a logic high referenced to VOUT on the PGOOD pin when the converter reaches the programmed VOUT, signaling that the output is in regulation. The LTC3588EMSE-1LTC3588EMSE-1/LTC3588EMSE-2LTC3588EMSE-2 are available in a 10-lead (3mm x 3mm) MSE surface mount package with exposed pad.



Ordering Information:

MPNDescription
DC1459B-ADC1459B-ALTC3588EMSE-1LTC3588EMSE-1 Demo Board, Piezoelectric Generator Power Supply
DC1459B-BDC1459B-BLTC3588EMSE-2LTC3588EMSE-2 Demo Board ,Piezoelectric Energy Harvesting Power Supply

Key Applications: Piezoelectric Energy Harvesting, Electro-Mechanical Energy Harvesting, Low Power Battery Charging, Wireless HVAC Sensors, Mobile Asset Tracking, Tire Pressure Sensors, Battery Replacement for Industrial Sensors, Remote Light Switches, Standalone Nanopower Buck Regulator

More Development Kits and Tools
imageLinear Technology Development KitsimageMore Analog Development Kits
imageDevelopment Platforms & Kitsimageelement14 Knode



Technical Documents

Learning Center



TypeDescription
User GuideLTC: Quick Start Guide for LTC3588EMSE-1 LTC3588EMSE-2 Piezoelectric Energy Harvesting Power Supply (DEMO CIRCUIT 1459B)
DatasheetLTC: Datasheet for LTC3588-1 Piezoelectric Energy Harvesting Power Supply
Product BriefLTC: Product Brief for Piezoelectric Energy Harvesting Power Supply
Design TechniquesLTC: Design Techniques for Energy Harvester Produces Power from Local Environment Eliminating Batteries in Wireless Sensors
WhitepaperLTC: White Paper for Energy Harvester Produces Power from Local Environment, Eliminating Batteries in Wireless Sensors
Whitepaper

LTC: White Paper for True Grid Independence Robust Energy Harvesting System for Wireless Sensors Uses Piezoelectric Energy Harvesting Power Supply and Li-Poly Batteries



Design Elements



TypeDescription
SchematicsLTC: Schematic File for DC1459B
LayoutLTC: Layout File for DC1459B
BOMLTC: BOM File for DC1459B
Simulation ModelLTC: Simulation model for LTC3588
