Analog Devices: ADP2442-EVALZ Evaluation Board for ADP2442 Synchronous Step-Down DC-to-DC Regulator

Kit Overview

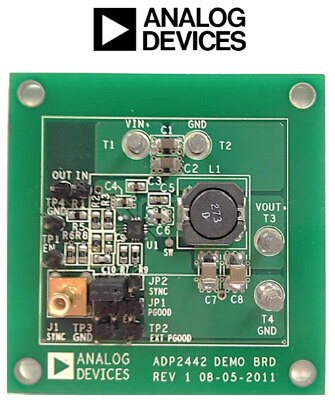

The ADP2442-EVALZADP2442-EVALZ evaluation board is a complete, dc-to-dc switching regulator design based on the ADP2442ADP2442, a configurable, 1A, synchronous, step-down dc-to-dc regulator. The ADP2442-EVALZ is available with 5 V at a 1 A output, with a switching frequency set to 500 kHz. If needed, the ADP2442-EVALZ configuration can be modified by changing the values of the appropriate passive components.

The ADP2442-EVALZADP2442-EVALZ is available with 5 V at a 1 A output, with a switching frequency set to 500 kHz. If needed, the ADP2442-EVALZ configuration can be modified by changing the values of the appropriate passive components.

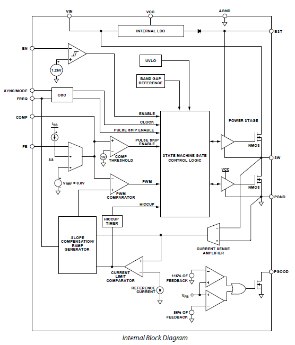

The ADP2442ADP2442 is a synchronous, step-down dc-to-dc switching regulator that uses a current mode pulse-width modulation (PWM) control scheme. The ADP2442 can be configured for pulse skip mode at light load or forced PWM mode. The power switch and synchronous rectifier are integrated for minimal external part count and high efficiency. The ADP2442 is optimized for operation with small ferrite core inductors and ceramic capacitors to deliver the maximum output power per square millimeter of the printed circuit board (PCB) area.

The ADP2442ADP2442 uses hiccup mode to protect the IC from short circuits or from overcurrent conditions on the output. The internal soft start limits inrush current during startup for a wide variety of load capacitances. Other key features include input undervoltage lockout (UVLO), thermal shutdown (TSD), and precision enable (EN), which can also be used as a logic level shutdown input.

Key Applications: Point of load applications, Distributed power systems, Industrial control supplies, Standard rail conversion
