 | Kit Overview
The Analog Devices EVAL-ADXL362Z-MLPEVAL-ADXL362Z-MLP is a complete system for real-time evaluation of the ADXL362ADXL362 micropower, 3-axis, digital-ouptut MEMS accelerometer. This system is accompanied by a graphical user interface (GUI) that facilitates evaluation of parameters such as power consumption, temperature coefficient, noise, and more. The system consists of a motherboard and a satellite board. The sensor is housed in a socket on the satellite board, enabling evaluation of multiple parts using one evaluation system.
The ADXL362ADXL362 is an ultralow power, 3-axis MEMS accelerometer that consumes less than 2 μA at a 100 Hz output data rate and 270 nA when in motion triggered wake-up mode.
To order the complete system, order the EVAL-ADXL362Z-MLPEVAL-ADXL362Z-MLP which includes a motherboard, satellite board, accelerometer, and cables. Additional satellite board kits can be ordered using the part number EVAL-ADXL362Z-SEVAL-ADXL362Z-S. Satellite kit orders include a satellite board and an accelerometer.
Ordering Information:
Key Applications: Hearing aids, Home healthcare devices, Motion enabled power save switches, Wireless sensors, Motion enabled metering devices | |||||||||||
| ||||||||||||
Software Tools
LabView environment and Evaluation System GUI
This ADXL362 evaluation system is accompanied by a graphical user interface (GUI) that facilitates evaluation of parameters such as power consumption, temperature coefficient, noise, and more. The ADXL362 Evaluation System GUI includes 4 tabs for evaluation of various paramaters:
- Real-time data: configures the inertial sensor evaluation system and the ADXL362 for real-time acceleration monitoring.
- Power consumption: View real-time power consumption under user-input settings to highlight some of the ADXL362's system-level power savings features.
- Temperature: View the effect of temperature on acceleration output.
- Configuration: Write to and read from device registers.
Technical Documents
Learning Center
Design Elements
| Type | Description |
|---|---|
| Schematics | ADI: Schematics for ADXL362 Evaluation Board |
| Reference Design | ADI: Reference Design for Avnet LX9 MicroBoard and Digilent Nexys3 Spartan-6 FPGA Board |
| Application Library | ADI: Application Library for Driver installer (ADXL362 Real-Time Evaluation System) |
| Application Library | ADI: Application Library for ADXL362 Input 3-Axis Digital Accelerometer Linux Driver |
| Application Library | ADI: Application Library for ADXL362 Sample C code and Header Files |
| CAD Model | ADI: CAD Model for ADXL362BCCZ-RL (BXL File Format) |
Video
| Video 1 | Video 2 |
|---|---|
Kit Features

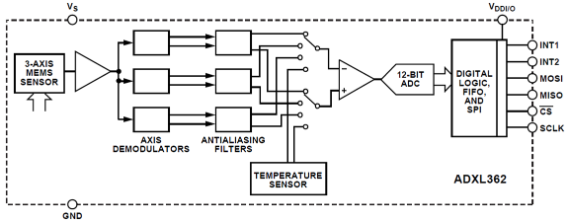

Key Features for ADXL362ADXL362 are as below:
- Ultralow power
- Power can be derived from coin cell battery
- 1.8 μA @ 100 Hz ODR, 2.0 V supply
- 3.0 μA @ 400 Hz ODR, 2.0 V supply
- 270 nA motion activated wake-up mode
- 10 nA standby current
- High resolution: 1 mg/LSB
- Built-in features for system-level power savings:
- Adjustable threshold sleep/wake modes for motion activation
Autonomous interrupt processing, without need for microcontroller intervention, to allow the rest of the system to be turned off completely
Deep embedded FIFO minimizes host processor load
Awake state output enables implementation of standalone, motion activated switch
- Low noise down to 175 μg/√Hz
- Wide supply and I/O voltage ranges: 1.6 V to 3.5 V
- Operates off 1.8 V to 3.3 V rails
- Acceleration sample synchronization via external trigger
- On-chip temperature sensor
- SPI digital interface
- Measurement ranges selectable via SPI command

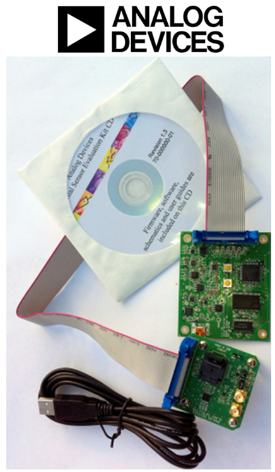

Kit Contents
The Analog Devices EVAL-ADXL362Z-MLPEVAL-ADXL362Z-MLP kit is supplied with below contents:
- Motherboard
- Satellite board
- Accelerometer and Cables
The Analog Devices EVAL-ADXL362Z-SEVAL-ADXL362Z-S Satellite kit is supplied with below contents:
- Satellite board
- Accelerometer
