 | Kit Overview

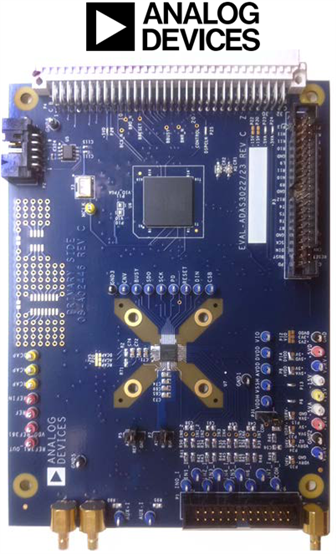

The EVAL-ADAS3022EDZEVAL-ADAS3022EDZ is an evaluation board for the ADAS3022ADAS3022 16-bit data acquisition system (DAS). This device integrates an 8-channel multiplexer, a high impedance programmable gain instrumentation amplifier (PGIA) stage with a high common-mode rejection, a precision 16-bit successive approximation (no latency) analog-to-digital converter and precision 4.096 V reference offering an aggregate throughput of 1 million samples per second (1 MSPS).
The evaluation board is designed to demonstrate the perform-ance of the ADAS3022ADAS3022 and to provide an easy-to-understand interface for a variety of system applications. A full description of this product is available in the data sheet and should be consulted when utilizing this evaluation board.
The EVAL-ADAS3022EDZEVAL-ADAS3022EDZ board operates in stand alone mode or in conjunction with the Converter Evaluation and Development board EVAL-CED1ZEVAL-CED1Z, a USB-based capture board connected to P4, the 96-pin interface. When operated with the Converter Evaluation and Development board, software is provided enabling the user to perform detailed analysis of the ADC's performance. This software includes the technical note describing the operation and set up of the evaluation board in standalone operation or when operated with the Converter Evaluation and Development board.
On-board components include a high precision, buffered band gap 4.096 V reference (ADR434ADR434), reference buffers (AD8032AD8032), passive signal conditioning circuitry, and an FPGA for deserializing the serial conversion results and configuring the ADAS3022ADAS3022 via a 4-wire serial interface. The P3 connector allows users to test their own interface with or without the optional Altera FPGA, U6 (programmed using the P2 and passive serial EEPROM, U5).
Key Applications: Multichannel data acquisition and system monitoring, Process control, Power line monitoring, Automated test equipment, Instrumentation | |||||||||||
| ||||||||||||
Software Tools
ADAS3022 Evaluation Board Software
The ADAS3022 evaluation board connects to the EVAL-CED1Z converter evaluation and demonstration board. The EVAL-CED1Z board is the controller board, which is the communi-cation link between the PC and the main evaluation board. The software for the EVAL-CED1Z is used to perform the following tests:
- Histogram tests for determining code transition noise (dc)
- Fast Fourier transforms (FFT) for signal-to-noise ratio (SNR), SNR and distortion (SINAD), total harmonic distortion (THD), and spurious free dynamic range (SFDR)
- Time domain analysis
Technical Documents
Learning Center
Design Elements
| Type | Description |
|---|---|
| Simulation Model | ADI: IBIS Model for ADAS3022 |
| CAD Model | ADI: CAD Model for ADAS3022BCPZ (BXL File Format) |
Video
Kit Features

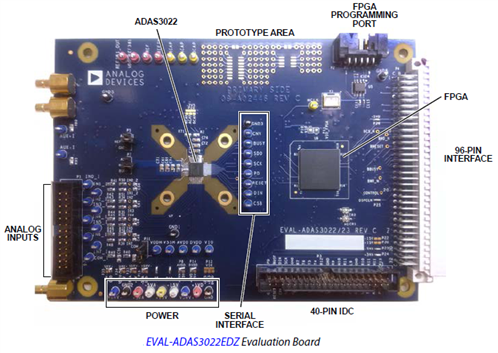

Features of EVAL-ADAS3022EDZEVAL-ADAS3022EDZ Evaluation Board:
- Full-featured evaluation board for the ADAS3022ADAS3022
- Versatile analog signal conditioning circuitry
- On-board reference, clock oscillator, and buffers
- Converter evaluation and development board (EVAL-CED1ZEVAL-CED1Z) compatible
- PC software for control and data analysis (time and frequency domain)
Features of ADAS3022ADAS3022 8-Channel Data Acquisition System:
- Ease of use - 16-bit, 1 MSPS complete data acquisition system
- High impedance, 8-channel input: >500 MΩ
- Differential input voltage range: ±24.576 V maximum
- High input common-mode rejection: >100 dB
- User-programmable input ranges
- Channel sequencer with individual channel gains
- On-chip 4.096 V reference and buffer
- Auxiliary input - direct interface to PulSAR ADC inputs
- No latency or pipeline delay (SAR architecture)
- Serial 4-wire, 1.8 V to 5 V SPI-/SPORT-compatible interface
- LFCSP package (6 mm × 6 mm)
- −40°C to +85°C industrial temperature range
Kit Contents
The Analog Devices EVAL-ADAS3022EDZEVAL-ADAS3022EDZ supplied with below contents:
- EVAL-ADAS3022EDZEVAL-ADAS3022EDZ Evaluation Board
- Software
