Analog Devices: CN0259 Reference Design for High Performance 65 MHz Bandwidth Quad IF Receiver Front End

BUY NOWBUY NOWDevelopment ToolsTechnical DocumentsVideoFeaturesKit Contents


Kit Overview

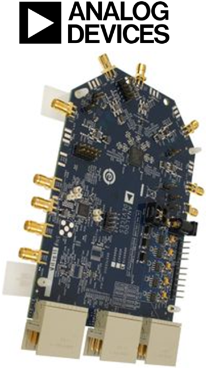

The Analog Devices circuit evaluation board EVAL-CN0259-HSCZEVAL-CN0259-HSCZ is a 65 MHz bandwidth receiver front end based on the ADL5565ADL5565 ultrahigh dynamic range differential amplifier driver and the 11-bit, 200 MSPS AD6657AAD6657A quad IF receiver.

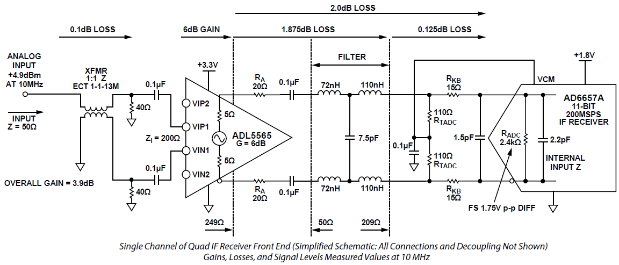

The fourth-order Butterworth antialiasing filter is optimized based on the performance and interface requirements of the amplifier and IF receiver. The total insertion loss due the filter network and other resistive components is only 2.0 dB. The overall circuit has a bandwidth of 65 MHz, with the low-pass filter having a 1 dB bandwidth of 190 MHz and a 3 dB bandwidth of 210 MHz. The pass-band flatness is 1 dB.



The circuit is optimized to process a 65 MHz bandwidth IF signal centered at 140 MHz with a sampling rate of 184.32 MSPS. The SNR and SFDR measured with a 140 MHz analog input across the 65 MHz band are 70.1 dBFS and 80.9 dBc, respectively.



The AD6657AAD6657A is an 11-bit, 200 MSPS, quad channel intermediate frequency (IF) receiver specifically designed to support multiple antenna systems in telecommunication applications where high dynamic range performance, low power, and small size are desired.



This circuit uses the EVAL-CN0259-HSCZEVAL-CN0259-HSCZ circuit board and the HSC-ADC-EVALCZHSC-ADC-EVALCZ FPGA-based data capture board. The two boards have mating high speed connectors, allowing for the quick setup and evaluation of the circuit's performance. The EVAL-CN0259-HSCZ board contains the circuit evaluated as described in this note, and the HSC-ADC-EVALCZ data capture board is used in conjunction with Visual Analog evaluation software, as well as the SPI Controller software to properly control the ADC and capture the data



Key Applications: Communications, Radar

More Development Kits and Tools
imageMore Analog Devices Analog Development KitsimageAnalog Devices MCU based Development Kits
imageDevelopment Platforms & Kitsimageelement14 Knode



Development Tools


Hardware Tools

  • FPGA Based Data Capture Kit (HSC-ADC-EVALCZHSC-ADC-EVALCZ)
  • CN-0259 evaluation board (EVAL-CN0259-HSCZEVAL-CN0259-HSCZ)



Software Tools

  • VisualAnalog Converter Evaluation Tool
  • SPI Controller: control advanced features on high speed, analog-to-digital converters (ADC) with SPI capability



Back to top



Technical Documents


Learning Center



TypeDescription
User ManualADI: User Manual for CN-0259 High Performance 65 MHz Bandwidth Quad IF Receiver with Antialiasing Filter and 184.32 MSPS Sampling Rate
User GuideADI: User Guide (UG-232) for Evaluating the AD6642/AD6657 Analog-to-Digital Converters
DatasheetADI: Datasheet for AD6657A Quad IF Receiver (Rev 0)
DatasheetADI: Datasheet for ADL5565 6 GHz Ultrahigh Dynamic Range Differential Amplifier (Rev C)
Application NoteADI: Application Note (AN-835) for Understanding High Speed ADC Testing and Evaluation
Application NoteADI: Application Note (AN-932) for Power Supply Sequencing



Design Elements



TypeDescription
SchematicsADI: Schematics for EVAL-CN0259-HSCZ Evaluation Board
LayoutADI: Layout File for EVAL-CN0259-HSCZ
BOMADI: BOM File for EVAL-CN0259-HSCZ Evaluation Board



Back to top



Video



Back to top



Kit Features



Key feature for AD6657AAD6657A are as below:

  • 11-bit, 200 MSPS output data rate per channel
  • Integrated noise shaping requantizer
  • Performance with NSR enabled
    • SNR: 76.0 dBFS in 40 MHz band to 70 MHz at 185 MSPS
    • SNR: 73.6 dBFS in 60 MHz band to 70 MHz at 185 MSPS
    • SNR: 72.8 dBFS in 65 MHz band to 70 MHz at 185 MSPS
  • Performance with NSR disabled
    • SNR: 66.5 dBFS to 70 MHz at 185 MSPS
    • SFDR: 88 dBc to 70 MHz at 185 MSPS
  • Low power: 1.2 W at 185 MSPS
  • 1.8 V analog supply operation
  • 1.8 V LVDS (ANSI-644 levels) output
  • 1-to-8 integer clock divider
  • Internal ADC voltage reference
  • 1.75 V p-p analog input range (programmable to 2.0 V p-p)
  • Differential analog inputs with 800 MHz bandwidth
  • 95 dB channel isolation/crosstalk
  • Serial port control
  • User-configurable built-in self test (BIST) capability
  • Energy saving power-down modes



Back to top

Kit Contents




The Analog Devices EVAL-CN0259-HSCZEVAL-CN0259-HSCZ is supplied with below contents:

  • Evaluation Board





Back to top
