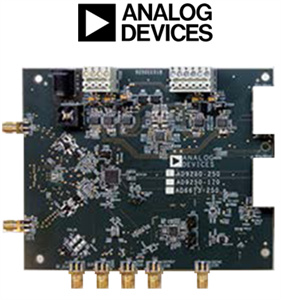

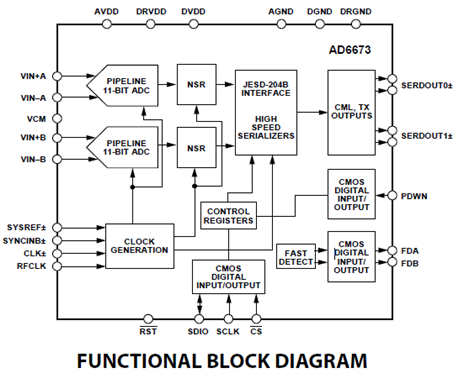

Kit Overview   The AD6673-250EBZAD6673-250EBZ is the AD6673AD6673 evaluation board that can be used to evaluate Analog Devices high speed  AD6673-250AD6673-250 ADC. The AD6673-250EBZAD6673-250EBZ board and companion HSC-ADC-EVALDZHSC-ADC-EVALDZ high-speed data capture card comprise a signal performance-optimized complete evaluation system for the AD6673AD6673. The captured data can be analyzed using a laptop computer and ADI’s free VisualAnalog software.   The AD6673AD6673 is an 11-bit, 250 MSPS, dual-channel intermediate frequency (IF) receiver specifically designed to support multi-antenna systems in telecommunication applications where high dynamic range performance, low power, and small size are desired.   The AD6673AD6673 consists of two high performance analog-to-digital converters (ADCs) and noise shaping requantizer (NSR) digital blocks. Each ADC consists of a multistage, differential pipelined architecture with integrated output error correction logic, and each ADC features a wide bandwidth switched capacitor sampling network within the first stage of the differential pipeline. An integrated voltage reference eases design considerations. A duty cycle stabilizer (DCS) compensates for variations in the ADC clock duty cycle, allowing the converters to maintain excellent performance.   Key Applications: Diversity radio systems, Multimode digital receivers (3G)  TD-SCDMA, WiMax, WCDMA, CDMA2000, GSM, EDGE, LTE, DOCSIS 3.0 CMTS upstream receive paths,HFC digital reverse path receivers, I/Q demodulation systems, Smart antenna systems, Electronic test and measurement equipment, RADAR receivers, COMSEC radio architectures, IED detection/jamming systems, General-purpose software radios, Broadband data applications.

More Development Kits and Tools More Analog Devices Analog Development Kits Analog Devices MCU based Development Kits Development Platforms & Kits element14 Knode

Software Tools

VisualAnalog Converter Evaluation Tool

VisualAnalog is a new way to test and characterize data converters, ADCs, and DACs alike. It provides the ability to customize the tests in a nearly limitless manner using a simple graphical user interface. VisualAnalog interfaces seamlessly with the DAC pattern generator (DPG) for DAC evaluation and the following ADC data capture boards for ADC evaluation:

• HSC-ADC-EVALA
• HSC-ADC-EVALB
• HSC-ADC-EVALCHSC-ADC-EVALC
• HSC-ADC-EVALDZHSC-ADC-EVALDZ

SPIController - High Speed ADC SPI Control Software

The high speed ADC SPI program allows the user to control advanced features on high speed, analog-to-digital converters (ADC) with SPI capability. This advanced controller program is used in conjunction with the high speed data capture boards and and specific device evaluation boards to manipulate and control SPI-accessible features. The SPI Controller program can run as a standalone application on a Windows platform, or in conjunction with any available data analysis tool, such as VisualAnalog or ADC Analyzer.

The software includes advanced features to ensure a smooth transition from evaluation into prototyping and production. When a desired configuration is attained, the program includes a C-code generator that provides compatible C source code that can be incorporated into customer-developed software. For users without an available microcontroller, the software also includes an assembly code generator that produces code targeted for the ultralow cost PIC12F629 microcontroller.
