Analog Devices: EVAL-ADuM5010EBZ Evaluation Board for the ADuM5010/ADuM6010 Isolated DC/DC Converter

BUY NOWBUY NOWTechnical DocumentsVideoFeaturesKit Contents


Kit Overview

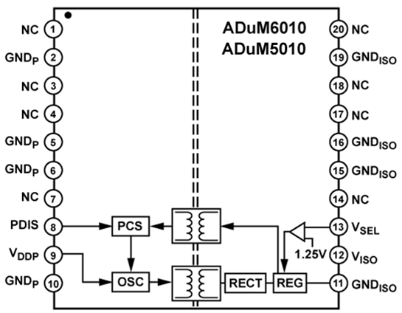

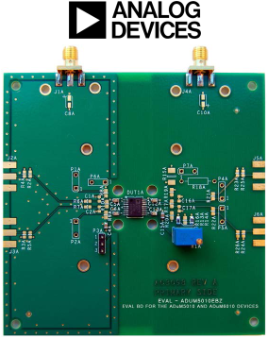

The Analog Devices EVAL-ADuM5010EBZEVAL-ADuM5010EBZ supports the ADuM5010ADuM5010 and ADuM6010ADuM6010 150 mW isolated power modules. It provides a JEDEC standard SSOP20 pad layout as well as support for setting the desired output voltage, setting enable control, and providing multiple positions for on-board loads and bypass capacitors.



isoPower devices employ high frequency high power switching circuits to enable power transfer across chip scale, air core transformers. The evaluation board includes EMI mitigation.  With the included techniques, this PCB and power module is capable of meeting the requirements of CISPER22 Class A or Class B depending on the voltage and load range.



The ADuM5010ADuM5010/ADuM6010ADuM6010 is an integrated, isolated DC/DC converter. Based on the Analog Devices, Inc., iCoupler technology, the DC/DC converter provides regulated, isolated power, adjustable between 3.15 V and 5.25 V. Input supply voltages can range from slightly below the required output to significantly higher.



Key Applications: Power supply start-up bias and gate drives, Isolated sensor interfaces, Industrial PLCs

More Development Kits and Tools
imageMore Analog Devices Analog Development KitsimageAnalog Devices MCU based Development Kits
imageDevelopment Platforms & Kitsimageelement14 Knode



Technical Documents


Learning Center



TypeDescription
User GuideADI: User Guide (UG-487) for iCoupler EVAL-ADuM5010EBZ, 150 mW isoPower Evaluation Board
DatasheetADI: Datasheet for ADuM6010 Integrated DC-to-DC Converter (Rev 0)
DatasheetADI: Datasheet for ADuM5010 Integrated DC-to-DC Converter (Rev 0)
Design TechniquesADI: Design Techniques (MS-2411) for Optimizing Power Conversion for Isolated Sensor Interfaces



Design Elements



TypeDescription
Simulation ModelADI: IBIS Model for ADuM5010/ADuM6010 3V
Simulation ModelADI: IBIS Model for ADuM5010/ADuM6010 5V
CAD ModelADI: CAD Model for ADUM5010ARSZ



Back to top



Video




You don't have permission to edit metadata of this video.
Edit media
x
Upload Preview





Back to top



Kit Features





Key Features for EVAL-ADuM5010EBZEVAL-ADuM5010EBZ iCoupler Evaluation Board are as below:

  • isoPower integrated, isolated dc-to-dc converter
  • Regulated 3.15 V to 5.25 V output
  • Up to 150 mW output power
  • 20-lead SSOP package with 5.3 mm creepage
  • High temperature operation: 105°C
  • High common-mode transient immunity: >25 kV/μs



Key Features for ADuM5010ADuM5010/ADuM6010ADuM6010 are as below:

  • isoPower integrated, isolated DC/DC converter
  • Regulated 3.15 V or 5.25 V output
  • Up to 150 mW output power
  • 20-lead SSOP package with 5 mm creepage
  • High temperature operation: 105°C
  • High common-mode transient immunity: >25 kV/μs











Back to top

Kit Contents




The Analog Devices EVAL-ADuM5010EBZEVAL-ADuM5010EBZ is supplied with below contents:

  • Evaluation Board
