 | Kit Overview

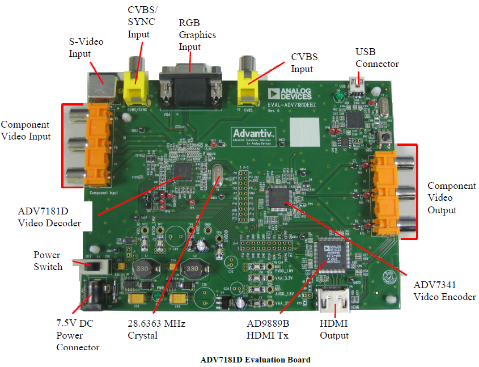

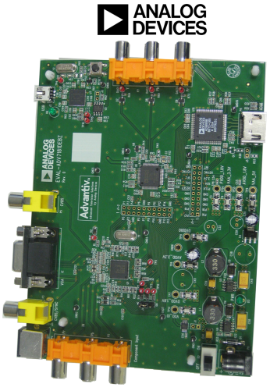

The Analog Devices EVAL-ADV7181DEBZEVAL-ADV7181DEBZ Evaluation Board can be used for the easy evaluation of the ADV7181D 10-Bit, 10 channel Multiformat SDTV/HDTV Video Decoder and RGB Graphics Digitizer.
The ADV7181D is a high quality, single-chip, multiformat video decoder and graphics digitizer. This multiformat decoder supports the conversion of PAL, NTSC, and SECAM standards in the form of composite or S-Video into a digital ITU-R BT.656 format.
The ADV7181D also supports the decoding of a component RGB/YPrPb video signal into a digital YCrCb or RGB pixel output stream. Support for component video includes standards such as 525i, 625i, 525p, 625p, 720p, 1080i, and many other HD and SMPTE standards.
Graphics digitization is also supported by the ADV7181D; it is capable of digitizing RGB graphics signals from VGA to XGA rates and converting them into a digital DDR RGB or YCrCb pixel output stream.
Key Applications: Automotive entertainment, HDTVs, LCD/DLP | |||||||||||
| ||||||||||||
Technical Documents
Learning Center
Design Elements
| Type | Description |
|---|---|
| Schematics | ADI: Schematics for ADV7181D Evaluation Board |
| BOM | ADI: BOM File for ADV7181D Evaluation Board |
| Layout | ADI: Layout File for ADV7181D Evaluation Board |
| Application Library | ADI: Application Library for DV7181D Eval Board |
| CAD Model | ADI: CAD Model for ADV7181DBCPZ |
Video
Kit Features
Key Features for the ADV7181D are as below:
- Four 10-bit ADCs sampling up to 75 MHz
- 10 analog input channels
- SCART fast blank support
- Internal antialiasing filters
- NTSC, PAL, and SECAM color standards supported
- 525p/625p component progressive scan supported
- 720p/1080i component HDTV supported
- Digitizes RGB graphics up to 1024 × 768 at 70 Hz (XGA)
- 3 × 3 color space conversion matrix
- Industrial temperature range: −40°C to +85°C
- 12-bit 4:4:4 DDR, 8-/10-/16-/20-bit SDR pixel output interface
- Programmable interrupt request output pin
- Small package
- Low pin count
- Single front end for video and graphics
- VBI data slicer (including teletext)
- Qualified for automotive applications
Kit Contents
The Analog Devices EVAL-ADV7181DEBZEVAL-ADV7181DEBZ Evaluation kit is supplied with below contents:
- ADV7181D Evaluation Board
- 7.5V DC Power Supply Module
- USB cable
