Analog Devices: EVAL-ADXL362Z-DB Development Board for the ADXL362 Digital Output MEMS Accelerometer

BUY NOWBUY NOWTechnical DocumentsVideoFeaturesKit Contents


Kit Overview

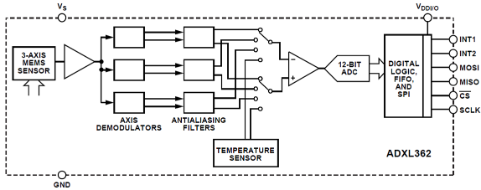

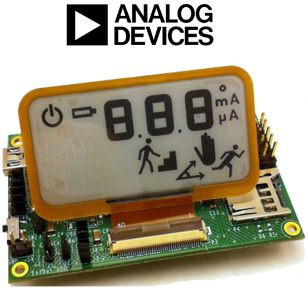

The Analog Devices ADXL362 Development Board (EVAL-ADXL362Z-DBEVAL-ADXL362Z-DB) is an easy-to-use tool designed to shorten application development time by enabling data collection and firmware development on an existing hardware platform.



To highlight the ultralow power consumption offered by the ADXL362ADXL362, the board is designed as a low-power platform. Communications and processing are performed by a Renesas RL78/G13 ultralow power microcontroller, and firmware is written in C. An e-paper display shows numeric or graphical output, depending on the firmware loaded. The board is fully programmable via USB, and a development environment and header files are available from Renesas. Schematics and layout are provided so that the platform can be duplicated in the final application, having already been tested with the application firmware.



The board is pre-configured as a motion-activated on/off switch. Other firmware examples available are a tilt sensor, a datalogger, and a real-time data viewer (provided with a GUI that graphs real-time acceleration data on a computer screen). The board can be powered over USB, with a CR2450-G1ACR2450-G1A coin cell battery, or from an external supply. Supplied with the board are the e-paper display, a USB cable, and a microSD card for logging data.



Key Applications: Hearing aids, Home healthcare devices, Motion enabled power save switches, Wireless sensors, Motion enabled metering devices

More Development Kits and Tools
imageMore Analog Devices Analog Development KitsimageAnalog Devices MCU based Development Kits
imageDevelopment Platforms & Kitsimageelement14 Knode



Technical Documents


Learning Center



TypeDescription
User GuideADI: User Guide for Evaluation Board EVAL-ADXL362Z-DB
DatasheetADI: Datasheet for ADXL362: Micropower Three-Axis, 2g/4g/8g Digital-Output MEMS Accelerometer (Rev A)



Design Elements



TypeDescription
CAD ModelADI: CAD Model for ADXL362BCCZ-RL (BXL File Format)
SchematicsADI: Schematics for ADXL362Z-DB Evaluation Board
LayoutADI: Layout File for ADXL362Z-DB
Application LibraryADI: Application Library for ADXL362 (32 - Bit)
Application LibraryADI: Application Library for ADXL362 (64 - Bit)
Application LibraryADI: Application Library for EVAL-ADXL362Z-DB (Firmware)
