The Analog Devices ADF7023ADF7023 is a very low power, high performance, highly integrated 2FSK/GFSK/OOK/MSK/GMSK transceiver designed for operation in the 862 MHz to 928 MHz and 431 MHz to 464 MHz frequency bands, which cover the worldwide license-free ISM bands at 433 MHz, 868 MHz and 915 MHz.
It is suitable for circuit applications that operate under the European ETSI EN300-220, the North American FCC (Part 15), the Chinese short-range wireless regulatory standards, or other similar regional standards. Data rates from 1 kbps to 300 kbps are supported.

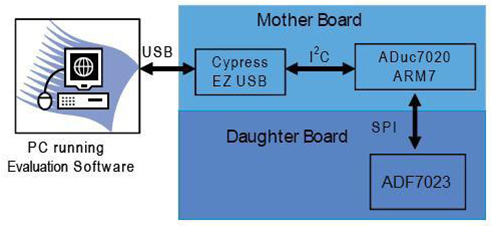

The Evaluation platform consists of the EVAL-ADF7XXXMB3ZEVAL-ADF7XXXMB3Z mother board to which an appropriate daughter card may be connected. The motherboard may be powered via the USB cable supplied. The 5V from the USB cable is regulated down to 3.3V for the Cypress EZ USB IC, the ADuC7020ADuC7020 microcontroller and the ADF7023ADF7023 transceiver. Alternatively a battery may be used to power the microcontroller and transceiver.

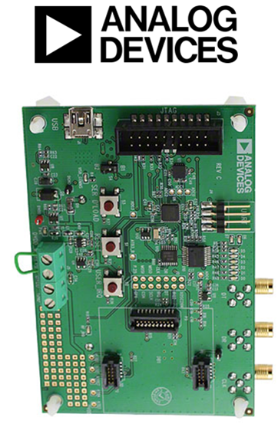

The ADF7023ADF7023 evaluation platform consists of a 4-layer PCB daughter card which plugs into the EVAL-ADF7XXXMB3ZEVAL-ADF7XXXMB3Z motherboard.
Ordering Information:
Key Applications: Smart metering, IEEE 802.15.4g, Wireless MBUS, Home automation, Process and building control, Wireless sensor networks (WSNs), Wireless healthcare | |||||||||||
| ||||||||||||
Technical Documents
Learning Center
Design Elements
| Type | Description |
|---|---|
| Layout | ADI: Layout File for ADF7023-J (Gerber Files) |
| Application Library | ADI: Application Library for ADF7023 |
| CAD Model | ADI: CAD Model for ADF7023-JBCPZ (BXL File Format) |
Video
Kit Features
Key features for ADF7023ADF7023 evaluation boards:
- Frequency bands
- 862 MHz to 928 MHz
- 431 MHz to 464 MHz
- Programmable datarates and modulation
- 1 kbps to 300 kbps
- FSK/GFSK/OOK/MSK/GMSK modulation
- very low power consumption
- 12.8 mA in PHY_RX mode (maximum front-end gain)
- 24.1 mA in PHY_TX mode (10dBm output, single-ended PA)
- 0.75 uA in PHY_SLEEP mode (32 kHz RC oscillator active)
- 1.28 uA in PHY_SLEEP mode (32 kHz XTAL oscillator active)
- 0.33 uA in PHY_SLEEP mode (Deep sleep mode 1)
- High Sensitivity
- Programmable output power
- -20dBm to +13.5dBm (single-ended PA)\
- -20 dBm to +10 dBm (differential PA)
- Excellent receiver selectivity and blocker resilience
Kit Contents
The Analog Devices EVAL-ADF7XXXMB3ZEVAL-ADF7XXXMB3Z kit is supplied with below contents:
- Evaluation Board
- 3.6 V Battery
The Analog Devices EVAL-ADF7023-JDB1ZEVAL-ADF7023-JDB1Z kit is supplied with below contents:
- Daughter Board
The Analog Devices EVAL-ADF7023-JDB2ZEVAL-ADF7023-JDB2Z kit is supplied with below contents:
- Daughter Board
