Analog Devices: Evaluation Board for the ADM2682E/ADM2687E 5 kV rms Signal and Power Isolated RS-485 Transceivers

BUY NOWBUY NOW

Kit Overview

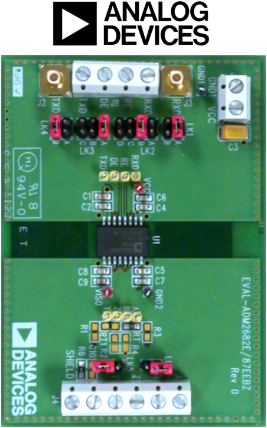

The Analog Devices ADM2682E/ADM2687E (EVAL-ADM2682EEBZEVAL-ADM2682EEBZ/EVAL-ADM2687EEBZEVAL-ADM2687EEBZ) evaluation board can be used for easy evaluation of the ADM2682EADM2682E and ADM2687EADM2687E power and signal isolated RS-485 transceivers. Screw terminal blocks provide convenient connections for the power and signal connections.

The evaluation board is easily configured through jumper connections. The board can be used in half-duplex or full- duplex configurations and has a 120 Ω termination resistor fitted on the receiver input. The evaluation board can be used with either the ADM2682E 16 Mbps part or the ADM2687E 500 kbps part. The driver and receiver are enabled and disabled by jumper connections. Test points are included on the power and signal lines on both sides of the isolation barrier.

The ADM2682EADM2682E/ADM2687EADM2687E evaluation board is designed to reduce emissions generated by the high frequency switching elements used by the isoPower technology to transfer power through its transformer.

Ordering Information:

MPN	Description
EVAL-ADM2682EEBZEVAL-ADM2682EEBZ	Evaluation Board for the ADM2682E, 16 Mbps, power and signal isolated RS-485 transceivers
EVAL-ADM2687EEBZEVAL-ADM2687EEBZ	Evaluation Board for the ADM2687E, 500 kbps, power and signal isolated RS-485 transceivers

Key Applications: Isolated RS-485/RS-422 interfaces, Industrial field networks, Multipoint data transmission systems

More Development Kits and Tools
	More Analog Devices Analog Development Kits		Analog Devices MCU based Development Kits
	Development Platforms & Kits		element14 Knode

Technical Documents

Learning Center

Type	Description
User Guide	ADI: User Guide (UG-317) for Evaluation Board for the ADM2682E/ADM2687E 5 kV rms Signal and Power Isolated RS-485 Transceivers with 15 kV ESD Protection
Datasheet	ADI: Datasheet for ADM2682E/ADM2687E 5 kV rms Signal and Power Isolated RS-485 Transceiver with 15 kV ESD Protection (Rev 0)
Product Brief	ADI: Product Brief for iCoupler Products with isoPower Technology, Signal and Power Transfer Across Isolation Barrier Using Microtransformers
Selection Guide	ADI: Selection Guide for Digital Isolator
Training Video	ADI: Training Video for 5kVrms Signal and Power Isolated RS-485 Transceivers
Application Note	ADI: Application Note (AN-960) for RS-485/RS-422 Circuit Implementation Guide
Application Note	ADI: Application Note (AN-0971) for Recommendations for Control of Radiated Emissions with isoPower Devices

Design Elements

Type	Description
CAD Model	ADI: CAD Model for ADM2682EBRIZ (BXL File format)
CAD Model	ADI: CAD Model for ADM2687EBRIZ (BXL File Format)

Video

Kit Features

Key Features for the EVAL-ADM2682EEBZEVAL-ADM2682EEBZ/EVAL-ADM2687EEBZEVAL-ADM2687EEBZ Evaluation Board:

5 kV rms power and signal isolated RS-485/RS-422 transceiver
Convenient connections for power and signal through screw terminal blocks
Configurable as half duplex or full duplex 5 V or 3.3 V operation
Easily configurable through jumper connections
Test points for measuring all signals
Layout optimized for emissions

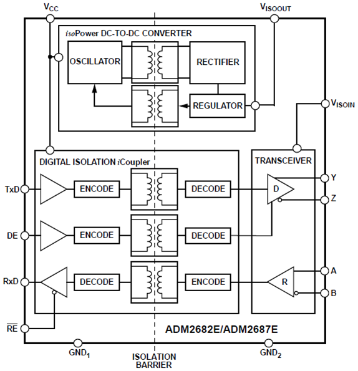

Key Features for ADM2682EADM2682E and ADM2687EADM2687E are as below:

5 kV rms isolated RS-485/RS-422 transceiver, configurable as half or full duplex
isoPower integrated isolated dc-to-dc converter
±15 kV ESD protection on RS-485 input/output pins
Complies with ANSI/TIA/EIA-485-A-98 and ISO 8482:1987(E)
Data rate: 16 Mbps (ADM2682E), 500 kbps (ADM2687E)
5 V or 3.3 V operation
Connect up to 256 nodes on one bus
Open- and short-circuit, fail-safe receiver inputs
High common-mode transient immunity: >25 kV/μs
Thermal shutdown protection

Kit Contents

The Analog Devices EVAL-ADM2682EEBZEVAL-ADM2682EEBZ is supplied with below contents:

Evaluation Board

The Analog Devices EVAL-ADM2687EEBZEVAL-ADM2687EEBZ is supplied with below contents:

Evaluation Board
