Cymbet: CBC-EVAL-10 EnerChip™︎ CC Energy Harvester Evaluation Kit

Buy NowBuy NowTechnical DocumentsVideoFeaturesKit Contents




Kit Overview

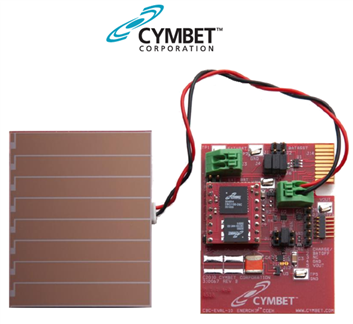

CBC-EVAL-10CBC-EVAL-10 is a demonstration kit that provides designers a platform to easily develop Energy Harvesting (EH) solutions using the EnerChip CBC3150TM configured to operate in an energy harvesting mode. The kit combines a small solar panel, power management circuit, energy storage, regulated output voltage, and input/output pins for connection to commercially available microcontroller (MCU) and radio boards.A 16-pin CBC51100 module is included, providing the EH functions, battery management, and 100μAh solid state rechargeable energy storage.

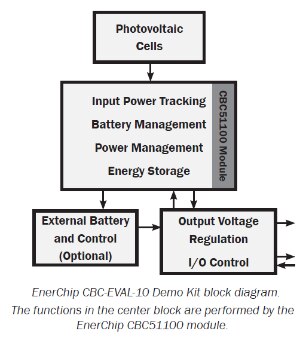

CBC-EVAL-10CBC-EVAL-10 is a practical, low cost realization of an EH-based power system that can provide many years of service without need of battery maintenance.The photovoltaic (PV) panel included in the CBC-EVAL-10 converts ambient light energy into electrical energy, which is fed into the CBC3150 device residing on the CBC51100 module.



The EnerChip CC is the world’s first Intelligent Thin Film Energy Storage Device. It is an integrated solution that provides backup energy storage and power management for systems requiring power bridging and/or secondary power. The EnerChip CC is essentially a UPS in a ChipTm drop in solution.



Key Applications: Standby supply, Wireless sensors and RFID tags, Localized power source, Power bridging, Consumer appliances, Business and industrial systems, Energy Harvesting

More Development Kits and Tools
imageTexas Instruments LaunchPad and BoosterPacksimageTexas Instruments Development Tools
imageOther Texas Instruments Development KitsimageDevelopment Platforms & Kits





Technical Documents

Learning Center



TypeDescription
DatasheetCymbet: Datasheet for CBC-EVAL-10 EnerChipTm CC Energy Harvester Evaluation Kit
DatasheetCymbet: Datasheet for CBC3150 EnerChipTm CC with Integrated Power Management
Product BriefCymbet: Product Brief for EnerChip Product Family
Product BriefCymbet: Product Brief for EnerChips  Energy Harvesting
Solution GuideCymbet: Solution Guide for EnerChip Energy Harvesting
Application NoteCymbet: Application Note for EnerChipTm CC in Energy Harvesting Designs
Application NoteCymbet: Application Note for EnerChipTm Energy Harvesters with the TI LaunchPad
Application NoteCymbet: Application Note for EnerChipTm CC Li-Ion Battery Charger with Integrated Energy Storage



Back to top



Video





Back to top



Kit Features




Features of CBC3150 EnerChip CC with Integrated Power Management:



  • Power Manager with Charge Control
  • Integrated 50μAh Thin Film Energy Storage
  • Built-in Energy Storage Protection
  • Temperature Compensated Charge Control
  • Adjustable Switchover Voltage
  • Charges Integrated EnerChip Over a Wide Supply Range
  • Low Standby Power
  • SMT - Lead-Free Reflow Tolerant
  • Thousands of Recharge Cycles
  • Low Self-Discharge
  • Eco-Friendly, RoHS Compliant





















Back to top

Kit Contents



The CBC-EVAL-10CBC-EVAL-10 EnerChipTm CC Energy Harvester Evaluation Kit supplied with below contents:
