Kit Overview

The KT35S430-S1KT35S430-S1 ITO Capacitive Touch BoosterPack is an extension module for the MSP-EXP430G2MSP-EXP430G2 MSP430 LaunchPad Value Line Development Kit The ITO Capacitive Sense BoosterPack features the new MSP430G2xxx devices with transparent ITO glass sensor. The BoosterPack includes a converter board and an ITO glass capacitive touch sensor. The user experience application demonstrates capacitive sense as standalone feature by showing the user interaction directly with the onboard LEDs.

The 3.5 inch ITO Glass Capacitive Touch sensor and BoosterPack offers a unique solution for touch-enabled applications. The ITO Capacitive Touch BoosterPack features the new MSP430G2xxx devices with transparent ITO glass for LCD HMI (Human-Machine-Interface) applications.

The ITO Capacitive Touch BoosterPack is an advance capacitive touch application example for the new MSP430G2xxx touch-sense enabled I/O pins. The demo shows 5 touch button for HMI, In addition, there are two LEDs on the board to give instant feedback to user interaction.

Key Applications: Touch-Enabled, LCD HMI (Human-Machine-Interface) applications.

More Development Kits and Tools
	Texas Instruments LaunchPad and BoosterPacks		Texas Instruments Development Tools
	Other Texas Instruments Development Kits		Development Platforms & Kits

Technical Documents

Learning Center

Type	Description
User Guide	TI: User Guide for MSP430 LaunchPad (MSP-EXP430G2) with Capacitive Touch BoosterPack (KT35S430-S1)
User Guide	Texas Instruments: User's Guide for MSP-EXP430G2 LaunchPad Experimenter Board
User Guide	Texas Instruments: Quick Start Guide for MSP-EXP430G2 LaunchPad
User Guide	Texas Instruments MSP430(tm) Hardware Tools User's Guide (Rev. F)
Selection Guide	Texas Instruments: Ultra-Low-Power MSP430 MCU Value Line
Whitepaper	Texas Instruments MSP430 Value Line LaunchPad Development Kit
Application Note	TI: Application Note to Build Your Own LaunchPad / LaunchPad BoosterPack Development Tool

Video

Video 1	Video 2
You don't have permission to edit metadata of this video. Edit media Dimensions x Subject (required) Brief Description Tags (separated by comma) Video visibility in search results Parent content Poster Upload Preview	This video is unavailable. You don't have permission to edit metadata of this video.

Kit Features

Key Features for KT35S430-S1KT35S430-S1:

Single layer of ITO Glass Sensor with high transmittance
3.5 inch diagonal
Simply applied on any type of LCD displays
5 function keys
Instant feedback to user interaction by 2 LEDs
Low product cost
Low customization cost
- Customization on numbers of keys, key position and FPC

Kit Contents

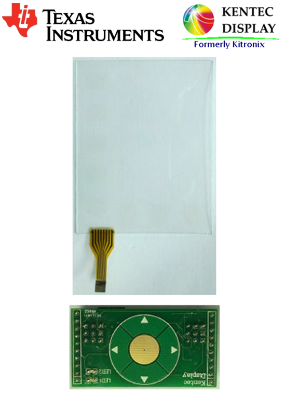

The KT35S430-S1KT35S430-S1 kit includes two components:

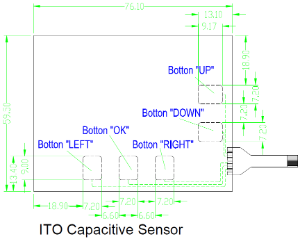

One ITO Glass Capacitive Touch sensor with five function keys and FPC pinout
One converter board for connected the ITO glass sensor to the MSP-EXP430G2 MCU board
