 | Kit Overview
The boosterpack include a 3.5 inch QVGA TFT LCD module (P/N: K350QVG-V2-F) and with build in LED backlight driver circuit. The LCD connector also can be interfaced to larger size LCD module from Kentec Display (4.3 inch: K430WQC-V3-FF; 5 inch: K50DWN2-V1-FF; 7 inch: K70DWN2-V1-FF; 9 inch:K90DWN2-V1-FF).

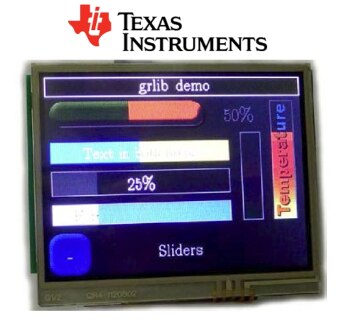

Kentec 3.5” QVGA TFT graphic LCD module with resistive touch screen The EB-LM4F120-L35EB-LM4F120-L35 LCD boosterpack having Outline Dimension (mm) : 80.0 x 69.3 ,AA (mm): 70.08 x 52.56. The EB-LM4F120-L35EB-LM4F120-L35 LCD boosterpack having Resolution (Dots): 320x240 and it is having 8-bit parallel Interface.
Key Applications: Lower power applications,Scanners | |||||||||||
| ||||||||||||
Technical Documents
Learning Center
| Type | Description |
|---|---|
| User Guide | TI: User's Guide for Stellaris LaunchPad LCD Boosterpack EB-LM4F120-L35 |
Video
| Video 1 | Video 2 |
|---|---|
Kit Features
Key Features of EB-LM4F120-L35EB-LM4F120-L35:
- The EB-LM4F120-L35EB-LM4F120-L35 is a LCD boosterpack for the Stellaris LaunchPad
- The boosterpack include a 3.5 inch QVGA TFT LCD module
- The EB-LM4F120-L35EB-LM4F120-L35 with build in LED backlight driver circuit
- The LCD connector also can be interfaced to larger size LCD module from Kentec Display (4.3 inch: K430WQC-V3-FF; 5 inch: K50DWN2-V1-FF; 7 inch: K70DWN2-V1-FF; 9 inch K90DWN2-V1-FF)
- Kentec 3.5” QVGA TFT graphic LCD module with resistive touch screen
- The EB-LM4F120-L35 LCD boosterpack having Outline Dimension (mm) : 80.0 x 69.3
- AA (mm): 70.08 x 52.56
- The EB-LM4F120-L35EB-LM4F120-L35 LCD boosterpack having Resolution (Dots): 320x240
- 8-bit parallel Interface

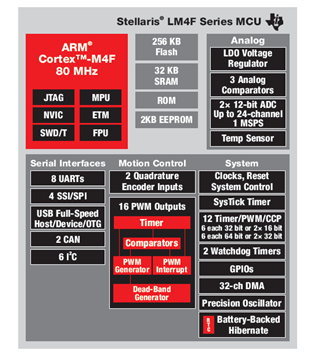

Key features for Cortex-M4F MCUs:
- All LM4F variants include the ARM Cortex-M4F core with single-precision floating point at 80 MHz
- Up to 256 KB single-cycle Flash memory and 32 KB single-cycle SRAM
- Up to two 12-bit ADC modules and 24 channels of inputs
- Up to two CAN 2.0 A/B controllers
- Up to two CAN 2.0 A/B controllers
- Advanced motion control capability, with up to 16 PWM outputs and two quadrature encoder inputs
- Generous serial communication, with up to
- 8 UARTs
- 6 I2C modules
- 4 SPI/SSI modules
- Low power modes including power-saving Hibernate mode
- 64-LQFP, 100-LQFP, and 144-LQFP packages
Kit Contents
The EB-LM4F120-L35EB-LM4F120-L35 is supplied with the below contents
- QVGA TFT LCD module
