Texas Instruments: KTBCD430-D1 Bi-stable Cholesteric Display BoosterPack for MSP430 LaunchPad

Buy NowBuy Now

Kit Overview

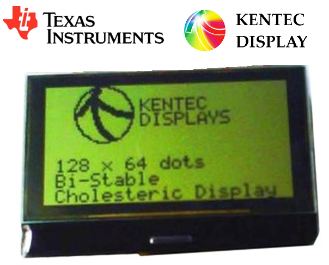

The KTBCD430-D1KTBCD430-D1 Bi-stable Cholesteric Display BoosterPack is an extension module for the MSP-EXP430G2MSP-EXP430G2 MSP430 LaunchPad Value Line Development Kit. The BCD (Bi-stable Cholesteric Display) module connected to the MSP430 MCU via SPI interface. The demo software show the application of BCD module like power on, display characters, display images, reflash, power off, etc.

The KTBCD430-D1KTBCD430-D1 Bi-stable Cholesteric Display BoosterPack comes with 128 x 64 dots, Reflective, wide viewing angle, 4-Wire SPI interface and Logic voltage of 2.8V (typical).

Key Applications: Extension Module for the MSP-EXP430G2MSP-EXP430G2 MSP430 LaunchPad Value Line

More Development Kits and Tools
	Texas Instruments LaunchPad and BoosterPacks		Texas Instruments Development Tools
	Other Texas Instruments Development Kits		Development Platforms & Kits

Technical Documents

Learning Center

Type	Description
User Guide	TI: User Guide for KTBCD430-D1Display BoosterPack
User Guide	Texas Instruments: User's Guide for MSP-EXP430G2 LaunchPad Experimenter Board
User Guide	Texas Instruments: Quick Start Guide for MSP-EXP430G2 LaunchPad
User Guide	Texas Instruments MSP430(tm) Hardware Tools User's Guide (Rev. F)
Selection Guide	Texas Instruments: Ultra-Low-Power MSP430 MCU Value Line
Whitepaper	Texas Instruments MSP430 Value Line LaunchPad Development Kit
Application Note	TI: Application Note to Build Your Own LaunchPad / LaunchPad BoosterPack Development Tool

Video

Video 1	Video 2	Video 3
This video is unavailable. You don't have permission to edit metadata of this video.	This video is unavailable. You don't have permission to edit metadata of this video.	This video is unavailable. You don't have permission to edit metadata of this video.

Kit Features

Key Features for KTBCD430-D1KTBCD430-D1 Bi-stable Cholesteric Display BoosterPack:

128 x 64 dots
4-Wire SPI interface
Low power
Logic voltage: 2.8V (typ.)
Display image stays on the panel after power off (Zero power consumption when keep the display image)
Very wide viewing angle (180 degrees)
High contrast
Reflective and sunlight readable
Low product cost
Low customization cost
Customization on display size, display resolution

Kit Contents

The KTBCD430-D1KTBCD430-D1 is supplied with the below contents:

Bi-stable Cholesteric Display (BCD)
