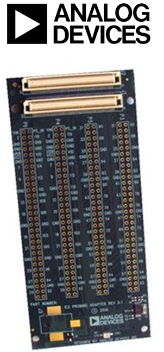

The ADZS-BRKOUT-EX3ADZS-BRKOUT-EX3 SDP breakout board from Analog Devices, Inc., can be used in conjunction with SDP controller boards and daughter boards designed on the SDP system. The breakout board allows signals travelling between SDP controller boards and compatible daughter boards to be monitored by the insertion of the breakout board between the SDP controller board and the daughter board.
SDP controller boards are used as part of the evaluation system for many Analog Devices components. The SDP breakout board exposes each of the 120 pins of the SDP controller board's connector allowing users to monitor signals between the controlling board and the attached daughter evaluation board or Circuit from the Lab reference circuit board.
The System Demonstration Platform (SDP) is a collection of controller boards, interposer boards, and daughter boards used for easy, low cost evaluation of ADI components and reference circuits. It is a reusable platform where by a single controller board can be reused in various daughter board evaluation systems. Platform elements can also be used to build, demonstrate, and prototype embedded systems connected to daughter evaluation boards, through the use of interposer and 3rd party boards.
Key Applications: SDP controller boards and daughter boards | |||||||||||
| ||||||||||||
Technical Documents
Learning Center
| Type | Description |
|---|---|
| User Guide | ADI: User Guide (UG-282) for ADZS-BRKOUT-EX3 SDP Breakout Board |
| User Guide | |
| User Guide | |
| User Manual | ADI: User Manual for System Demonstration Platform Breakout Board |
| Product Brief | ADI: Product Brief for SDP Facilitates Quick Prototyping and Evaluation |
| Training Video | ADI: Training Video for System Demonstration Platform Simplifies Evaluation |
Design Elements
| Type | Description |
|---|---|
| Schematics | ADI: Schematics for SDP Breakout Board |
Video

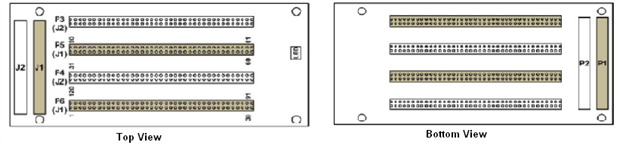

Kit Features
The Key Features for the SDP breakout board:
- 4-pin × 120-pin small footprint connectors
- Hirose FX8-120P-SV1(91),120-pin header
- Hirose FX8-120S-SV(21), 120-pin receptacle
- ID EEPROM
- 240 through-hole probe points
- An LED connected to the input power line to indicate that power is provided fromo an attached daughter board
Kit Contents
The Analog Devices ADZS-BRKOUT-EX3ADZS-BRKOUT-EX3 package contains:
- ADZS-BRKOUT-EX3 board
