Freescale: TWR-S08LL64-KIT - 8-bit Segment LCD Module for Tower System

Buy NowBuy Now

Kit Overview

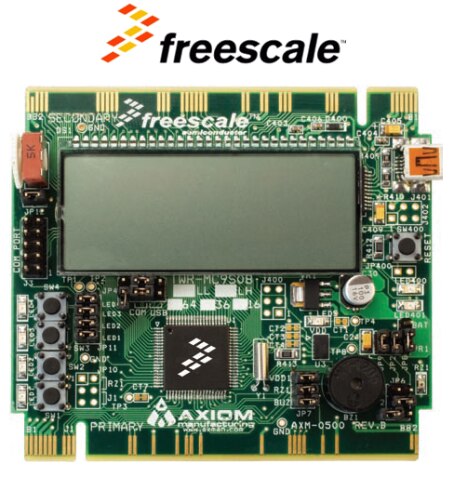

The cost effective TWR-S08LL64TWR-S08LL64 development tool is part of the Tower System(TWR-S08LL64-KITTWR-S08LL64-KIT) and features the MC9S08LL64MC9S08LL64 segment LCD controller. It provides everything a designer needs to develop and evaluate application code. The integrated OSBDM allows a designer to communicate with the board and target device with only a USB cable and the board highlights the MCU's low power features.

The MC9S08LL64MC9S08LL64 device is one of Freescale’s low-power microcontrollers with an integrated liquid crystal display (LCD) driver. The TWR-S08LL64TWR-S08LL64 module contains an on-module display that allows developers to explore software development using the integrated LCD driver. This quick start guide is designed to get you ready to develop your next LCD application using the MC9S08LL64MC9S08LL64 within minutes.

The MC9S08LL16/8 helps you reach your target performance levels while minimizing power consumption in your design, demonstrating extreme energy efficiency for ultra-long operation in battery-powered applications. The S08LL16 (LL16) microcontroller offers two ultra-low-power stop modes, new low-power run and wait modes, six microsecond wake-up time, ultra-low-power external oscillator and clock gating registers to disable clocks to unused peripherals.

CodeWarrior Development Studio for Microcontrollers is a suite of tools that supports software development for Freescale’s 8-bit MCUs and 32-bit V1 ColdFire devices. Designers can further accelerate application development with the help of Processor Expert, an award-winning rapid application development tool integrated into the CodeWarrior tool suite.

Ordering Information:

MPN	Description
TWR-S08LL64TWR-S08LL64	Freescale MC9S08LL64 MCU based Tower Module Only.
TWR-S08LL64-KITTWR-S08LL64-KIT	KIT - Freescale MC9S08LL64 MCU based Tower Module along with Elevator Module (TWR-ELEVTWR-ELEV) and Prototype Module (TWR-PROTOTWR-PROTO).

Key Applications: Automotive ,Consumer ,Industrial.

More Development Kits and Tools
	Freescale Development Kits		Freescale Development Tools
	Development Platforms & Kits		element14 Knode

Development Tools

Software Development Tools:

Tool Type	Supplier	MPN	Supported Family	Description
IDE	Freescale	CodeWarrior	All Freescale MCU's	Freescale's software and development solutions take you beyond the silicon, helping to bring your embedded applications to life. Learn More

Tool Type

Supplier

MPN

Supported Family

Description

IDE

Freescale

CodeWarrior

All Freescale MCU's

Freescale's software and development solutions take you beyond the silicon, helping to bring your embedded applications to life. Learn More

Hardware Development Tools:

Tool Type	Supplier	MPN	Supported Family	Description
Debuggers, Emulators & JTAG Tools	Freescale	U-MULTILINKU-MULTILINK	HC08 / HCS08 / HCS12 / ColdFire / Qorivva MPC55xx/56xx / Kinetis	P&E USB Multilink Universal debug and programming interface for HCS08, HC(S)12(X), ColdFire, Qorivva MPC55xx/56xx, and Kinetis
Debuggers, Emulators & JTAG Tools	Freescale	USBMULTILINKBDMEUSBMULTILINKBDME	HCS08 / RS08 / HCS12	USB BDM Interface cable for the 68HC(S)12(X) and 68HCS08 and 68RS08 and ColdFire V1
Debuggers, Emulators & JTAG Tools	Freescale	USBMULTILINK08EUSBMULTILINK08E	HC08	In-circuit emulation, debugging and programming for 68HC08 Flash MCUs
Debugger / Programmer	Freescale	M68CYCLONEPROEM68CYCLONEPROE	HC08 / HS08 / RS08 / HCS12	Hardware Debug Interface and Stand-Alone Programmer for HC08, HCS08, RS08, ColdFire V1, and HC(S)12(X)

Technical Documents

Learning Center

Type	Description
User Guide	Freescale: Quick Start Guide for TWR-S08LL64-KIT
Datasheet	Freescale: Datasheet for MC9S08LL64 MCU
Product Brief	Freescale: Fact Sheet for MC9S08LL16/8 MCU Family
Application Note	Freescale: AN3796: LCD Driver Specification
Application Note	Freescale: AN3821: How to Handle Dual Flash Architecture in MC9S08LG32
Application Note	Freescale: AN3822: Emulated EEPROM Implementation in Dual Flash Architecture and Demo Description on MC9S08LG32
Application Note	Freescale: AN3824: EEPROM Emulation Driver for MC9S08LG32 Family
Application Note	Freescale: AN3990: Migrating from MC9S08LL16 to MC9S08LL64 Microcontroller
Tutorials	Freescale: Lab Tutorials For-TWRS098LL64(LAB1)
Tutorials	Freescale: Lab Tutorials For-TWRS098LL64(LAB2)

Design Elements

Type	Description
Mechnical Drawing	Freescale: Mechanical Drawing for Tower System
Schematic	Freescale: TWR-S08LL64-KIT-Base Board Schematic
Schematic	Freescale: TWR-S08LL64-KIT Schematic File
Reference Design	Freescale: Thermostat Reference Design Using the MC9S08LL16 Family
Application Library	Freescale: Software code For TWRS098LL64(LAB2) Family Lab Tutorials

Video

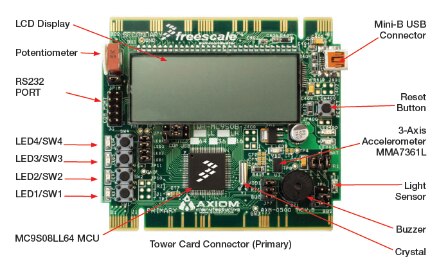

Kit Features

5 K One Turn Potentiometer
RS232 port
MC9S08LL64MC9S08LL64 MCU
32,768 Hz Crystal
Freescale 3 axis accelerometer ADC input to MCU
Buzzer
Light Sensor with LP filter and opamp
Mini-B USB connector
1 reset push button and 4 push switches
2 x 28 segments LCD display

Kit Contents

TWR-S08LL64TWR-S08LL64 - 8-bit Segment LCD module that features the MC9S08LL64
TWR-PROTOTWR-PROTO - Prototyping module with perfboard area
TWR-ELEVTWR-ELEV - Two elevator boards that provide structural integrity, communications interfaces, power regulation circuitry with standardized bus
Necessary cables
An interactive DVD with lab tutorials, software, training and collateral
A printed guide on how to quickly get started using the development kit
