element14 Lattice presents HDR 60 Video Development Kit

Overview

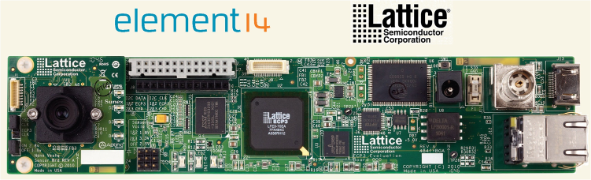

Lattice and element14 together presents LatticeECP3-70 FPGA based the Lattice HDR-60 Video Camera Development KitLattice HDR-60 Video Camera Development Kit, it's fully production ready High Dynamic Range (HDR) camera, designed to fit into commercially available camera housings. The hardware is designed to support full 1080p resolution at 60 frames per second in streaming mode through the FPGA, without the need for any external frame buffer.

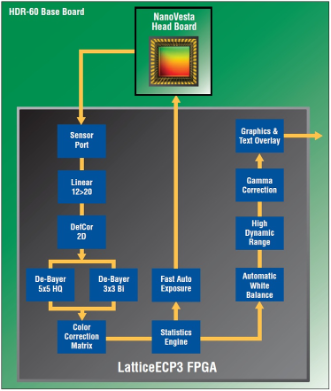

The integrated 'IONOS' Image Signal Processing (ISP) IP pipeline from Lattice partner, Helion GmbH, provides end-to-end ISP support from sensor to displayable image, and incorporates sensor interfacing, defective pixel correction & 2D noise reduction, high quality 5 x 5 DeBayer, Color Correction Matrix, Fast Auto Exposure, Auto White Balance, HDR, Gamma Correction and Overlay (both character and graphics). Lattice HDMI PHY IP enables output to HDMI/DVI monitors. The kit provides the industry’s fastest Auto-Exposure, very high quality Auto White Balance and HDR greater than 120dB. On board Broadcom Broadreach PHY enables support for Ethernet over coax up to a run length of 700 meters. The hardware supports up to 16-megapixel sensors, can support up to 2 sensors simultaneously and is easily programmable via standard low-cost USB cable.

This kit gives the jump start to manufacturer and developers in their FPGA-based high definition camera programs by providing a high quality HDR Video Camera reference design engineered to minimize system BOM, while addressing both legacy infrastructure and future-proofing the customer’s investment. With full 1080p60 support and the ability to scale up to 16MP sensors, as well as support for Ethernet over coaxial cable, the Lattice HDR-60 Development Kit offers nearly twice the functionality at less than half the price of any comparable kit currently available.

The LatticeECP3 FPGA family is comprised of the lowest power, SERDES-enabled FPGAs in the market today. The family’s five FPGAs offer standards-compliant, multi-protocol 3.2G SERDES, DDR1/2/3 memory interfaces and high performance, cascadable DSP slices that are ideal for RF, baseband and image signal processing. Toggling at 1Gbps, the LatticeECP3 FPGAs also feature fast LVDS I/O as well as embedded memory of up to 6.8 Mbits. Logic density varies from 17K LUTs to 149K LUTs with up to 586 user I/O.

Key Applications: High volume cost- and Power-sensitive video camera and display, Wireline and wireless infrastructure applications.

Technical Documents

Learning Center

Design Elements

Back to top

Video

You don't have permission to edit metadata of this video.

Edit media

Dimensions x Small Medium Large Custom

Subject (required) Brief Description Tags (separated by comma) Video visibility in search results Visible Hidden

Parent content

element14 Lattice presents HDR 60 Video Development Kit

Poster

Upload Preview

Ok

Cancel

Back to top

Kit Features

The Lattice HDR-60 Video Camera Development KitLattice HDR-60 Video Camera Development Kit includes the following features:

• FPGA-based Image Signal Processing
• Fully Production-Ready HDR Camera Design
• 1080p Capable @ 60 frames per second
• Supports up to 16 Megapixel Sensors Supports up to two sensors simultaneously
• Full 60fps in streaming mode needs no external frame buffer
• Fast Auto Exposure Instantly Adjust to Changing Light
• Greater than 120 dB High Dynamic Range (HDR) Performance
• Direct HDMI / DVI output from FPGA
• Extremely Low-Latency
• Comprehensive Image Processing IP Library
• On-board Broadcom BroadreachTM PHY Enables IP over Coax
• On-board FTDI Chip provides easy programming via low cost USB cable

The Lattice HDR-60 Video Camera development Kit offers several benefits:

Back to top

Kit Contents

The Lattice HDR-60 Video Camera Development KitLattice HDR-60 Video Camera Development Kit contains everything needed to develop and run a range of applications:

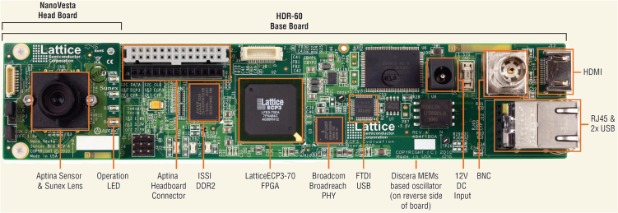

• HDR-60 Base Board with LatticeECP3 FPGA, pre-loaded with ISP Demo
• NanoVesta Head Board with Aptina A-1000 720p HDR Sensor and Sunex lens
• Two USB cables HDMI cable with HDMI-to-DVI adapter
• 12V AC adapter pow
