ARM Cortex-R4 Overview

Cortex-R4 Overview

The Cortex-R4 processor is the first deeply embedded real-time processor to be based on the ARMv7-R architecture. It is intended for use in high-volume deeply-embedded System-on-Chip applications such as hard disk drive controllers, wireless baseband processors, consumer products and electronic control units for automotive systems.

Cortex-R4 delivers substantially higher performance, real-time responsiveness and more features than other processors in its class. This processor offers excellent energy efficiency and cost effectiveness for ASIC, ASSP and MCU embedded applications. Furthermore, the Cortex-R4 processor can be configured at synthesis time to optimize its feature set for a precise match with application requirements.

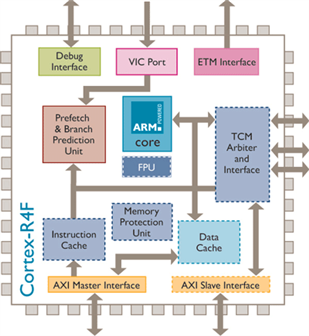

Feature	Description
Micro-architecture	Eight-stage pipeline with instruction pre-fetch, branch prediction and selected dual-issue execution. Parallel execution paths for load-store, MAC, shift-ALU, divide and floating point. 1.66 Dhrystone MIPS/MHz. Hardware divider. Binary compatibility with classic ARM9 and ARM11 embedded processors.
Instruction Set	ARMv7-R architecture with Thumb-2 and thumb. DSP extensions. Optional floating point unit.
Cache controllers	Harvard memory architecture with optional integrated Instruction and Data cache controllers. Cache sizes configurable from 4 to 64 KB. Cache lines are either write-back or write-through.
Tightly-Coupled Memories	Optional Tightly-Coupled Memory interfaces. TCMs are used for highly deterministic or low-latency applications that may not respond well to caching, e.g. instruction code for interrupt service routines and data that requires intense processing. One or two logical TCMs, A and B, can be used for any mix of code and data. TCM size can be up to 8 MB. TCM B has two physical ports, B0 and B1, for interleaving incoming DMA data streams.
Interrupt interface	Standard interrupt, IRQ, and non-maskable fast interrupt, FIQ, inputs are provided together with a VIC interrupt controller vector port. The GIC interrupt controller can also be used if more complex priority-based interrupt handling is required. The processor includes low-latency interrupt technology which allows long multi-cycle instructions to interrupted and restarted. Lengthy memory accesses are also deferred in certain circumstances. Worst case interrupt response can be as low as 20-cycles using the FIQ alone.
Memory Protection Unit	Optional MPU configures attributes for either eight or twelve regions, each with resolution down to 32 Bytes. Regions can overlap, and the highest numbered region has highest priority.
Floating Point Unit	Optional Floating Point Unit (FPU) implements the ARM Vector Floating Point architecture VFPv3 with 16 double-precision registers, compliant with IEEE754. The FPU performance is optimized for single-precision calculations and it also has full support for double-precision. Operations include add, subtract, multiply, divide, multiply and accumulate, square root, conversions between fixed and floating-point, and floating-point constant instructions.
ECC	Optional single-bit error correction and two-bit error detection for cache and/or TCM memories with ECC bits. Single-bit soft errors are automatically corrected by the processor.
Parity	Optional support for parity bit error detection in caches and/or TCMs.
Master AXI bus	64-bit AMBA AXI bus master for Level-2 memory and peripheral access.
Slave AXI bus	Optional 64-bit AMBA AXI bus slave port allows DMA masters to access the dual-port TCM B interface for high speed streaming of data in and out of the processor.
Debug	Debug Access Port is provided. Its functionality can be extended with DK-R4.
Trace	An interface suitable for connection to CoreSight Embedded Trace Module is present.
Dual core	A dual processor configuration implements a redundant Cortex-R4 CPU in lock-step with offset clocks and comparison logic for fault tolerant/fault detecting dependable systems.
Configuration	Synthesizable Verilog RTL with facility to configure options for synthesis
