STMicroelectronics STM8 Architecture Overview

Kits & Evaluation ModulesKey FeaturesApplicationsVideoTechnical Documents








More Resources
imageSTMicroeletronics Line card
imageOther STMicroelectronics Product Families
imageKnode Development Kits & Platform Room
imageelement14 Knode
Overview



The STM8 core is an evolution of the industry‑standard ST7 core. It has been significantly improved to reach 1.6 cycles per instruction and up to 24 MHz clock frequency.



The 8-bit STM8 Core is designed for high code efficiency. It contains 6 internal registers, 20 addressing modes and 80 instructions. The 6 internal registers include two 16-bit Index registers, an 8-bit Accumulator, a 24-bit Program Counter, a 16-bit Stack Pointer and an 8-bit Condition Code register. The two Index registers X and Y enable Indexed Addressing modes with or without offset, along with read-modify-write type data manipulation. These registers simplify branching routines and data/arrays modifications.



The 24-bit Program Counter is able to address up to 16-Mbyte of RAM, ROM or Flash memory. The 16-bit Stack Pointer provides access to a 64K-level Stack. The Core also includes a Condition Code register providing 7 Condition flags that indicate the result of the last instruction executed.



The 20 Addressing modes, including Indirect Relative and Indexed addressing, allow sophisticated branching routines or CASE-type functions. The Indexed Indirect Addressing mode, for instance, permits look-up tables to be located anywhere in the address space, thus enabling very flexible programming and compact C-based code. The stack pointer relative addressing mode permits optimized C compiler stack model for local variables and parameter passing.



The Instruction Set is 8-bit oriented with a 2-byte average instruction size. This Instruction Set offers, in addition to standard data movement and logic/arithmetic functions, 8-bit by 8-bit multiplication, 16-bit by 8-bit and 16-bit by 16-bit division, bit manipulation, data transfer between Stack and Accumulator (Push / Pop) with direct stack access, as well as data transfer using the X and Y registers or direct memory-to-memory transfers.



The number of Interrupt vectors can vary up to 32, and the interrupt priority level may be managed by software providing hardware controlled nested capability. Some peripherals include Direct Memory Access (DMA) between serial interfaces and memory. Support for slow memories allows easy external code execution through serial or parallel interface (ROMLESS products for instance).

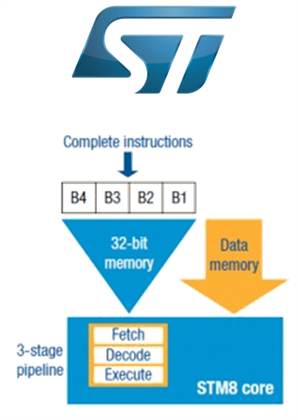

The STM8 has a high energy-efficient architecture, based on a Harvard architecture and pipelined execution. A 32-bit wide program memory bus allows most of the instructions to be fetched in 1 CPU cycle. Moreover, as the average instruction length is 2 bytes, this allows for a reduction in the power consumption by only accessing the program memory half of the time, on average. The pipelined execution allowed the execution time to be minimized, ensuring high system performance, when needed, together with the possibility to reduce the overall energy consumption, by using different power saving operating modes. Power-saving can be managed under program control by placing the device in SLOW, WAIT, SLOW-WAIT, ACTIVE-HALT or HALT mode.



Key Features




The key features of the STM8 core are:

  • Harvard architecture
  • 16‑bit index registers and stack pointer
  • 32‑bit memory interface and 3‑stage pipeline
  • Extended instruction set
  • Enhanced stack pointer operations
  • Move instruction for fast data transfer
  • Hardware division (16 / 8)
  • Faster multiplication (8 x 8)
  • 8‑bit signed arithmetic support
  • Advanced addressing modes including indexed addressing
  • Statistically optimized instruction tables



Back to top





Applications




  • Mainstream
    • Industrial and Consumer
    • Robust and reliable
  • Automotive
  • Ultra Low Power
  • Touch sensing





Back to top



Video


You don't have permission to edit metadata of this video.
Edit media
x
Upload Preview





Back to top



Technical Documents


Learning Center



TypeDescription
Product BriefSTMicroelectronics: Product Brief for STM8 8-bit MCU family



Back to top





Kits & Evaluation Modules


STM8 8-bit MCUs
Part NumberCore ArchitectureSilicon FamilyDescription
STM8/128-EVALSTM8/128-EVALSTM8STM8S2xxEvaluation Board for STM8S series with STM8S208MB MCU
STM8L101-EVALSTM8L101-EVALSTM8STM8L1/L2Evaluation Board for STM8L101 MCUs
STM8L-DISCOVERYSTM8L-DISCOVERYSTM8STM8LDiscovery kit for STM8L series with STM8L152C6 MCU
STM8S-DISCOVERYSTM8S-DISCOVERYSTM8STM8SDiscovery Kit for STM8S Series with STM8S105C6 MCU
