Can't generate keepout layer or outline layer to graber file ?

banpot408

Hi All,

not sure enyone have problam same with me ?

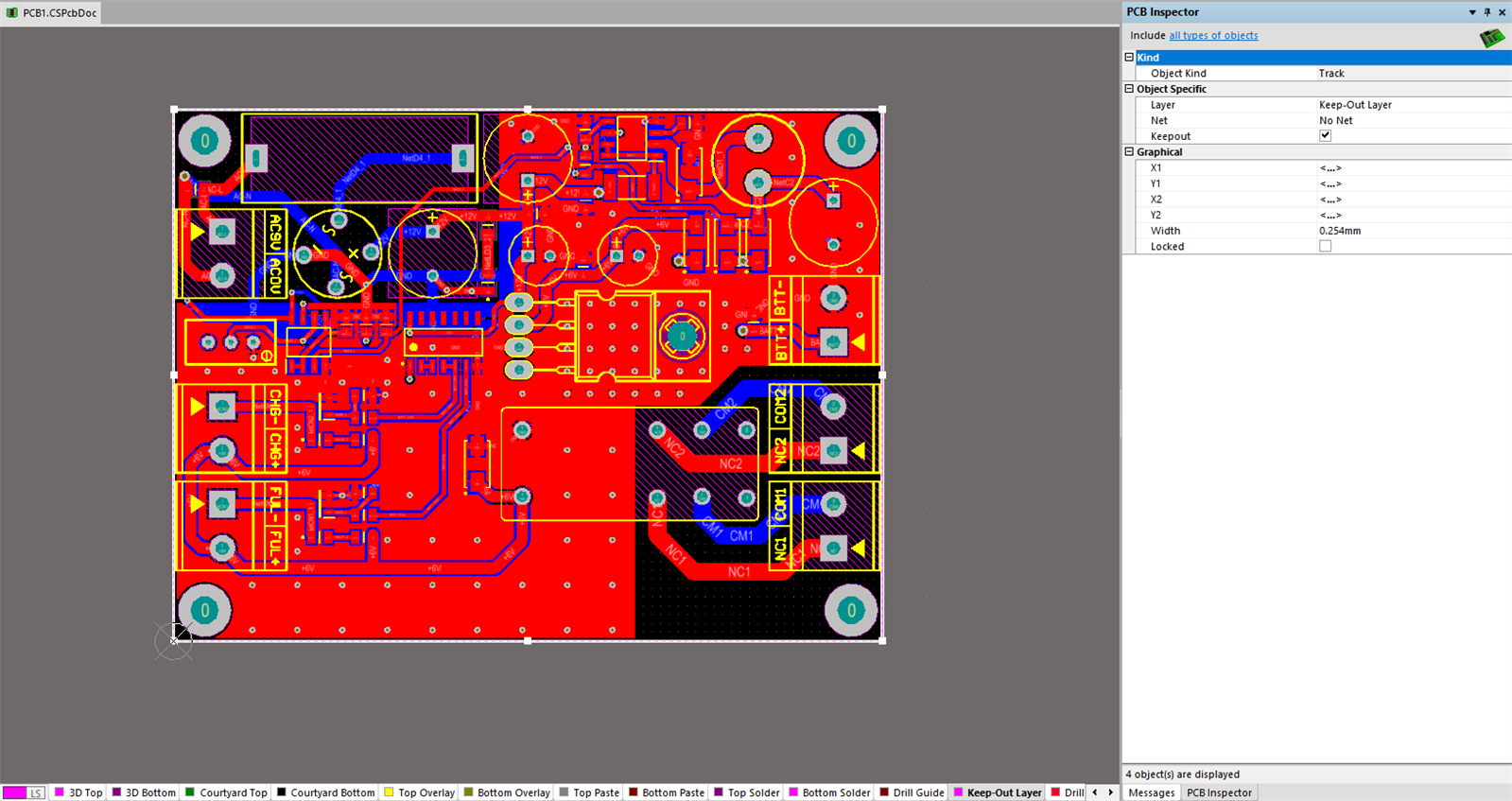

i design pcb and set outline board to keep out layer

but after i gennerate graber dot have outline board on my graber file























i has attach my board to post aslo please help me for try gernarate graber or solve the problam thank you.

Attachments:
PCB1.zip
Parents

  • hello,

    I have read in some forum-threads/CS-help-texts about using the keepout-layer as board-limit, however for me it doesn't work.

    I have produced a gerber-output with your file and the *.GKO-file has no real content (you can view it with a simple text-editor).



    My approach for gerber-production:

    I use the outline-layer as board-outline.

    After defining the final board-appearance: Home-ribbon -> create primitives from board shape for outline-layer AND for keepout-layer.

    Both are necessary: outline for the board-edges ; keepout for creation of polygon fills until board-edges



    One anomalyt: A look into your board-file shows: you have most of the 3D-body-models for your devices put into the outline-layer. All Altium-delivered libraries put the 3D-model on the layer 3D_Top or 3DD_Bottom.

  • in reply to mf_ibfeew

    Hi

    thank you for aswer, i will try to generate again
