Marker Dot on Component Parameter Text?

I've imported an OrCAD schematic into CiruitStudio. For the most part the importation went OK. Symbols are quite readable even though text strings are very small.

However, each component's parameter text in the schematic is equipped with a marker dot located on the text base line to the left of the left-most character. The location of this dot is essentially where the text's placement "handle" is located.

How do I turn off these dots?

Jim Olson

Indianapolis, IN US

Top Replies

jimolson over 6 years ago in reply to e14softwareuk +1

Thanks again, Peter, for your quick reply. Another instance of my "not being in Kansas (AD17) anymore" as Dorothy once said. I would love to have been a fly on the wall during Altium staff meetings when…

0 e14softwareuk over 6 years ago

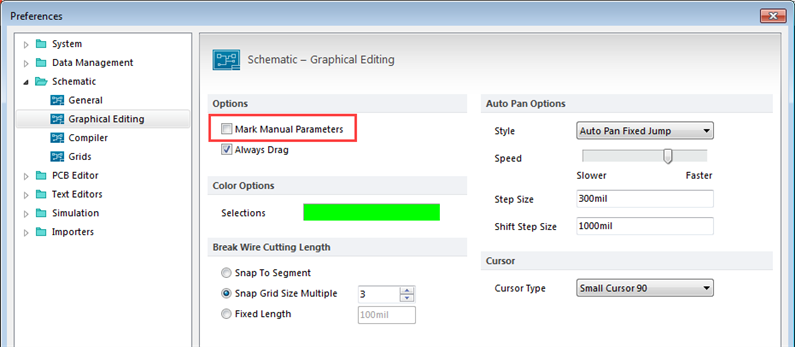

This could be the Mark Manual Parameters option. Click File > System Preferences and check the dialog.
Cancel
Vote Up 0 Vote Down

Cancel
0 jimolson over 6 years ago in reply to e14softwareuk

Thanks again, Peter, for your quick reply. Another instance of my "not being in Kansas (AD17) anymore" as Dorothy once said.

I would love to have been a fly on the wall during Altium staff meetings when CS development was road-mapped. The KISS folks were outvoted.

Jim Olson
Indianapolis, IN US
Cancel
Vote Up +1 Vote Down

Cancel
0 e14softwareuk over 6 years ago in reply to jimolson

jimolson wrote:

I would love to have been a fly on the wall during Altium staff meetings when CS development was road-mapped. The KISS folks were outvoted.

Jim Olson
Indianapolis, IN US
Love the comment
