FX10 & FX11 0.5mm Pitch Board-to-board Connectors - 10+ Gbps

Miniaturisation is no longer the only goal of some  electronic design engineers, as the operating speeds for electronic equipment  increase, so do the demands put on the interconnect. Engineers may well be faced  with the tough job of finding a shielded, matched impedance, high pin count  connector system. This is a trend that has been anticipated by Hirose, who have  developed a completely new range of PCB connectors that can stack at 2.0 to  5.0mm.

Hirose’s FX10 & FX11 connectors have been  designed for high-speed transmission and have matched impedance. The contact  pitch of the signal contacts is 0.5mm, with the ground contacts on a 0.75mm  pitch. The grounding contacts are on a 10:1 ratio all around the connector,  which ensures consistently low crosstalk.

The contacts used in these connectors are gold  plated and have been designed to give a contact wipe of 1.1mm for FX10 and  0.55mm for FX11. This, along with a contact designed to eliminate flux wicking  onto the contact area during soldering, ensures total reliability.

The FX10 & FX11 connectors are surface mounted  and feature shrouded metal fitting that can be soldered onto the PCB to give  additional strength to the connector, without using any extra valuable PCB real  estate. Headers & receptacles can be specified with or without guideposts, with  all sizes being available on tape and reel packaging to facilitate automatic  assembly.


Features:
  • Low Profile Design. The board to board mating  height of 2mm, 2.5mm and 3mm suits smaller, thinner case designs.
  • Improved Transmission Efficiency Between Boards  Transmission characteristics have been improved through a design that fixes  ground plates to both sides of the header and receptacle.

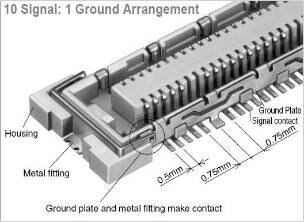

  • 10 Signal:1 Ground Arrangement. Signal and  ground are arranged in a ratio of 10:1 with the ground plate SMT connected to  the board. The ground stability achieved serves to reduce noise.
  • Metal Fittings for Added Solder Weld Strength  Metal fittings provide greater adhesion to the board, protecting against  peeling.The unique connector design provides a connection between the fitting  and the ground plate for a stronger ground.
  • Suited to High-Density Applications. The signal  contact pitch of 0.5mm produces a smaller connector utilizing less board area  for mounting.
  • Structure Prevents Solder Wicking. A solder gap  has been designed into the contact SMT portion to prevent solder wicking.
  • High contact reliability. Effective mating  length is 0.55mm (2mm height), 1mm(2.5mm, 3mm height) for signal contacts.
  • Optional Ground Plate An alternate style  without the ground plate is available. The space provided by the ground plate  removal has been filled
    with additional signal contacts.

Applications:
  • Notebook computers, PDA, and other miniature  electronic equipment.
Hirose Part#TypeGuideSignalGroundStack Height
FX10A-80P/8-SV(71)FX10A-80P/8-SV(71)HEADERYes80WAY8WAY4MM
FX10A-80P/8-SV1(71)FX10A-80P/8-SV1(71)HEADERYes80WAY8WAY5MM
FX10A-80S/8-SV(71)FX10A-80S/8-SV(71)RECEPTACLEYes80WAY8WAY4-5MM
FX10A-96P-SV(71)FX10A-96P-SV(71)HEADERYes96WAY4MM
FX10A-96P-SV1(71)FX10A-96P-SV1(71)HEADERYes96WAY5MM
FX10A-96S-SVFX10A-96S-SVRECEPTACLEYes96WAY4-5MM
FX10A-100P/10-SV(71)FX10A-100P/10-SV(71)HEADERYes100WAY10WAY4MM
FX10A-100P/10-SV1(71)FX10A-100P/10-SV1(71)HEADERYes100WAY10WAY5MM
FX10A-100S/10-SV(71)FX10A-100S/10-SV(71)RECEPTACLEYes100WAY10WAY4-5MM
FX10A-120P/12-SV(71)FX10A-120P/12-SV(71)HEADERYes120WAY12WAY4MM
FX10A-120P/12-SV1(71)FX10A-120P/12-SV1(71)HEADERYes120WAY12WAY5MM
FX10A-120P-SV(71)FX10A-120P-SV(71)HEADERYes120WAY4MM
FX10A-120P-SV1(71)FX10A-120P-SV1(71)HEADERYes120WAY5MM
FX10A-120S/12-SV(71)FX10A-120S/12-SV(71)RECEPTACLEYes120WAY12WAY4-5MM
FX10A-120S-SVFX10A-120S-SVRECEPTACLEYes120WAY4-5MM
FX10A-140P/14-SV(71)FX10A-140P/14-SV(71)HEADERYes140WAY14WAY4MM
FX10A-140P/14-SV1(71)FX10A-140P/14-SV1(71)HEADERYes140WAY14WAY5MM
FX10A-140S/14-SV(71)FX10A-140S/14-SV(71)RECEPTACLEYes140WAY14WAY4-5MM
FX10A-144P-SV(71)FX10A-144P-SV(71)HEADERYes144WAY4MM
FX10A-144P-SV1(71)FX10A-144P-SV1(71)HEADERYes144WAY5MM
FX10A-144S-SVFX10A-144S-SVRECEPTACLEYes144WAY4-5MM
FX10A-168P-SV(71)FX10A-168P-SV(71)HEADERYes168WAY4MM
FX10A-168P-SV1(71)FX10A-168P-SV1(71)HEADERYes168WAY5MM
FX10A-168S-SVFX10A-168S-SVRECEPTACLEYes168WAY4-5MM
Hirose Part#TypeGuideSignalGroundStack Height
FX11A-60P/6-SV(71)FX11A-60P/6-SV(71)HEADERYes60WAY6WAY2.5MM
FX11A-60P/6-SV0.5(71)FX11A-60P/6-SV0.5(71)HEADERYes60WAY6WAY3MM
FX11A-60S/6-SV(71)FX11A-60S/6-SV(71)RECEPTACLEYes60WAY6WAY2.5-3MM
FX11LA-60P/6-SV(71)FX11LA-60P/6-SV(71)HEADERYes60WAY6WAY2MM
FX11LA-60S/6-SV(71)FX11LA-60S/6-SV(71)RECEPTACLEYes60WAY6WAY2MM
FX11LA-68P-SVFX11LA-68P-SVHEADERYes68WAY2MM

FX11LA-68S-SVFX11LA-68S-SV

RECEPTACLEYes68WAY2MM
FX11A-80P/8-SV(71)FX11A-80P/8-SV(71)HEADERYes80WAY8WAY2.5MM
FX11A-80P/8-SV0.5(71)FX11A-80P/8-SV0.5(71)HEADERYes80WAY8WAY3MM
FX11B-80P-SVFX11B-80P-SVHEADERNo80WAY2.5MM
FX11B-80P-SV0.5FX11B-80P-SV0.5HEADERNo80WAY3MM
FX11B-80S-SVFX11B-80S-SVRECEPTACLENo80WAY2.5-3MM
FX11A-80S/8-SV(71)FX11A-80S/8-SV(71)RECEPTACLEYes80WAY8WAY2.5-3MM
FX11LA-80P/8-SV(71)FX11LA-80P/8-SV(71)HEADERYes80WAY8WAY2MM
FX11LA-80S/8-SV(71)FX11LA-80S/8-SV(71)RECEPTACLEYes80WAY8WAY2MM
FX11LA-92P-SVFX11LA-92P-SVHEADERYes92WAY2MM
FX11LA-92S-SVFX11LA-92S-SVRECEPTACLEYes92WAY2MM
FX11A-100P/10-SV(71)FX11A-100P/10-SV(71)HEADERYes100WAY10WAY2.5MM
FX11A-100P/10-SV0.5(71)FX11A-100P/10-SV0.5(71)HEADERYes100WAY10WAY3MM
FX11A-100P-SVFX11A-100P-SVHEADERYes100WAY2.5MM
FX11A-100P-SV0.5FX11A-100P-SV0.5HEADERYes100WAY3MM
FX11A-100S/10-SV(71)FX11A-100S/10-SV(71)RECEPTACLEYes100WAY10WAY2.5-3MM
FX11A-100S-SVFX11A-100S-SVRECEPTACLEYes100WAY2.5-3MM
FX11LA-100P/10-SV(71)FX11LA-100P/10-SV(71)HEADERYes100WAY10WAY2MM
FX11LA-100S/10-SV(71)FX11LA-100S/10-SV(71)RECEPTACLEYes100WAY10WAY2MM
FX11LA-116P-SVFX11LA-116P-SVHEADERYes116WAY2MM
FX11LA-116S-SVFX11LA-116S-SVRECEPTACLEYes116WAY2MM
FX11A-120P/12-SV0.5(71)FX11A-120P/12-SV0.5(71)HEADERYes120WAY12WAY3MM
FX11A-120S/12-SV(71)FX11A-120S/12-SV(71)RECEPTACLEYes120WAY12WAY2.5-3MM
FX11LA-120P/12-SV(71)FX11LA-120P/12-SV(71)HEADERYes120WAY12WAY2MM
FX11LA-120S/12-SV(71)FX11LA-120S/12-SV(71)RECEPTACLEYes120WAY12WAY2MM
FX11LA-140P-SVFX11LA-140P-SVHEADERYes140WAY2MM
FX11LA-140S-SVFX11LA-140S-SVRECEPTACLEYes140WAY2MM


Click  here to view the FX10 datasheet

Click here  to view the FX11 datasheet
