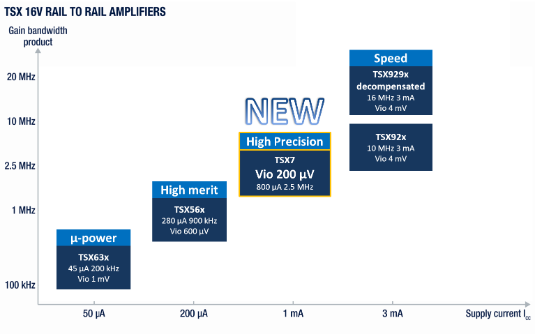

The TSX Series consists into various combinations of power consumption and gain bandwidth, allowing to get the best performance for the appropriate accuracy.

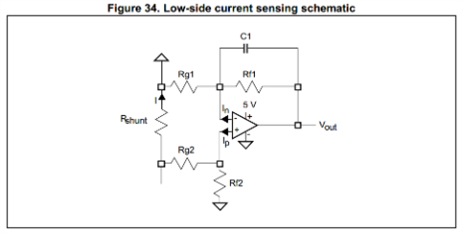

Fig 3.4 Typical application schematic: Low side current measurement
(Rg1=Rg2 and Rf1=Rf2)

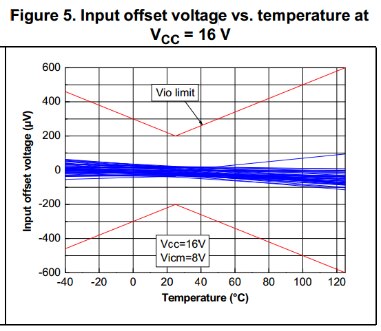

Fig 5. TSX711 high precision : Offset drift in Temperature
Features
- Operating range: 3 to 16 V
- Higher ESD protection: 4 kV
- Low consumption down to 60 µA max (TSX6)
- Lower offset VIO down to 200 µV max (TSX7)
- High GBW up to 16 MHz max (TSX9)
- Space saving DFN8 2 x 2 mm for dual op amps
- Rail-to-rail input and output
- Automotive grade availability
Applications
- Automotive ECU (Electronic Control Unit)
- Power converters
- Inverters
- Motor control
- Telecom infrastructures
